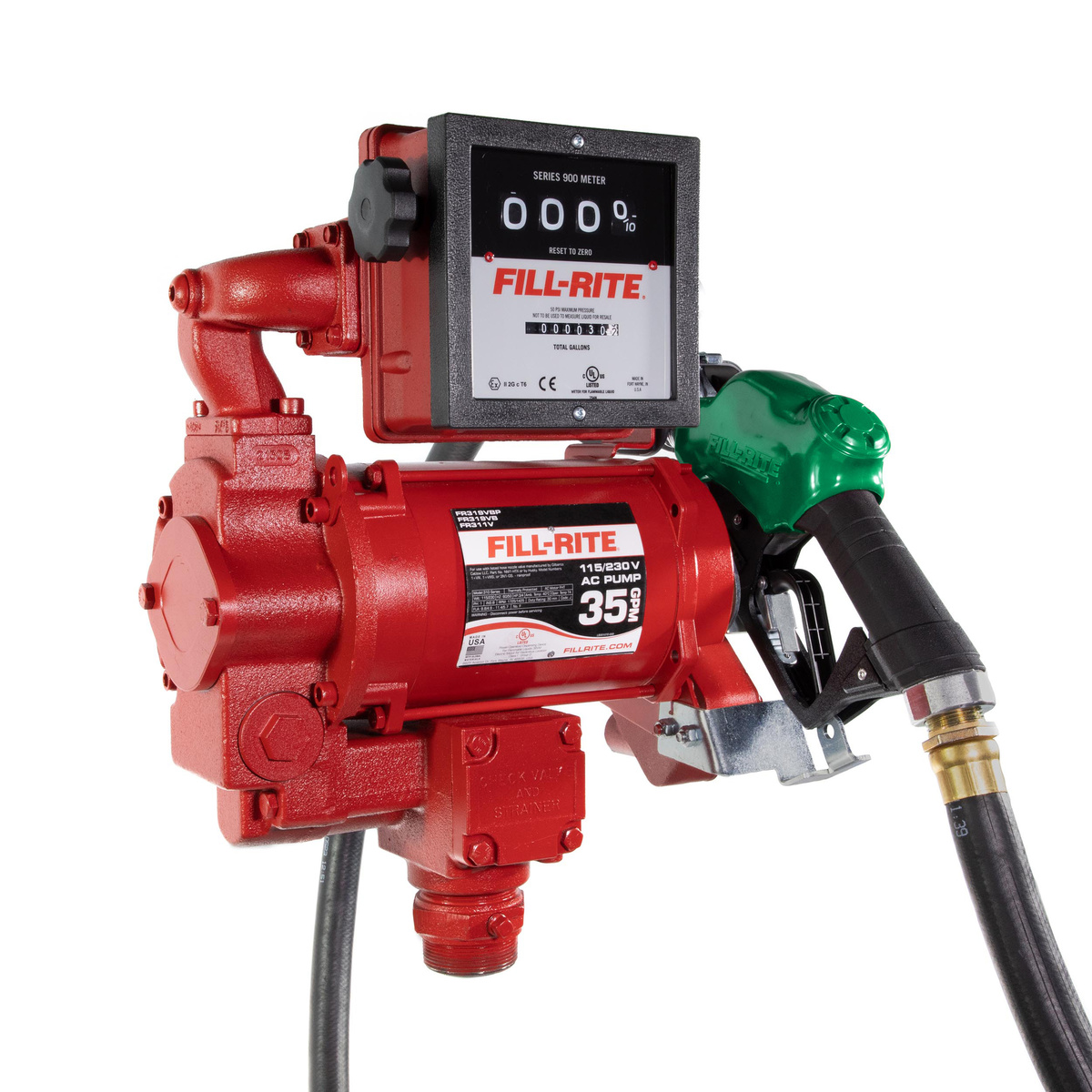

    115/230 Volt Diesel Fuel Pump with Mechanical Meter, 35 GPM, with Hose & Automatic Nozzle

    300 Series · Ultra Hi-Flow · Heavy Duty · UL Listed

    Fill-rite's FR300 Series are Fill-rite's highest volume AC fuel transfer pumps – designed for the most demanding of fuel handling applications. Ideal for fueling heavy machinery or aboveground storage tanks. These 115/230-volt AC fuel pumps are built for long-lasting service under demanding operating conditions. For use with Gasoline & Diesel fuels. Max flowrate (at open) is 35 GPM.

    The FR311VB fuel pump features a 1-1/2" FPT inlet x 1" FPT outlet and a 3/4 Hp, 115/230-volt explosion-proof motor with thermal overload protection. The FR311VB also includes a 901C Mechanical Meter, accurate to +/- 2% with large display & seven-digit non-resettable totalizer. Pump kit comes complete with a 1" ultra hi-flow automatic diesel nozzle (Red) and 1" x 18' fuel hose (with static wire), bung adapter, and a built-in check valve and 40-mesh strainer. Suction pipe not included and sold separately.

    Specifications:
    • Type: Positive Displacement (Rotary Vane)
    • Pump Body Material: Cast Iron
    • Display Type: 4-Digit Mechanical
    • Inlet/Outlet Size: 1-1/2" FPT / 1" FPT
    • Mounting Size/Type: 2" MPT Bung
    • Max Flowrate: 35 GPM
    • Duty Cycle: 30 Mins.
    • Motor Power: 3/4 HP
    • Voltage: 115/230 Volt AC
    • Max Amp Draw: 15 Amps
    • Max Operating/Discharge Pressure: 26 PSI
    • Operating Temperature Range: -17° to 105° F
    • Suction Lift: 8'
    • Warranty: 2 Year Limited Lifetime – 1 Year on Accessories

    Viton® is a registered trademark of DuPont Performance Elastomers
    Manufacturer: Fill-Rite - Sotera
    SKU: FRFR311VB
    VIEW CATALOG PAGE E0277
    $2,023.00 / EA
