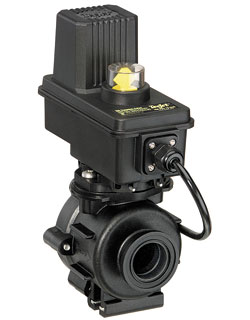

12 Volt DC 2-Way Ball Valve, Remote Control, 1" Flange, with DIN Connector

356 Series

"Trunion" Ball Design is supported by bearings at top & bottom; this maintains precise alignment which assists in wear life. Valve stem & ball are 316 stainless for superior wear & corrosion-resistance; All plastic parts are polypropylene and external metal trim is 303 stainless; All metal gears for added strength.

• Stainless mounting foot.
• Viton® O-rings & carbon-filled Teflon seal.
• High Flow Rates: 100 GPM at 5 PSI drop.
• 1-1/4" Valve with 1" Banjo Style Flanges.
• 0.6 second response time from full open to full close (other speeds available).
• 150 PSI maximum pressure.
• Draws 2 amps at 13.8 volts DC.

Available with DIN connector with double seal or jacketed cable with weatherproof grip cord (3 wire; 20" long; other cable lengths available). Positively switched.

Manufacturer:

SKU: SS356BEC-D

VIEW CATALOG PAGE E0382

$305.00 / EA
