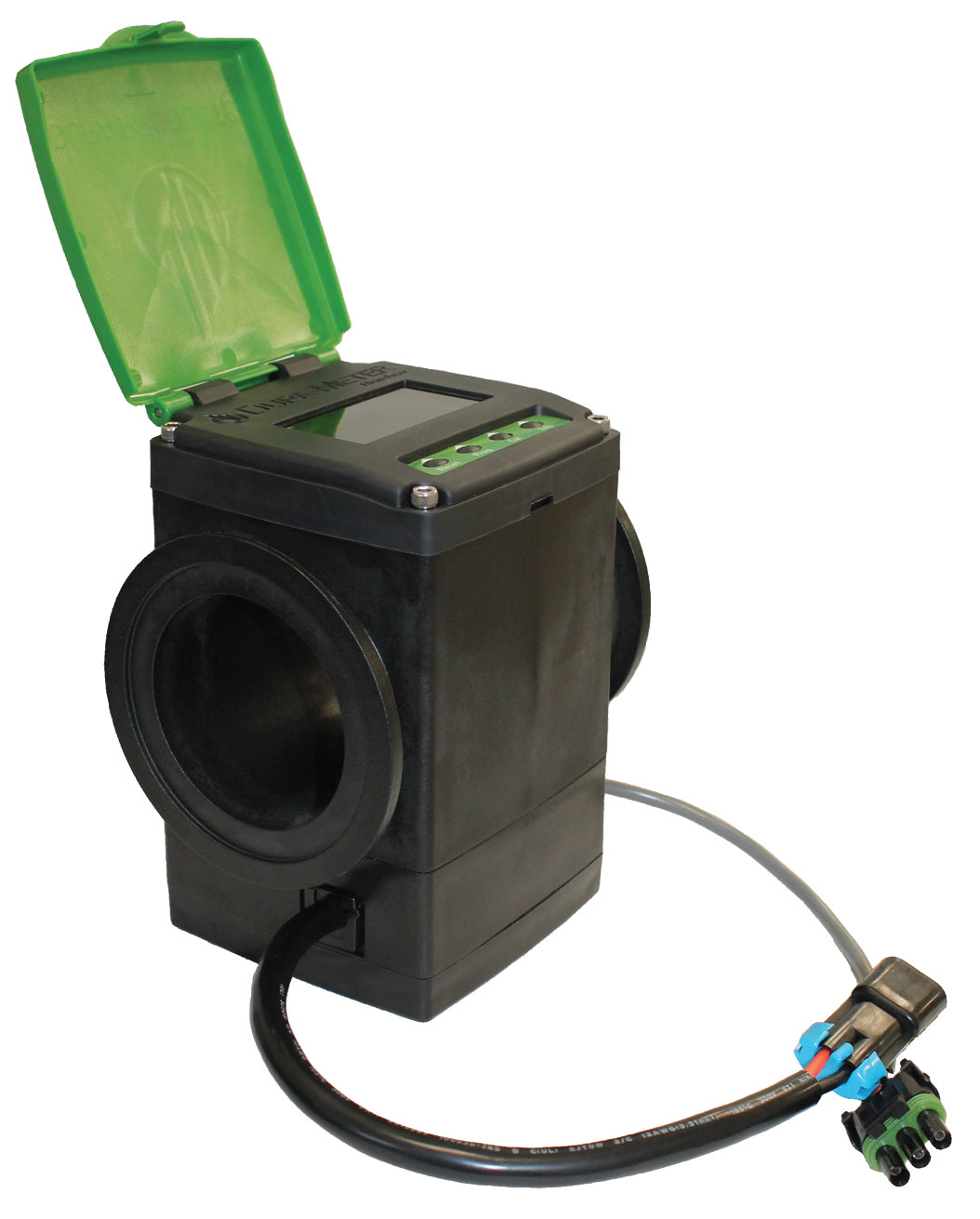

DURA 3" Auto-Batch High-Flow Meters, High Flow, 3" M300 Flanges, EPDM

FAST - SIMPLE - SAFE

The Dura Auto-Batch High-Flow Meter is an automated meter for easy and efficient metering of fluids. Enter the amount you want transferred, turn on your transfer pump, and press Start. The meter will open an electric ball valve. When the pre-set amount is reached, the meter will automatically close the valve. An optional plumbing kit provides a relief valve to bypass fluid back to the source tank when the electric valve is closed.

2” & 3” High-Flow Auto-Batch™ Features:

Controls carrier flow using 12-volt DC electric ball valve (sold separately)
Easily select manual or automatic operation
Returns to last volume amount dispensed for easy repeatable batching
Displays message when batch is completed; backlit display
Optional relief valve plumbing kit for use with electric valve
Banjo® EVX® 2” or 3” Valves available for tank bypass system
Intuitive menu-driven backlit display
Accuracy +/- 0.5% with manual field calibration; (2) 9V batteries
Full port with industry standard manifold M220 or M300 flanges
Works with non-conductive materials
150 PSI rating; 32° F to 140° F
100% moisture-sealed circuitry
Ability to save up to five manual calibrations
Option to display batch volume, total volume, and flow rate
Volume measured can be displayed in Liters or Gallons
Faceplate can be rotated in 90 degree increments
Includes a 2-year Warranty & Maintenance Program
2” 40 - 300 GPM
3” 80 - 700 GPM

Manufacturer:

SKU: DPAB-HFM3E

VIEW CATALOG PAGE E1086

$2,479.00 / EA
