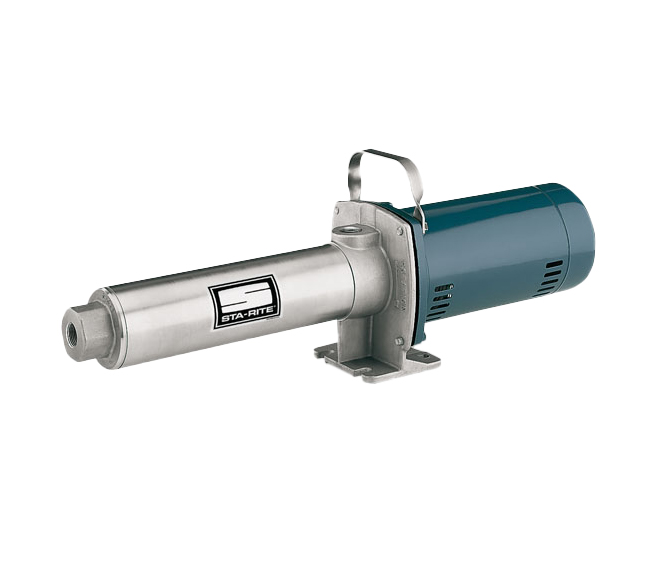

Booster Pump, 1" FPT Stainless Ports, 3 hp, 3 ph Motor, 22 GPM @ 185 PSI

Sta-Rite HP and HPS Pressure Booster Pumps are ideal for increasing city water pressures or tank water supplies to higher pressure requirements (pressures to 315 PSI are available).

Common applications are Spot-Free rinse transfer, Reverse osmosis production, General purpose pumping, Car and Truck Wash, HVAC, Washdown and more.

HP Series Pumps have cast iron inlet and discharge fittings.
HPS Series have stainless steel inlet and discharge.
All models feature 304SS pump shell and shafts
Acetal impellers
Polycarbonate diffusers
Buna-N O-rings
Carbon/Ceramic Buna-N seals
Maximum inlet pressure is 80 PSI
Suction lifts to 15'
Maximum temperature is 145? F
All motors are standard ODP but TEFC are available.
Single phase motors from 1/2 HP to 1-1/2 HP are 115/230 volt, Three phase motors are 208/230/460 volt.
2 HP and 3 HP motors are 230 volt single phase, or 208/230/460 volt three phase.
All models are UL and CSA rated.

*Pressure/Flow ratings shown are in addition to incoming water pressures up to 80 PSI. Example: 40 PSI city water pressure with 180 PSI booster pressure equals 220 PSI discharge pressure.

Manufacturer:

SKU: SAHPS20H3

VIEW CATALOG PAGE E0056

$2,343.00 / EA

Qty:

i h

Booster Pump, 1" FPT Stainless Ports, 3 hp, 3 ph Motor, 22 GPM @ 185 PSI

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
