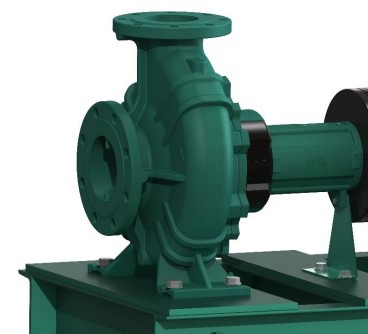

    Centrifugal Pumps, NL-HE Series

    The NL-HE end-suction centrifugal pump line from Wilo features a stout pump with solid efficiency ratings across the product line. The NL-HE line is available from 2" X 1-1/4" (5" Impeller) up to 8" X 6" (16" Impeller) Pump casings. Cataphoretic electro coating of all cast iron components help increase the pump lifespan. The coating process helps to fight against rust and corrosion. Pumps are fitted with a single mechanical seal (Viton®-FKM Carbon/Silicone Carbide).

    These 4-pole 1750RPM motor driven pump units are designed to transfer heavier fluids like liquid fertilizer. Pump units for water transfer are also available in EPDM fitted options. Dultmeier Sales is available for consultation on pump sizing for other solution transfer – Please call for details. All units come baseplate mounted and are ready for installation. Pump end only available.

    • Flanged Suction/Discharge Ports
    • 316SS Impelle
    • Improved Hydraulic Design
    • High Corrosion Resistance
    • Long Service Life
    • High-Efficiency
    • Viton®-FKM Carbon/Silicone Carbide Mechanical Seals
    • Viton®-FKM Housing Oring
    0Types Available
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 8.11IN SS Impeller, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 8.11IN SS Impeller, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 8.11IN SS Impeller, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE5X4X8.11-V
    VIEW CATALOG PAGE E1462
    $1,612.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 9.38IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 9.38IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 5IN X 4IN Flanged Ports, Class 125, 9.38IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE5X4X9.38-V
    VIEW CATALOG PAGE E1462
    $2,309.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 10.12IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 10.12IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 10.12IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE6X5X10.12-V
    VIEW CATALOG PAGE E1462
    $1,854.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 12.75IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 12.75IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 12.75IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE6X5X12.75-V
    VIEW CATALOG PAGE E1462
    $2,473.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 7.90IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 7.90IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 6IN X 5IN Flanged Ports, Class 125, 7.90IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE6X5X7.90-V
    VIEW CATALOG PAGE E1462
    $1,734.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 8IN X 6IN Flanged Ports, Class 125, 10.98IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 8IN X 6IN Flanged Ports, Class 125, 10.98IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    Centrifugal Pump, Pump Only, Pedestal Mount, Cast Iron, 8IN X 6IN Flanged Ports, Class 125, 10.98IN Impeller - 316SS, Viton Carbon/Sil-Carb Seal, Viton Housing Oring, 1750RPM
    SKU: WONLHE8X6X10.98-V
    VIEW CATALOG PAGE E1462
    $2,662.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
