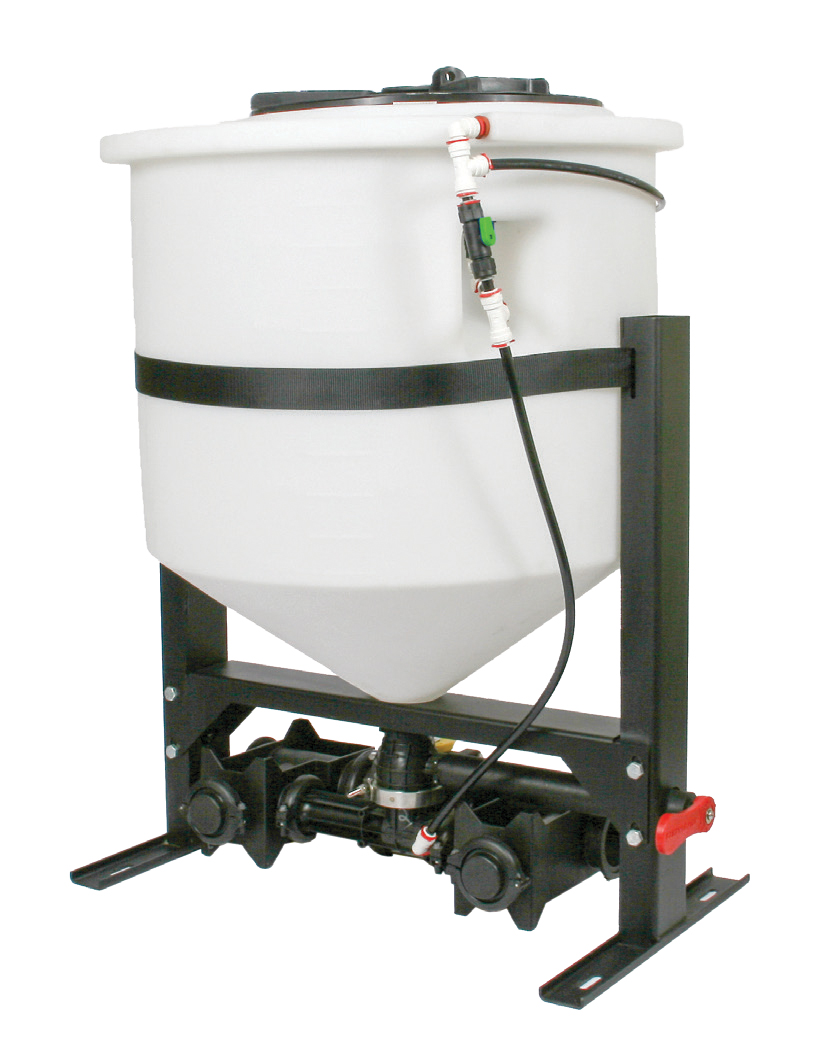

Cleanload™ Max Chemical Eductor, 60 Gallon Cleanload System, Low Pressure, High Flow with 3" Bypass with 16mm Eductor for Transfer Pump

Hypro Cleanload™ Max Chemical Eductors are large capacity eduction systems designed for safe, fast batch mixing and loading of both dry and liquid agriculture chemicals. Cleanload™ Max systems feature 40- or 60-gallon cone-bottom tanks that fully drain, ensuring zero product waste. Tanks have a 20:1 mix ratio ideal for use with 800- or 1200-gallon sprayers. Systems include either 2" or 3" bypass eductor plumbing that allows for direct filling of sprayer tank when not educting chemicals. A CycloRinse™ and ProClean bottle rinse station prevent cross contamination of chemicals and product waste. Cleanload™ Max units are also compatible with Chem-Blade knife systems.

Cleanload™ chemical eductors are available in multiple eductor sizes depending on the application:

Use 11mm Eductor for Onboard Sprayers, High Pressure, High Flow
Use 16mm Eductor for Transfer Pumps, Low Pressure, High Flow

Standard Features:

Durable, efficient & safe design for batch mixing applications
Large-capacity 40- or 60-gallon, full-draining, cone-bottom eductor tanks (20:1 ratio for 800- or 1200-gallon sprayers)
Useable with both dry and liquid chemicals
2" or 3" bypass plumbing
CycloRinse™ & ProClean bottle rinses
Chem-Blade compatible (not included)

Manufacturer:

SKU: HY3378-1660-3BYP

VIEW CATALOG PAGE E1164

$1,979.00 / EA
