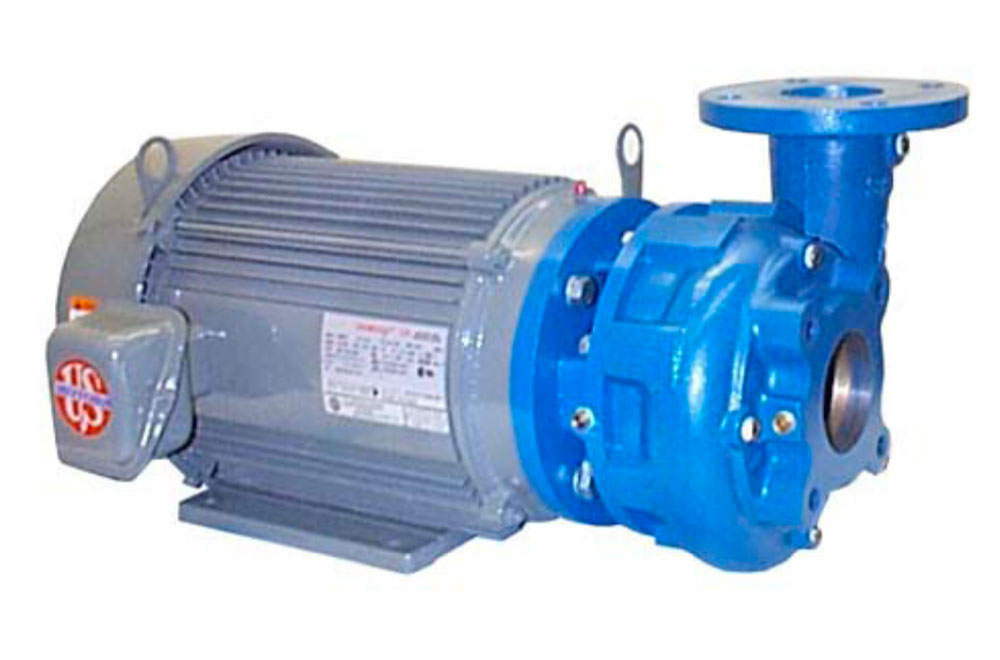

    End Suction Centrifugal Pump, Model 56F, 3" x 3", 10HP, 3 PH, 5.13" Impeller, TEFC Motor, 3500 RPM, Buna-Carbon/Ceramic Seal, 208-230/460V

    The Scot Pump Model 56 is an absolute workhorse. It is used in an extremely wide variety of applications that call for an end suction centrifugal pump. Whether the application calls for simply water, a water-glycol solution or heavier products - this centrifugal pump will get the job done. Big things come in small packages. Many customers question the size of this pump when they first get it but once it's plumbed in and running – all questions go out the door.

    Scot Pump has been in the game a long time and this pump is a staple that speaks volumes to the type of quality that leaves their doors. Built rugged and built tough - this pump will no doubt impress you and your operation.

    Industrial Pumps come Standard Fitted *Not Compatible with Fertilizer or Aggressive Ag Chemicals – Call for Chemical Compatibility Check* See Scot Pump for Ag Pumps

    Features:
    • Port Size: 3" x 3" ANSI Flange - See Model 56F for Flange Ports
    • Max PSI: 78
    • Max Flow: 600 GPM
    • Metallurgy: Cast Iron
    • Impeller Size: 6.5" Max
    • Impeller Type: Enclosed
    • Mechanical Seal: Type 21 Available in Buna, Viton or EPDM
    • Motor Phase: 1PH or 3PH
    • Motor Hz: 60Hz
    • Motor Frame: JM
    • RPM: 3500
    • HP: 7.5 - 30 HP
    • Motor Options: ODP, TEFC, Explosion Proof
    • Motor Voltage: 230/460V, 200V, 575V


    Manufacturer: Scot Pump Industrial Pumps
    SKU: SC3091K100WPE
    $4,415.00 / EA
