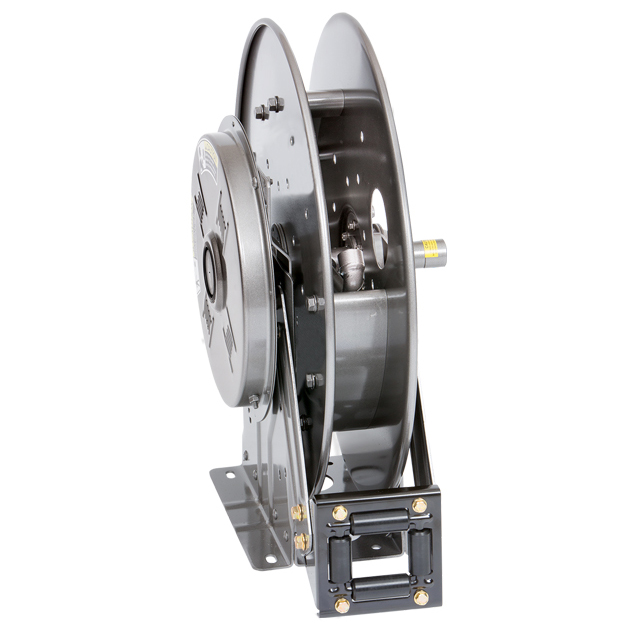

Grease Hose Reel, N515-19-20J H10M Series Spring Rewind with SAE 100 R2 Type AT hose (1/4" x 50 ft.), and HS-3 hose stop installed. 5000 PSI

Hannay Reels N500 Series grease hose reels are heavy-duty hose reels built to handle a wide range of industrial applications, including chassis grease, hydraulics, and air and water applications. N500 grease hose reels are built from heavy-duty steel and feature a compact frame and narrow base for tight installation spaces. A non-sparking ratchet assembly protects against errant fire hazards while a declutching arbor prevents damage from reverse winding. This N500 spring rewind hose reel is rated to handle 50' of 1/4" I.D. hose. Grease hose reels are rated to 5000 PSI.

Model 45-11 (N515-19-20J H10M) grease hose reel includes 1/4" FPT inlet/outlet swivels, a 50' of 1/4" of SAE 100 R2 Type AT hose, and a HS-3 hose stop.

Standard Features:

High pressure spring rewind reel with 1/4" I.D. hose (50' capacity)
Compact frame and narrow base
Non sparking ratchet assembly
Declutching arbor to prevent damage from reverse winding
Standard 1/4" FPT inlet and outlet (3/8" FPT threads are optional and must be specified)
4-way roller assembly
Constant Tension is available, please inquire

Manufacturer:

SKU: HN45-11

VIEW CATALOG PAGE E0613

$772.00 / EA
