    Helix Vertical Multistage Centrifugal Pumps, Models V110 - V270

    The Helix Vertical Multistage Centrifugal Pumps are designed to serve a wide variety of markets and are used in applications such as water supply and pressure boosting, industrial circulation systems, water processing, water cooling circulation systems, washing systems and irrigation. For multi-pump systems see CO-Helix.

    Features:
    • Non-self-priming, high pressure, inline connections
    • User-friendly "X-Seal" cartridge mechanical seal which enables quick and easy maintenance time by up to 70%
    • Standard EISA-compliant TEFC motors
    • Available with integrated frequency converter and electronically commutated (EC) motor for enhanced energy efficiency
    • Floating Flanges for easy installation

    * Trimmed Impellers."-H" Suffix Denotes High Pressure Model. Model Number Denotes GPM at Best Efficient Point.
    0Types Available

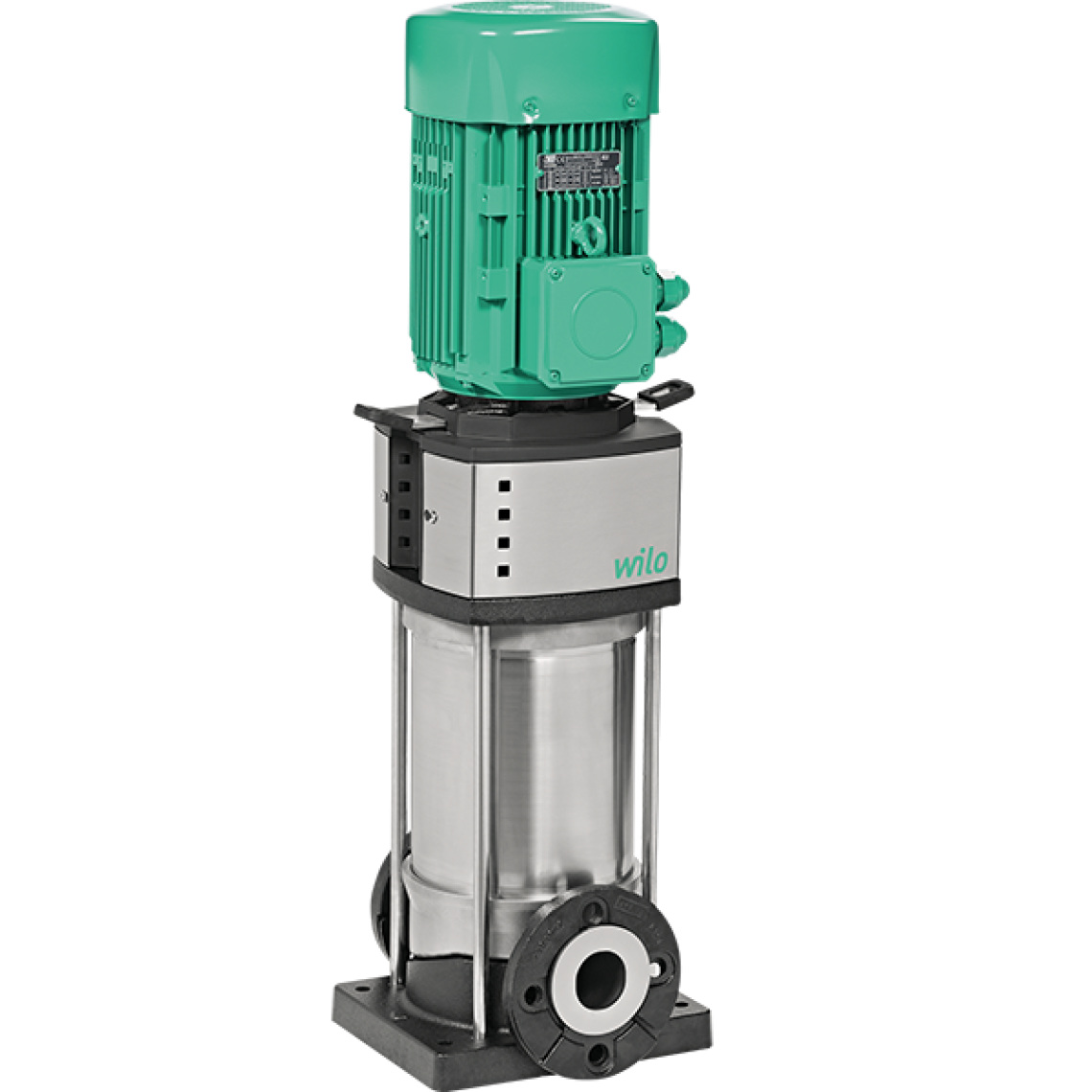

    Picture of Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 110 GPM @ 130 PSI, 208-230/460V
    Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 110 GPM @ 130 PSI, 208-230/460V
    Centrifugal Pump, Vertical Multistage, Helix V 110-05, 304SS, 5 Stage, 3 Trimmed Impellers, 2IN ANSI 300# Flanges, 15HP, 3PH, 3500 RPM, 208-230/460V, TEFC Motor
    SKU: WO2700869
    VIEW CATALOG PAGE E3524
    $4,531.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 120 GPM @ 140 PSI, 208-230/460V
    Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 120 GPM @ 140 PSI, 208-230/460V
    Centrifugal Pump, Vertical Multistage, Helix V 110-05, 304SS, 5 Stage, 2IN ANSI 300# Flanges, 15HP, 3PH, 3500 RPM, 208-230/460V, TEFC Motor
    SKU: WO2700870
    VIEW CATALOG PAGE E3524
    $5,748.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of *Helix Vertical Multistage Centrifugal Pump, Model V110, 7 Stages, EPDM, 20 HP, 2" Flange Size, 80 GPM @ 230 PSI, 208-230/460V
    *Helix Vertical Multistage Centrifugal Pump, Model V110, 7 Stages, EPDM, 20 HP, 2" Flange Size, 80 GPM @ 230 PSI, 208-230/460V
    Centrifugal Pump, Vertical Multistage, Helix V 110-07, 304SS, 7 Stage, 1 Trimmed Impeller, 2IN ANSI 300# Flanges, 20HP, 3PH, 3500 RPM, 208-230/460V, TEFC Motor - High Pressure Model
    SKU: WO2700873-H
    VIEW CATALOG PAGE E3524
    $6,589.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of *Helix Vertical Multistage Centrifugal Pump, Model V190, 3 Stages, EPDM, 20 HP, 2-1/2" Flange Size, 150 GPM @ 115 PSI, 208-230/460V
    *Helix Vertical Multistage Centrifugal Pump, Model V190, 3 Stages, EPDM, 20 HP, 2-1/2" Flange Size, 150 GPM @ 115 PSI, 208-230/460V
    Centrifugal Pump, Vertical Multistage, Helix V 190-03, 304SS, 2 Trimmed Impellers, 2-1/2IN ANSI 300# Flanges, 20HP, 3PH, 3500 RPM, 208-230/460V, TEFC Motor
    SKU: WO2700879
    VIEW CATALOG PAGE E3524
    $5,613.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of *Helix Vertical Multistage Centrifugal Pump, Model V270, 2 Stages, EPDM, 15 HP, 3" Flange Size, 225 GPM @ 65 PSI, 208-230/460V
    *Helix Vertical Multistage Centrifugal Pump, Model V270, 2 Stages, EPDM, 15 HP, 3" Flange Size, 225 GPM @ 65 PSI, 208-230/460V
    Centrifugal Pump, Vertical Multistage, Helix V 270-02, 304SS, 2 Stage, 2 Trimmed Impellers, 3IN ANSI 300# Flanges, 15HP, 3PH, 3500 RPM, 208-230/460V, TEFC Motor
    SKU: WO2700884
    VIEW CATALOG PAGE E3524
    $5,252.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 75 GPM @ 150 PSI , 575V
    Helix Vertical Multistage Centrifugal Pump, Model V110, 5 Stages, EPDM, 15 HP, 2" Flange Size, 75 GPM @ 150 PSI , 575V
    Centrifugal Pump, Vertical Multistage, Helix V 110-05, 304SS, 2IN ANSI 300# Flanges, 15HP, 3PH, 3500 RPM, 575V, TEFC Motor
    SKU: WO2700894
    VIEW CATALOG PAGE E3524
    $5,511.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Picture of *Helix Vertical Multistage Centrifugal Pump, Model V190, 3 Stages, EPDM, 20 HP, 2-1/2" Flange Size, 150 GPM @ 115 PSI, 575V
    *Helix Vertical Multistage Centrifugal Pump, Model V190, 3 Stages, EPDM, 20 HP, 2-1/2" Flange Size, 150 GPM @ 115 PSI, 575V
    Centrifugal Pump, Vertical Multistage, Helix V 190-03, 3 Stage, 2 Trimmed Impellers, 2-1/2IN ANSI 300# Flanges, 20HP, 3PH, 3500 RPM, 575V, TEFC Motor
    SKU: WO2700903
    VIEW CATALOG PAGE E3524
    $5,871.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Additional Information

    Technical Specifications:

    • NSF 61 Certified
    • Power Connections: 3 PH –230/460/575V
    • Fluid Temperature Range: 4°F to 248°F
    • Pressure Range: 232 PSI for Normal Models to 362 PSI for High Pressure Models
    • 304 Stainless Steel Construction & 8" Impeller Diameter
    • Max Flow Rate: 380 GPM
    • Max Head: 800 ft
    • EPDM Seal Standard (FKM Available)

    • TEFC Motors Standard (ODP Available upon request)
    • 250# Stainless Steel ANSI Split Flange Connections
    • Tungsten Carbide/Ceramic Bearing
    • Cast Iron, Cataphoresis Coated Volute
    • Stainless Steel Impeller, Shaft, Pressure Shroud & Pump Base
    • Split ANSI Flange Connections
    • TEFC Motors Standard (ODP Available upon request
