    Hose Reel, Spring Rewind, Standard 1" Inlet/Outlet (Inlet on Left Side & Top (TR)), 1,000 PSI

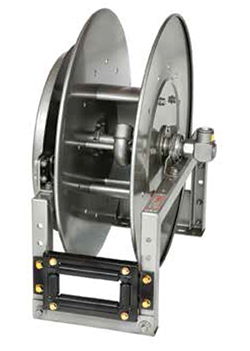

    Shown with Standard "SR" Position

    Single hose spring rewind hose reels are available as standard reels (Series 900) and narrow frame reels (N500, N700 & N800). The "N" Series hose reels have the same features as their conventional standard frame counterparts, except for a narrower frame and more compact mounting base. Hose I.D. can be 1/2" through 1" FPT. These narrow spring rewind hose reels are built from high-quality thick gauge steel and have a silver/gray enamel coating for added corrosion and wear protection. Hannay N800 reels handle product temperatures from -20° F to +225° F and pressures up to 1000 PSI. Other sizes, threads, and operating specifications are available.

    SERIES N800 reels handle hose from 1/2" through 1" I.D. Standard inlet is 1" FPT 90-degree swivel joint. Outlet riser is 1" FPT. For fuel dispensing, oils, air/water, and general industrial applications.

    OPTIONAL HOSE STOP: A hose stop should be used to prevent damage to rollers and nozzles and to permit adjustment of free hose length. HS-3 is 3" O.D. with a maximum 1-7/8" diameter hole size and HS-45 is 4-1/2" O.D. with a maximum 2-3/4" diameter hole size. Specify hose O.D. when ordering.

    Note: Also available with 304SS internals and special EPDM seals for DEF.

    Two Year Warranty on All Hannay Reels
    Other sizes and/or threads can be furnished for outlet risers when specified.
    All these reels handle product temperatures from -20 to +225 degrees F. Series N700 operates at 3000 PSI, Series 800 operates at 1000 PSI, and Series 900 operates at 600 PSI. Other operational temperatures / pressures can be furnished at extra cost. The standard color is silver/gray enamel.

    Also available in Stainless Steel.
    Manufacturer: Hannay Hose Reels
    SKU: HNN818-25-26BTR
    $950.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options

    Additional Information

    On standard spring rewind reels, the hose pays out from the bottom of the reel and to the left when reel is viewed from the swivel joint side. Hose rollers are supplied with all models and you must specify the roller position when you order. If roller position is not specified, reels will be shipped with rollers in position SR.
