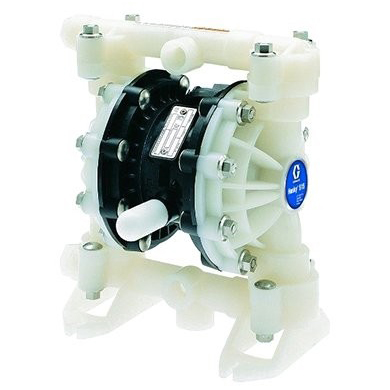

Husky 515 Series Air Operated Diaphragm Pump, 1/2" FPT Ports, Kynar Body, Teflon Diaphragm, 15 GPM Max

HUSKY 515 SERIES

Graco Air-driven Diaphragm Pumps are designed for a wide variety of chemicals, solutions, coatings, solvents, and abrasive fluids. A great pump option for tough, viscous products, these air-operated diaphragm pumps are capable of delivering up to 15 GPM with suction up to 12'. Pumps are run-dry safe, eliminating the worry of pump damage in the event of run dry operation. Each pump features a stall-free low pulsation air valve that provides a smooth, rapid changeover. Additionally, the bolt-through, seal-less fluid cover design eliminates leaks and makes Graco Husky 515 pumps safer and more reliable than other comparable pump models. The pumps are quiet, easy-to-service, and operate on as little as 20 PSI.

Model D55A11 features 1/2" FPT ports, a Teflon diaphragm and ball checks, and PVDF seats.

Technical Specs:

Type: Pneumatic (Air) Diaphragm Pump
Pump Body Material: Kynar
Diaphragm Material: Teflon
Inlet Size/Type: 1/2" FPT
Outlet Size/Type: 1/2" FPT
Air Inlet Port: 1/4" FPT
Solid Size: Up to 3/32"
Max GPM: 15 GPM
Max PSI: 100 PSI
Drive Type: Air
Max Fluid Temp: 225° F

Standard Features:

High strength Polypropylene or Kynar bodies with Hytrel, Santoprene, or Teflon diaphragms
Seal-less, leak-proof bolt-through design prevents fluid waste or spills
Pumps can run dry without damage
High corrosion and impact resistance
Air-drive operation eliminates electrical hazards
Lightweight and portable for versatile, multi-use applications
Easy-to-service—limited number of parts for fast repairs

Pumps up to 3" are available on request.

SKU: GYD55A11

VIEW CATALOG PAGE E1045

$1,533.00 / EA
