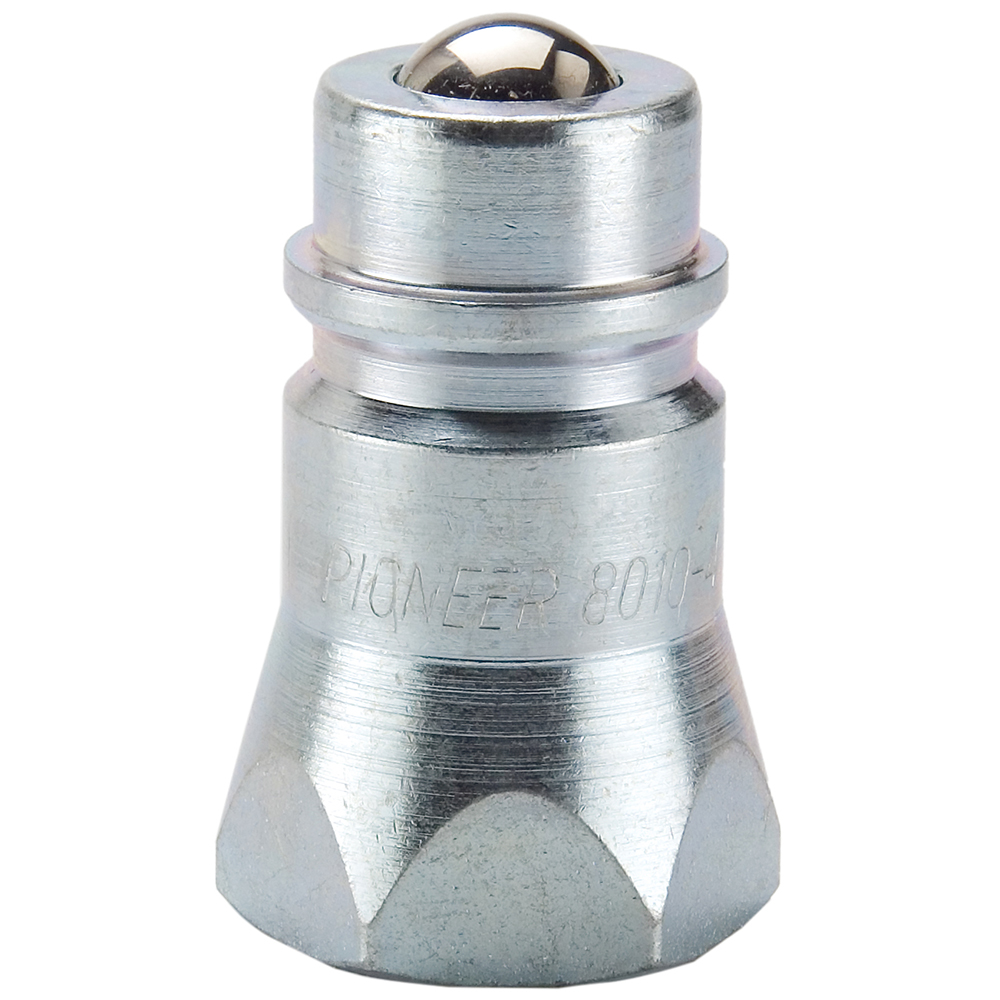

Male Tip For Pioneer Couplings, 1/2" FPT Tip Thread

These universal Pioneer quick connect hydraulic couplings are made to couple with various agricultural industry implement coupler standards, including those by Pioneer, John Deere, and International Harvester. The push connect design allows these Pioneer quick connect hose couplers to be quickly and easily connected for operation. The hydraulic quick connect tips can be connected one-handed when used with a coupler that is clamp mounted.

The Pioneer tips are constructed of heavy-duty steel that is built to withstand the rigors of prolonged operation in a wide variety of hydraulic applications. A perfect option for hydraulic hose setups on tractors, harvesters, implements, and agricultural equipment, tools, and attachments.

The Pioneer tip is compatible with a wide variety of hydraulic couplers. Couplers sold separately.

Technical Specs:

Type: Hydraulic nipple
Thread Size: 1/2"
Body Size: 1/2"
Valve Type: Ball
Body Material: Steel
Flow Rate: 12 GPM
Sleeve Type: Push-pull breakaway
Connection Type: FPT
Max Working Pressure: 3,000 PSI
Min Temp: -40° F
Max Temp: 250° F

* DR10008 Connects with all John Deere & Pioneer ISO5675 Couplers.
