Piston Pump, 10 GPM, 500 PSI, 2 Piston

For Grounds Care, Trees, Nurseries, Roadside, Pest Control & Golf Course

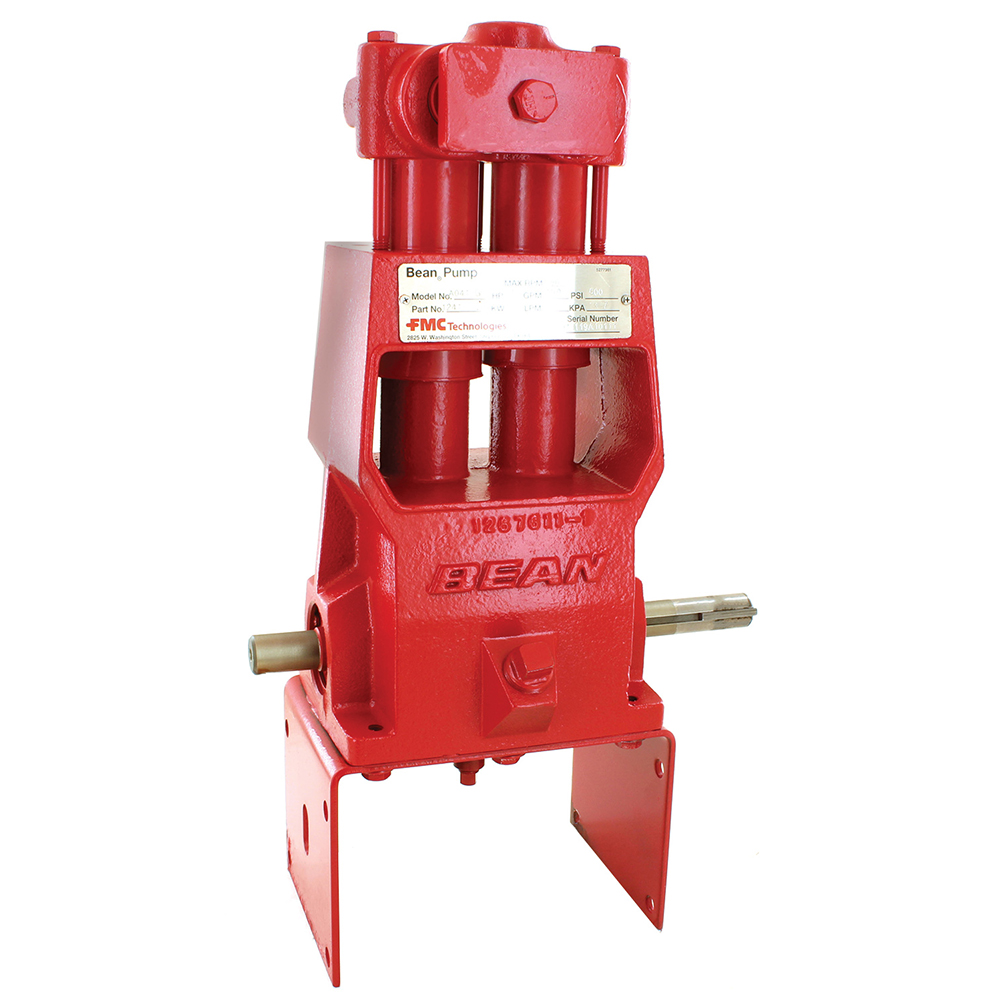

These rugged FMC John Bean R10 piston pumps are built for a wide variety of outdoor spraying and grounds care applications, from professional landscaping services to roadside spraying and golf course management. Bean R10 piston pumps are made with heavy-duty cast iron cases featuring hardened crankshafts and ball bearings. The main ball bearings are seated in oil, extending the life of the bearings and the pump. R10 cast iron pumps also include two, 1-5/8" non-wear ceramic cylinders and spring-loaded disc-type stainless valves designed to hold up to the rigors of the job.

With a reliable 10 GPM at 500 PSI performance, the two-piston John Bean R10 pump is a great pump solution for many agriculture, landscaping, turf, and tree care spraying applications!

Technical Specs:

Type: Piston (1-5/8")
Pump Body Material: Cast Iron
Inlet Size/Type: i.e. 1" FPT
Outlet Size/Type: 3/4" FPT
Max GPM: 10 GPM
Max PSI: 500 psi
Seal Material: Buna
Shaft Type: Solid
Shaft Size (OD Diam): 7/8"
Drive Type: Direct Drive Electric Motor/Gas Engine with gear reduction
Max RPM: 580 RPM (306 RPM Min)

SKU: BNR10

VIEW CATALOG PAGE E0724

$2,180.00 / EA
