Remote Controlled Shut-Off Panel

RSD-E

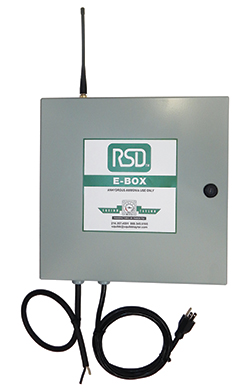

The RSD-E Remote Controlled Shut-Off Panel is the main component of your complete NH3 shut-off system. It includes a built in receiver and one handheld transmitter. It is normally installed near the storage tank and includes a NEMA 4 outdoor rated enclosure. Can be located up to 300 ft. from the handheld transmitters (through normal building walls) and up to 400 ft. in "line of sight" with no walls.

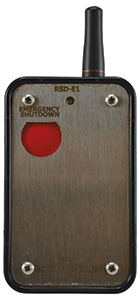

Includes a 115V power cord with plug. It also includes a 12 volt wire harness to supply the P810 shut off devices on each N550/N551 emergency shut off valve. This 12 volt harness can also be wired to the RSD-A box (air solenoid junction box) for use with P539A pneumatic controlled shut off devices. 15 Amp rating will close twenty-five P810 valve shut offs simultaneously. Fail safe design provides for positive shut-off. Can be used with up to (15) RSD-E1 handheld transmitters (one included).
Only for NH3 Use; Do Not Use with LPG storage systems or other systems storing flammable liquids.

Manufacturer:

SKU: STRSD-E

VIEW CATALOG PAGE E1113

$2,881.00 / EA

Qty:

i h

Remote Controlled Shut-Off Panel

RSD-E

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
