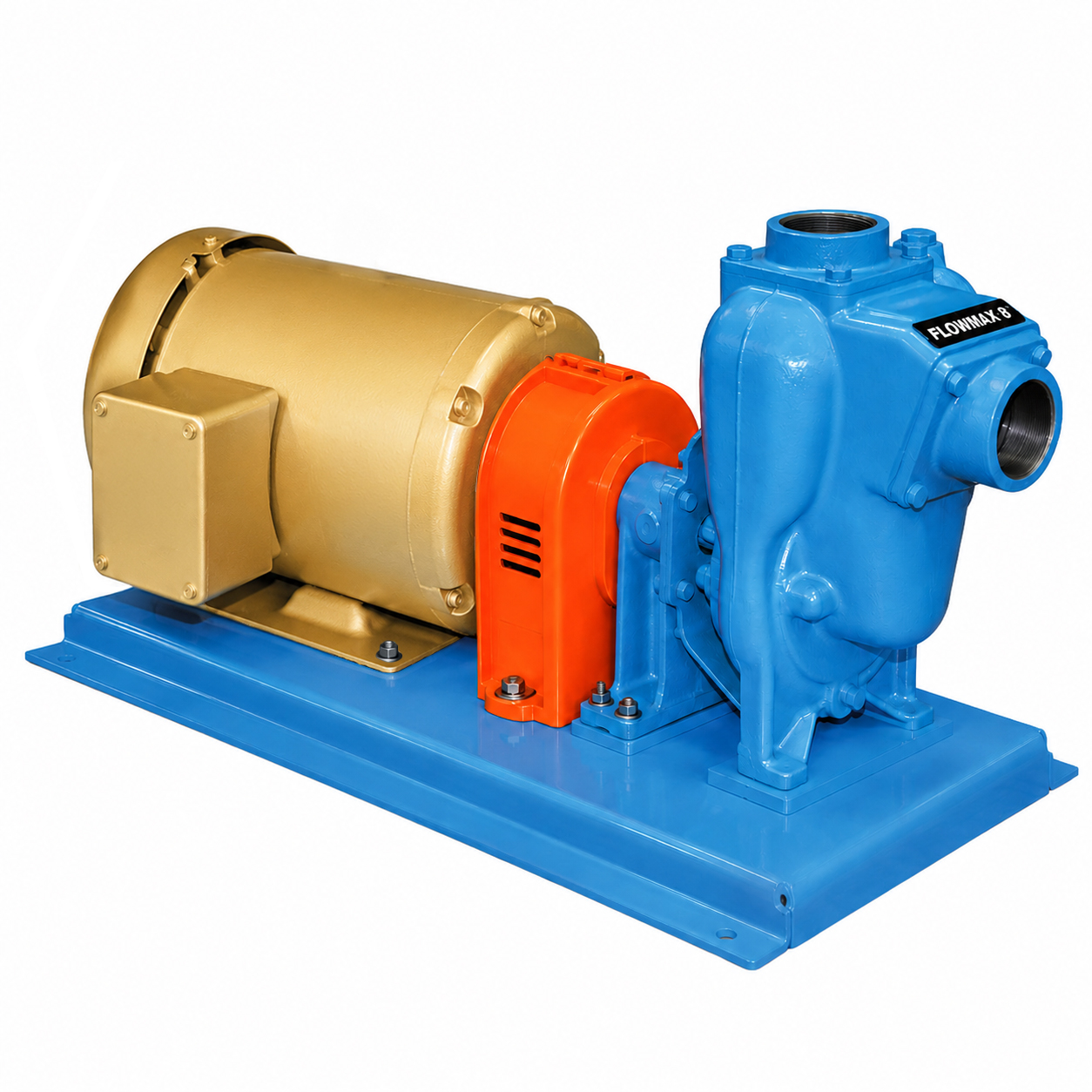

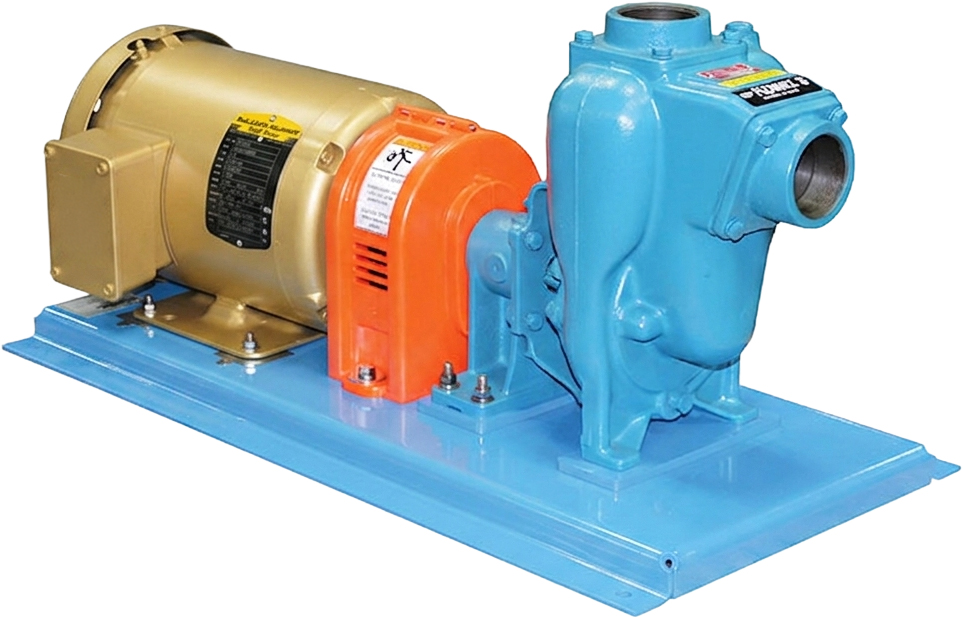

Self Priming Flomax 10 Centrifugal Pump / Motor Unit, Cast Iron, 215 Max. GPM, 210 GPM@20 PSI, 1.0 Max Spec. Grav., 2" Ports, 5 HP, 230 Volts, 1 PH, 5.5" Impeller Diam.

2"

Cast Iron Construction • Cast Iron Impeller
Stainless Steel Shaft Sleeve • Viton Mechanical Seals
Stainless Fasteners • TEFC Motors

These Self-Priming Centrifugal Pumps are mounted on a rigid steel base to permit long coupling to an electric motor. Long Coupling design allows a wider choice of motors in both horsepower and type of enclosure. A LoveJoy jaw type coupling with rubber spider and coupling guard are standard. "S-flex" spacer type couplings are also available.
Water=

8.33 lbs./Gal.=1.0 Specific Gravity
12 lb. Material=1.4 S.G.
14 lb. Material=1.7 S.G.

Manufacturer:

SKU: DUMP5010

VIEW CATALOG PAGE E0217

$3,419.00 / EA

Qty:

i h

Additional Information

Standard Pump units are of cast iron construction. Bronze, Aluminum, and stainless steel pumps are available on special request. All fasteners are stainless steel to reduce corrosion. Impellers are balanced and trimmed to insure non-overloading conditions. The standard mechanical seal is stainless steel, Viton®, carbon and ceramic which is self adjusting and corrosion resistant to handle many different liquids. Pump assemblies are fitted with heavy duty ball bearing pedestals for long life. (Pump, Base and coupling assemblies are available separately to fit existing standard NEMA motors.)

Viton® is a registered trademark of DuPont Performance Elastomers

Self Priming Flomax 10 Centrifugal Pump / Motor Unit, Cast Iron, 215 Max. GPM, 210 GPM@20 PSI, 1.0 Max Spec. Grav., 2" Ports, 5 HP, 230 Volts, 1 PH, 5.5" Impeller Diam.

2"

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
