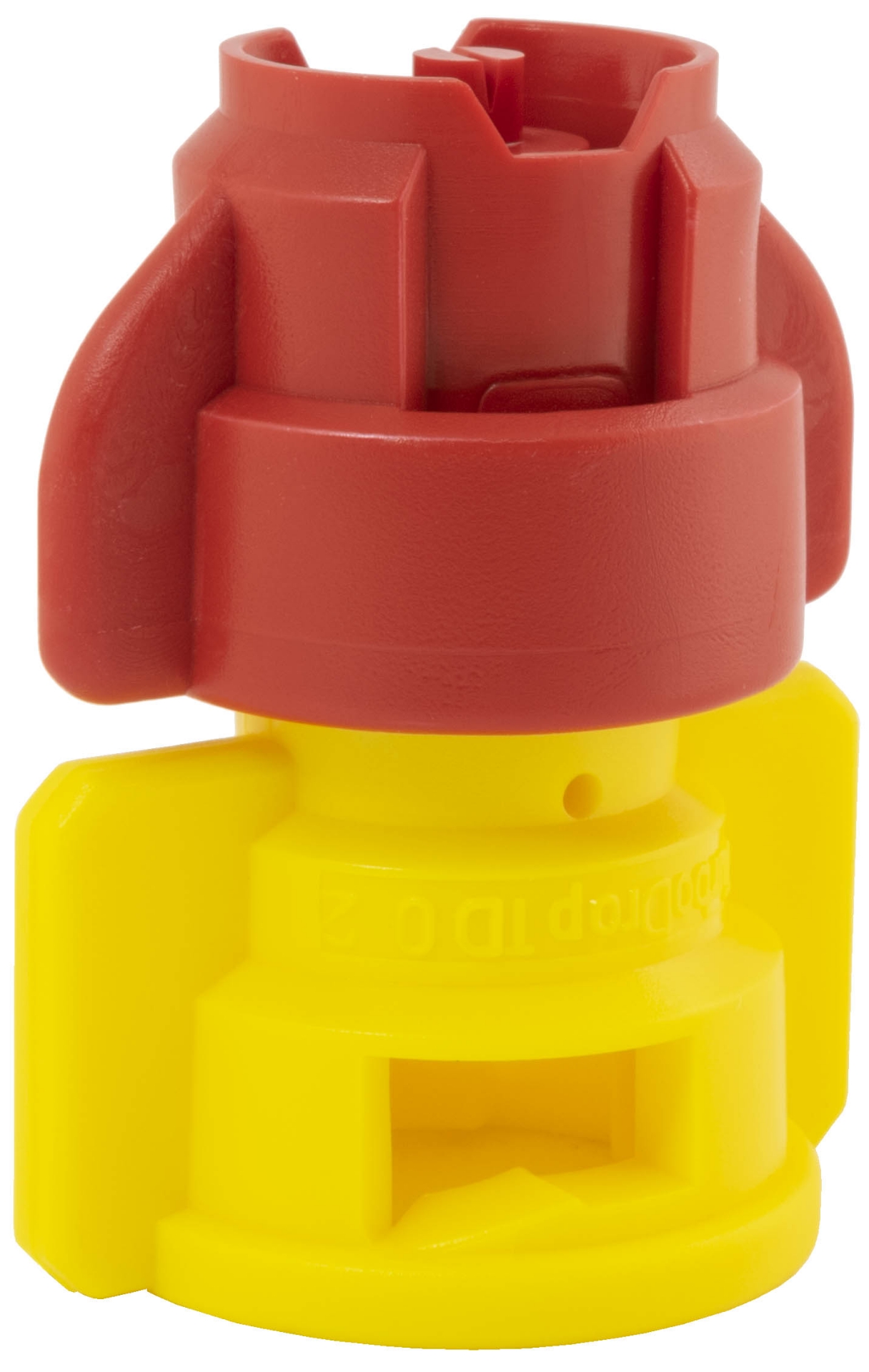

TurboDrop® XL Medium Pressure Spray Tip "D" Nozzle, 110°, 02 Orifice, Ceramic

Air Injection to Minimize Drift: TurboDrop® XL-D Nozzle, Coarser Droplets for Chemicals Requiring Maximum Drift Control

The D Version of the TurboDrop® XL Nozzles (TDXL-D) were designed with dicamba, 2, 4-D and glyphosate in mind, where a coarser spray droplet is desirable. It is important to remember that as sprays become coarser, coverage may be compromised.

The D Nozzles employ proven Turbo-Drop® Venturi Technology to inject air and create a larger, more uniform droplet spectrum. The pattern tips are larger in comparison to those of the standard XL nozzles, which results in a greater pressure drop and a larger overall droplet size. D Series Nozzles can be converted to standard TurboDrop® Nozzles by switching out the pattern tip(s) for smaller ones in order to make the spray less coarse for contact pesticides.

The Ceramic Wear Insert Versions (TDCXL-D) are generally good for 50,000 to 80,000 acres vs. 20,000 to 30,000 acres for the standard polyacetal versions.

Pressure Range: 30 to 120 PSI (30 to 150 PSI Ceramic)
Suggested Spray Height: 18" to 36" (on 20" centers)
Material of Construction:
TDXL-D: Polyacetal & EPDM Gasket
TDCXL-D: Polyacetal, Ceramic Wear Insert, EPDM Gasket

Manufacturer:

SKU: GTTDCXL11002-D

Save!

10% on 50

$14.70 / EA

Qty:

i h

TurboDrop® XL Medium Pressure Spray Tip "D" Nozzle, 110°, 02 Orifice, Ceramic

Air Injection to Minimize Drift: TurboDrop® XL-D Nozzle, Coarser Droplets for Chemicals Requiring Maximum Drift Control
