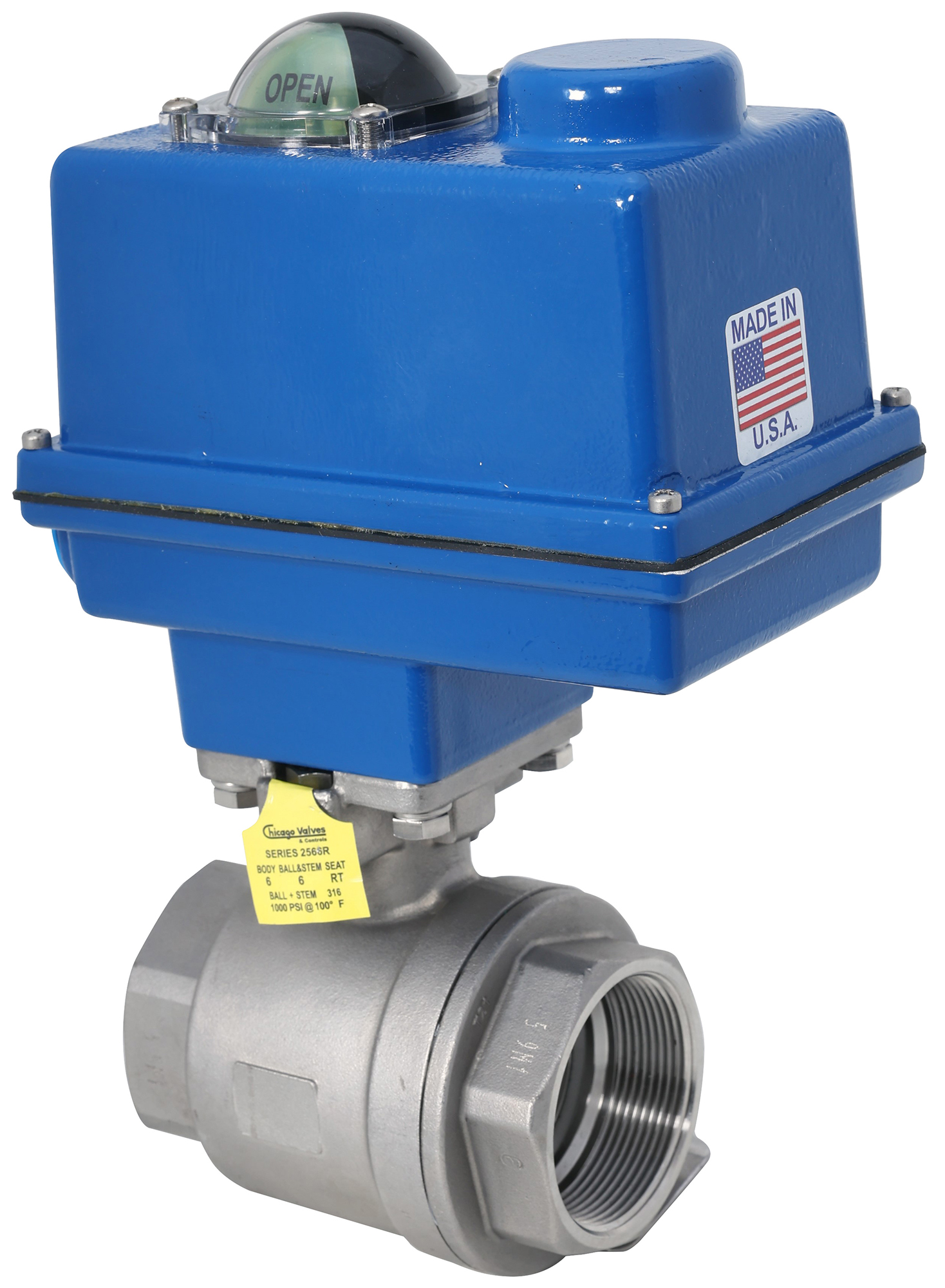

    110 Volt, 2-Piece Stainless Ball Valve, 3" FPT, Electric Actuator, Rated to 800 Maximum PSI

    The 25 Series Ball Valve line from Chicago Valves & Controls is at the heart of these valve assemblies. This product line is a 2-piece, 316 stainless-steel, electrically actuated ball valve and is available in multiple sizes. Due to the 316SS bodies, balls, and stems, the 25 Series has high chemical resistance/tolerance. Also, they have a RTFE seat. The actuator size varies based upon the size of the valve. However, all actuators are direct mount and designed to be used at 110-volt power supply. Full-port valves for enhanced flow characteristics. High cycle live loaded stem packing. Anti-static design.

    Technical Data:
    • Body Material: 316SS or Carbon Steel
    • Seat: RTFE
    • Stem: 316SS
    • Ball: 316SS
    • Pressure Rating: 1000 PSI Max
    • Temperature Rating: 450°F Max
    • Vacuum Rating: Vacuum (29" Hg)
    • Inlet/Outlet: FPT
    • Enclosures are NEMA 4X

    Manufacturer: Chicago Valves
    $2,126.00 / EA
