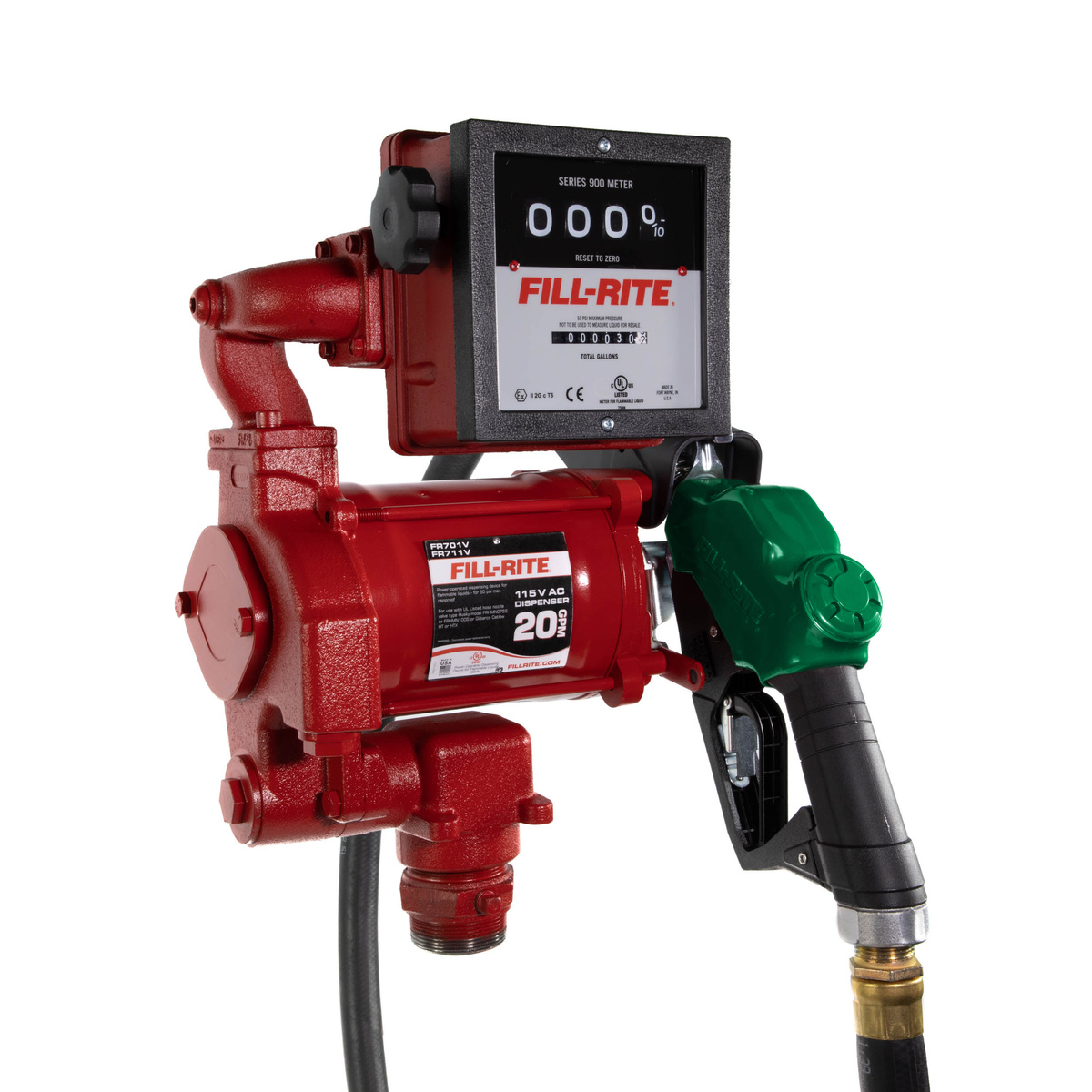

    115 Volt Fuel Transfer Pump with Mechanical Meter, 20 GPM, with Hose & Automatic Nozzle

    700 Series · Ultra Hi-Flow · Heavy Duty · UL Listed

    The Fill-rite FR700 Series AC fuel transfer pumps have been an industry staple for years and are a fantastic entry-level fueling option. Ideal for fueling medium-sized machinery from aboveground storage tanks and other standard volume applications. These 115-volt AC fuel pumps are built for long-lasting service under demanding operating conditions. For use with Gasoline & Diesel fuels. Max flowrate (at open) is 20 GPM.

    The FR711VA fuel pump features a 1-1/4" FPT inlet x 1" FPT outlet and a 3/4 Hp, 115-volt explosion-proof motor with thermal overload protection. The FR711VA also includes a 901C Mechanical Meter, accurate to +/- 2% with large display & seven-digit non-resettable totalizer. Pump kit comes complete with a 1" ultra hi-flow automatic diesel nozzle (Red) and 1" x 18' fuel hose (with static wire), bung adapter, and a built-in check valve and 40-mesh strainer. Suction pipe not included and sold separately.

    Specifications:
    • Type: Positive Displacement (Rotary Vane)
    • Pump Body Material: Cast Iron
    • Display Type: 4-Digit Mechanical
    • Inlet/Outlet Size: 1-1/4" FPT / 1" FPT
    • Mounting Size/Type: 2" MPT Bung
    • Max Flowrate: 20 GPM
    • Duty Cycle: 30 Mins.
    • Motor Power: 1/3 Hp
    • Voltage: 115 Volt AC
    • Max Amp Draw: 5.5 Amps
    • Max Operating/Discharge Pressure: 23 PSI
    • Operating Temperature Range: -17° to 105° F
    • Suction Lift: 15'
    • Warranty: 2 Year Limited Lifetime – 1 Year on Accessories

    Manufacturer: Fill-Rite - Sotera
    $1,315.00 / EA
