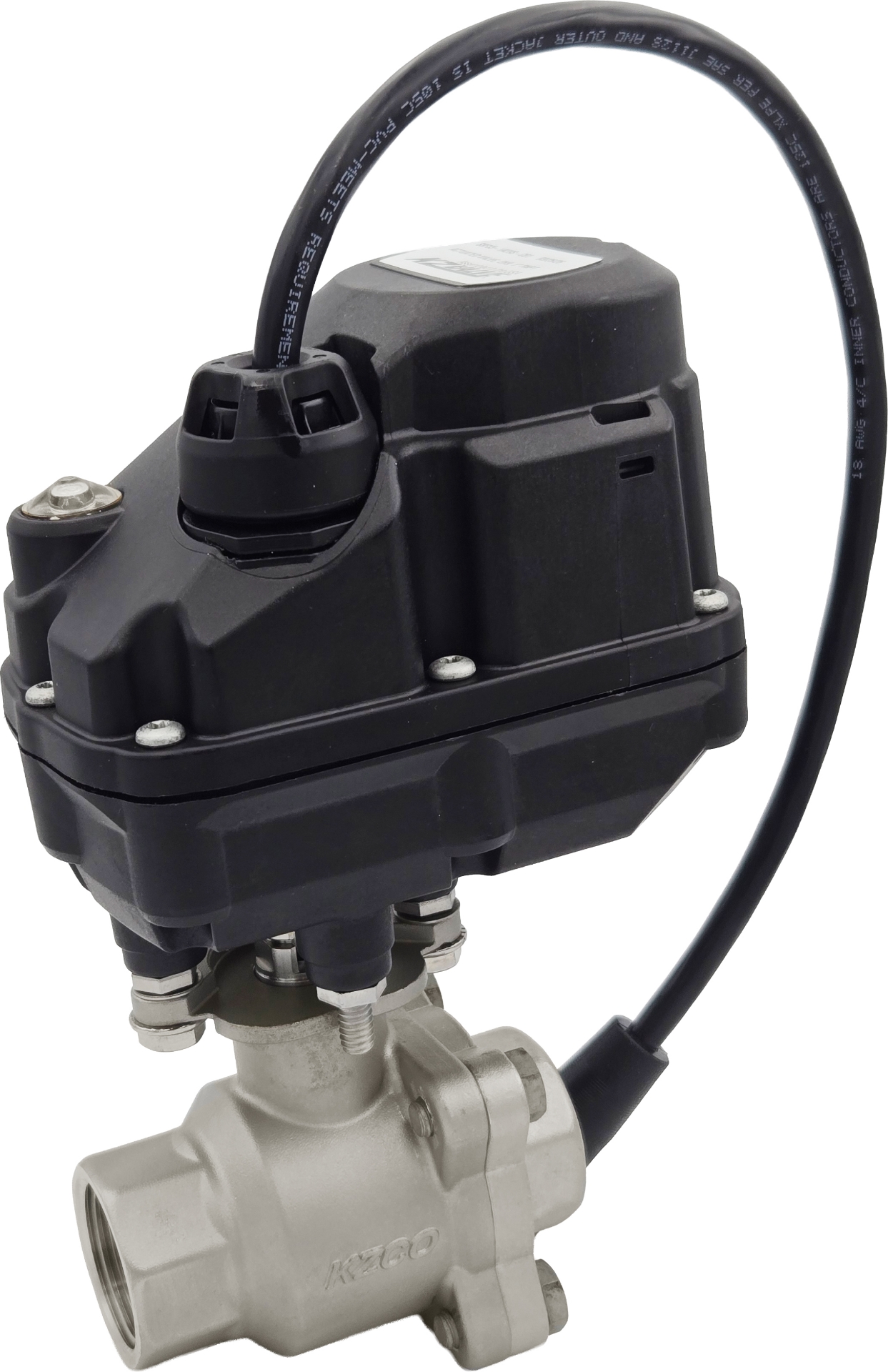

    12 Volt Ball Valve for NH3 Control, Stainless, 1" FPT Ports, EH9 On-Off Actuator, 0.7 Sec. Actuation Time, Raven/Conxall Connector

    EH9 Actuator

    KZValve 12-volt Vented Stainless Steel Ammonia Ball Valves are designed specifically for Anhydrous Ammonia applications and are built to withstand the NH3 environment. Engineered for precision actuation, the 2-way ammonia valves feature 316 stainless steel bodies, stems, and NH3-vented balls for long-lasting performance season after season. 67 Series NH3 valves are available in 1/4"-1/2" full port and 3/4"-2" standard port sizes; S Series NH3 valves available in 1' full port size only.

    The hermetically sealed waterproof actuators are rated to NEMA 6P to protect internal components from corrosion and extend actuator life. Actuators are also ignition safe (rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection. Wiring on all actuators works with all computerized spray monitor consoles - allowing the valve to be operated via the monitor's own switches.

    Note: NH3 valve features a 4-pin Raven/Conxall connector.

    Manufacturer: KZValves
    SKU: KZS8F33-1AE9S-C01
    $495.00 / EA
