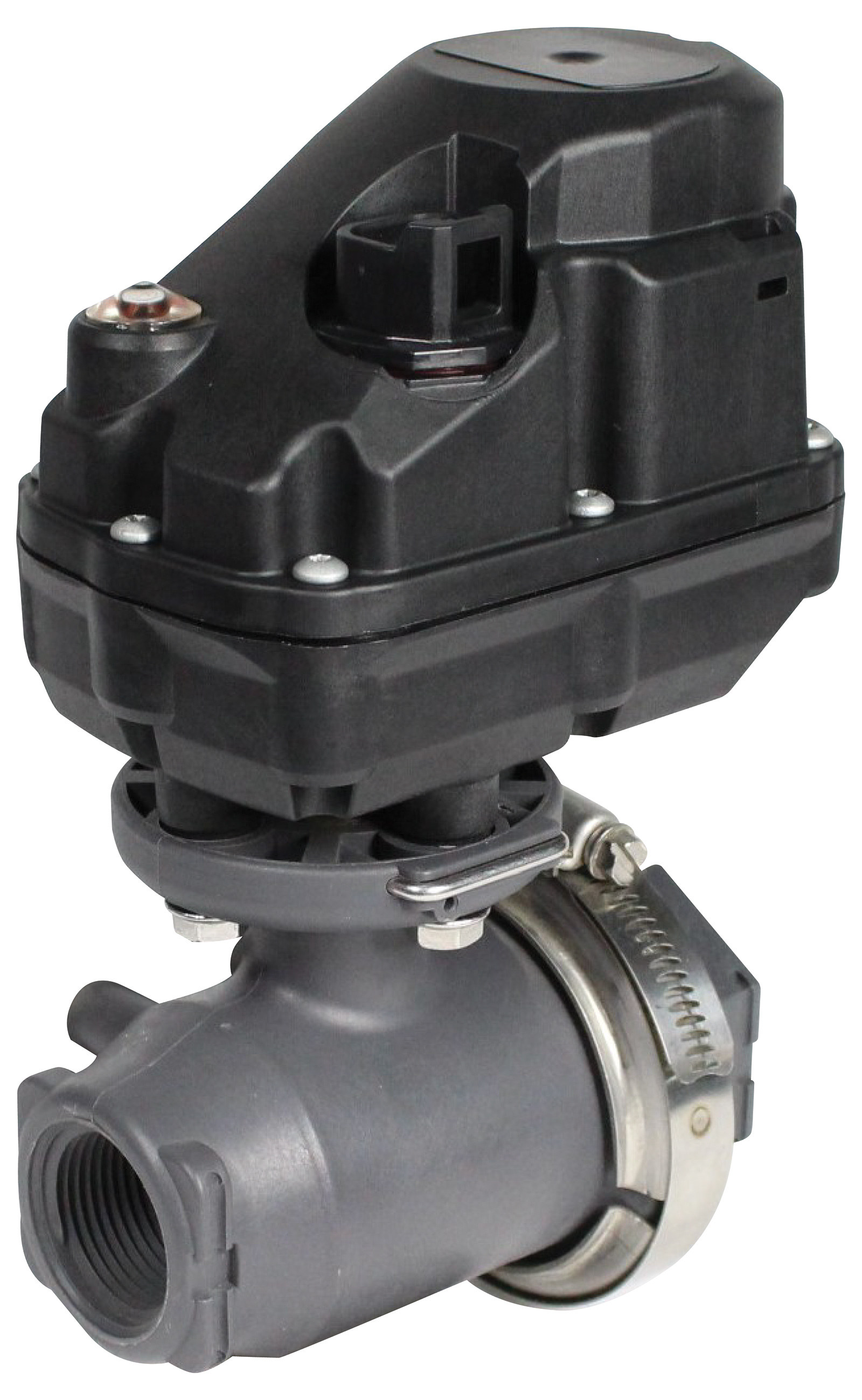

12-Volt Ball Valve, Poly with Stainless Ball, 1" FPT Ports, On/Off, 0.8 Seconds to Close, EH3, 3-Pin (3-Wire) Weatherpack Connector

KZValve 2-way ball valves are engineered for quick, powerful actuation and designed to work with KZValve actuators in extreme conditions. Ideal for a wide range of applications in the agriculture and industrial markets, these KZValve 12-volt electric ball valves fit many major self-propelled and pull-type sprayers in the field. These reliable 12-volt ball valves are proven performers season after season.

This 12-volt 2-way ball valve has an EH3 actuator with a UV-modified, glass-filled nylon housing that is durable, impact resistant, and low maintenance—extending the life of the valve and reducing costs. The On/Off operation allows the valve to be controlled via computerized spray monitor consoles and switches, with an actuation close time of 0.8 seconds.

The hermetically sealed waterproof actuator housing is rated to NEMA 6P to protect internal components from corrosion and extend actuator life. Actuator housing is also ignition safe (rated NEMA 7D and meets the USCG Electrical Systems Standard) to support user and environment protection.

Valve features a 3-Pin (3-Wire) Weatherpack connector.

Standard Features:

Quick, powerful On-Off actuation
Durable polypropylene valve body
316 stainless steel ball and stem
UV modified glass-filled nylon housing
Virgin PTFE seat
Waterproof: Rated NEMA 6P
Ignition safe: Rated NEMA 7D
Solid-state components
Dual Viton® O-rings
Impact resistant
Low maintenance

Technical Specs:

Type: Ball valve
Style: On/Off
Port Size: 1"
Body Material: Polypropylene
Ball/Disc Material: Stainless steel
Seat Material: Virgin PTFE
Flow Direction: 2-way
Flow: Full port
Manifold: No
Operation: 12 VDC
Actuation Type: Electric
Actuation: 0.8 seconds
Connection Type: FPT
Flow: Full port
Max Working Pressure: 150 PSI @ 70°

Manufacturer:

SKU: KZF2F33-10D20-P01

VIEW CATALOG PAGE E0381

$372.00 / EA
