12 Volt Manifold Valve System, QX4 Three Valves, (Reverse Side Inlet)

KZValve QX4 12-volt ball valve manifolds are banked ball valve assemblies equipped for use in a wide range of agricultural, commercial, and industrial applications. The stackable ball valves feature full-port poly valves with 1" 316 stainless-steel balls and stems. Valve manifolds come standard with 1-1/2" FPT / 2" SP flange inlets and 1" FPT outlets. Valves also available in 3/4" FPT, 1" SP flange, or quick-release hairpin outlets. Outlet fittings from 1/2" to 1" in straight hose barb or 90° hose barb style sold separately. These 12-volt manifold poly valves are available from single valve units on up to 5 valves on a single manifold body. The manifold ball valves are rated to 150 PSI at 70° F and have an 0.8 second actuation close time on all models. All units include O-rings at all sealing and come standard with stainless steel mounting brackets.

Note: Quick-release hairpin fittings are required for valve outlets—fittings sold separately.

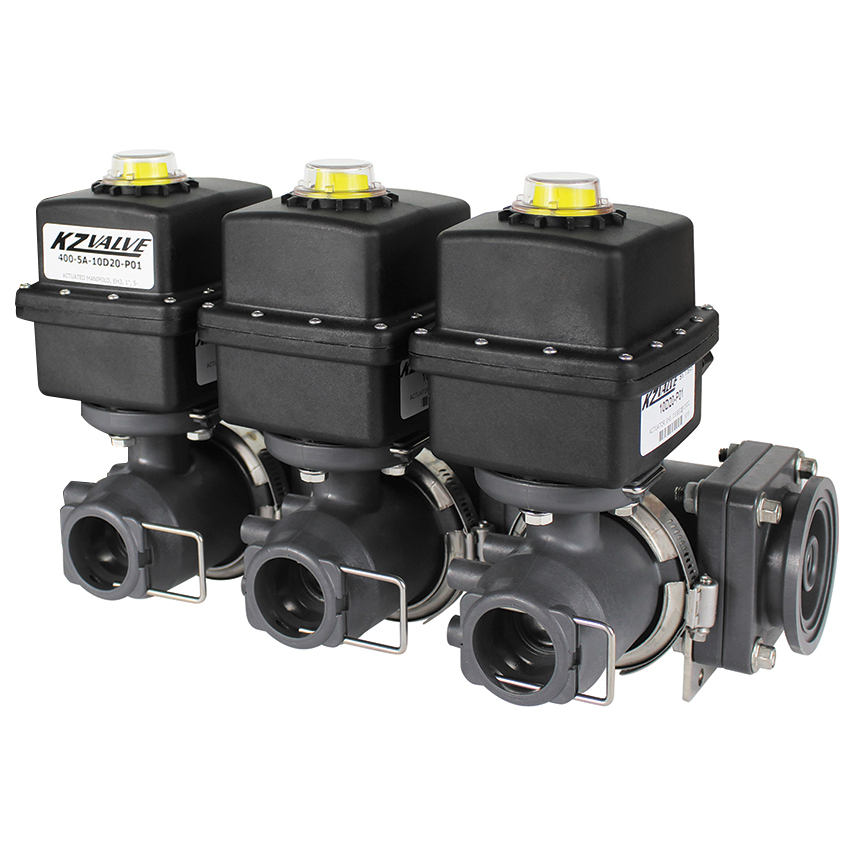

Image: Valve manifold shown with quick-release hairpin outlets.

Technical Specs:

Type: Ball valve manifold
Style: On/Off
Port Size: 1"
Body Material: Polypropylene
Ball/Disc Material: 316 Stainless steel
Seat Material: Virgin PTFE
Flow Direction: 2-way
Flow: Full port
Manifold: Yes

If Manifold Yes—# of Valves: 1-5
Normally Open/Closed: Closed
Operation: 12-volt DC
Actuation Type: Electric
Actuation: 0.8 seconds
Connection Type: 1-1/2" FPT / 2" SP flange inlets x 1" FPT outlets (other outlet styles available)
Max Working Pressure: 150 psi

Hairpin outlet fittings must be ordered separately. Each Fitting includes (2) O-Rings. Order 1 fitting for each outlet in valve stack. Hairpin outlet fitting package not included in valve prices.

All Actuators are On/Off Operation. Regulating Models Available Upon Request

Manufacturer:

SKU: KZ400-32AM-GLE

Call for pricing

12 Volt Manifold Valve System, QX4 Three Valves, (Reverse Side Inlet)
