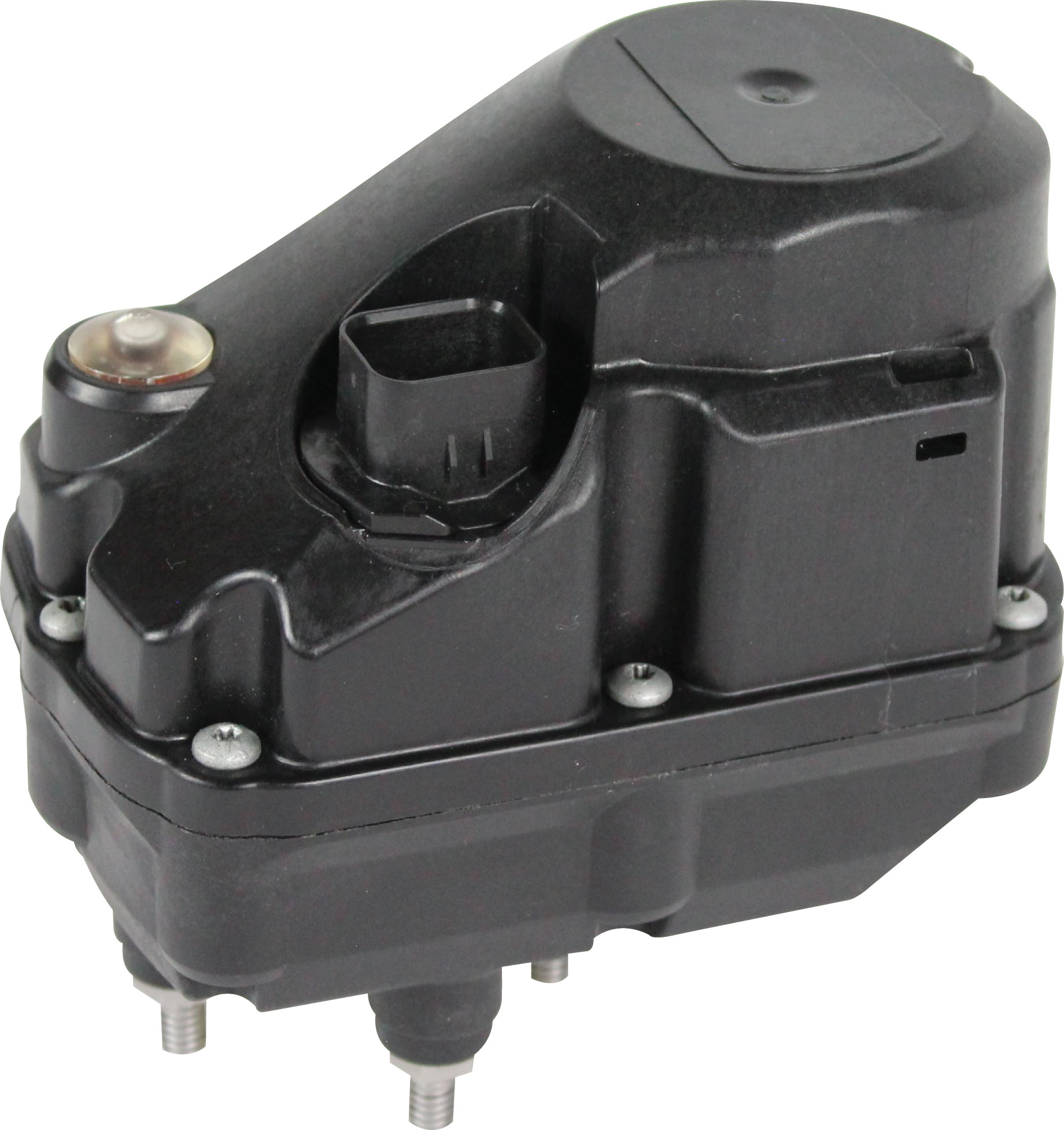

12/24-Volt Replacement Actuator for On-Off Valves, EH9 Actuator

The EH9 Series is KZValve's next-generation actuator series, engineered with higher torque capability, more robust electronics, and featuring new CANBUS platform compatibility. All EH9 actuators are 12/24VDC capable (1.9-amp draw) with On/Off actuation and positive position feedback at closed. Waterproof nylon housing rated to NEMA 7D and IP68M for outdoor and washdown applications. Rated torque of 40 – 100 in. lbs. (Stall torque of 240 in. lbs.) and an operating temperature range of -40° F to 185° F. EH9 actuators are drop-in compatible with 3/4" – 1-1/2" valves.

NOTE: KZValve EH9 actuators are direct plug-in with 4-Pin Deutsch receptacle lids and therefore do NOT include pigtail or adapter wiring harnesses – must be purchased separately.
