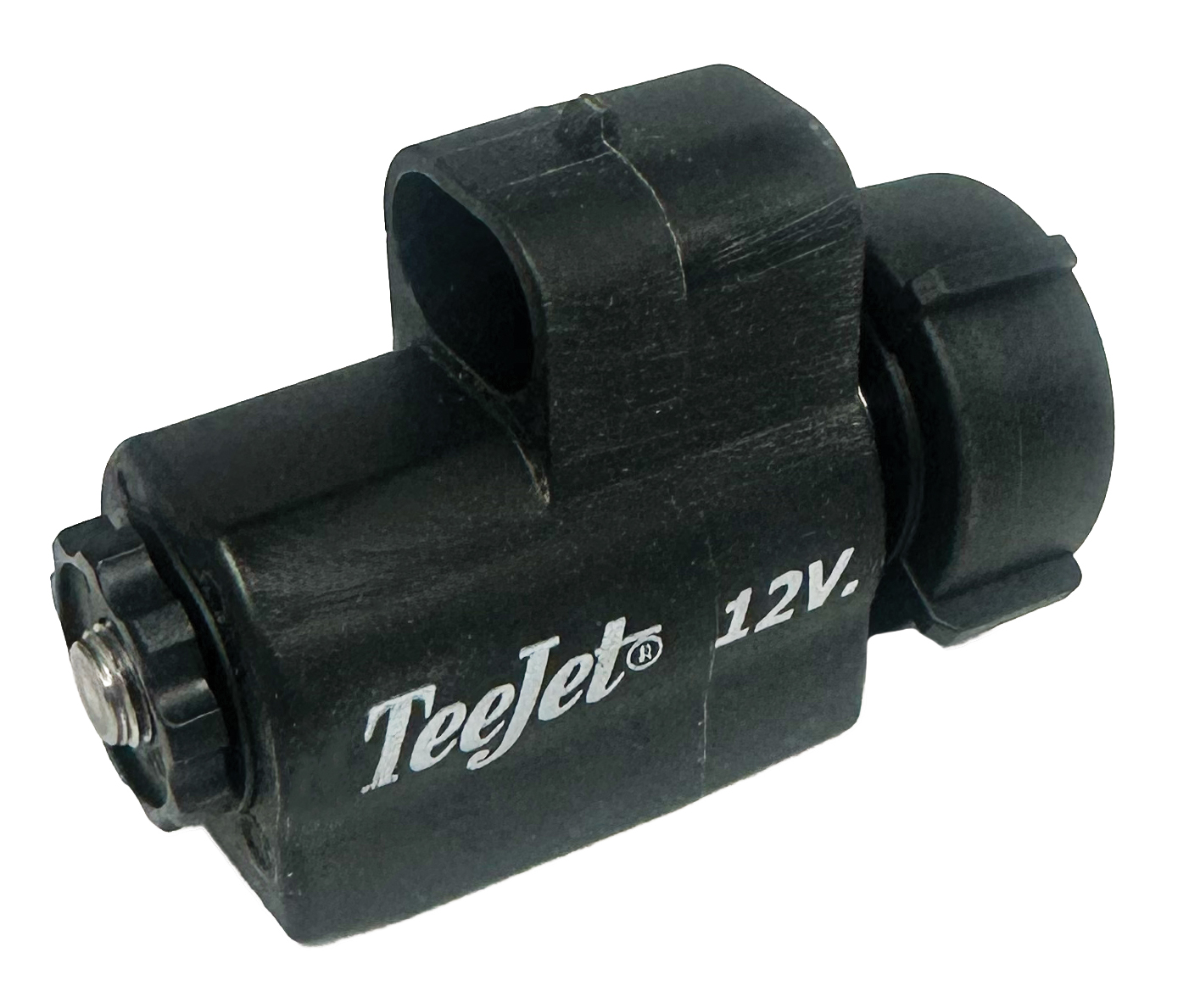

12V ChemSaver® Electric Solenoid Shutoff Valve for QJ7560A, QJ360E, QJ200, QJ300, 24216A, 24230A, QJ39685 & QJ(T)8360 Nozzle Bodies

115880 ChemSaver® is a solenoid actuated shutoff compatible with a wide range of TeeJet nozzle bodies equipped with a diaphragm check valve. It can be used for end of boom nozzles as well as individual tip shutoff and PWM controls.

Valve is normally closed & opens when solenoid is energized.
Wetted materials include stainless steel and Viton®.
Use with most diaphragm check valve equipped TeeJet nozzle bodies.
100 PSI maximum spraying pressure at minimum voltage.
0.6 GPM at 5 PSI pressure drop and 0.8 GPM at 10 PSI pressure drop.
1/4 Second response time.
Offered in 12 or 24 volt DC version.
2-Pin MetriPack connector molded into body for a clean, weather-tight electrical connection.
Requires 98552 cable with 2 pin FM connector.
