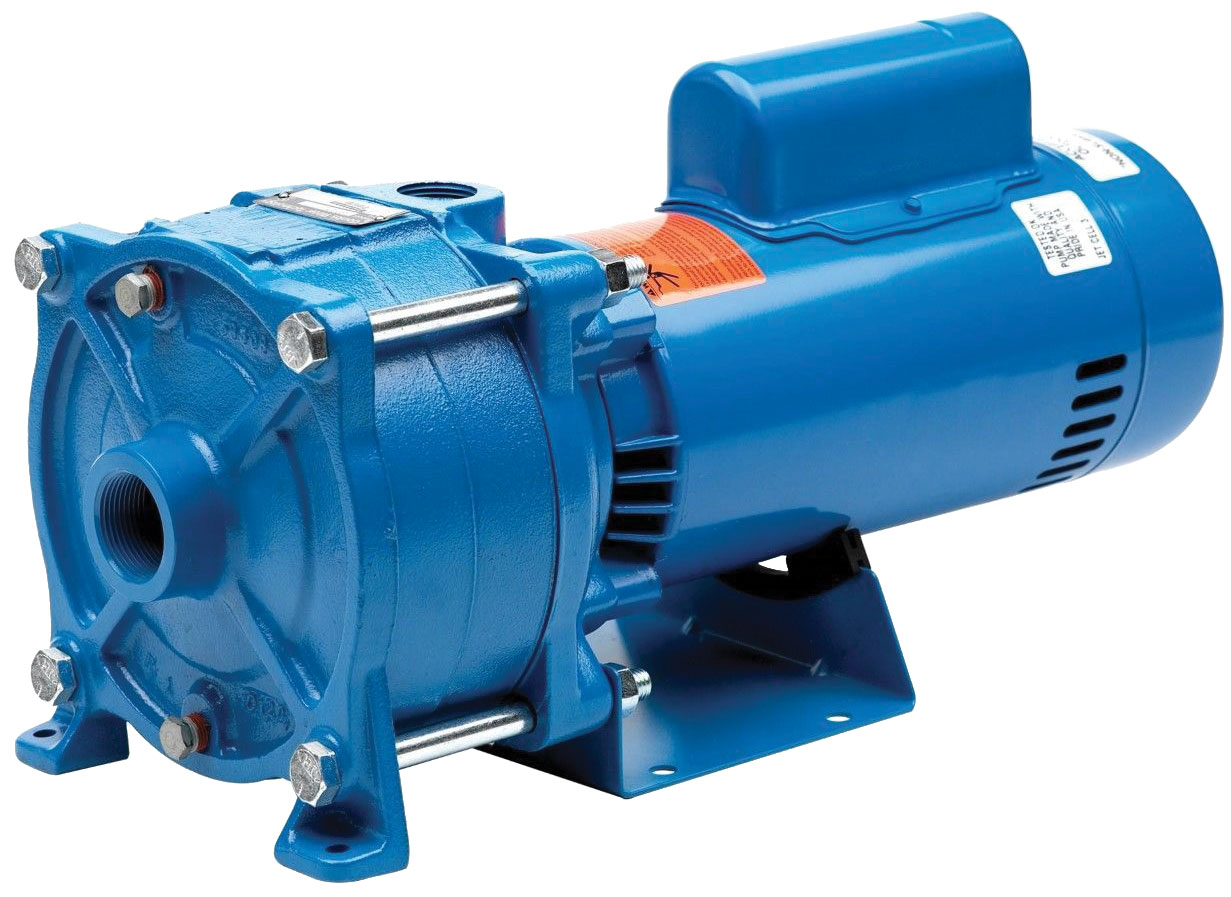

Picture of 1.5 - 3 HP Multi-Stage Centrifugal Pump / Motor Units, Cast Iron

1.5 - 3 HP Multi-Stage Centrifugal Pump / Motor Units, Cast Iron

Standard Features:

Cast Iron Bodies, Stainless Shafts.
Impellers: 20% glass-filled thermoplastic precision molded for high efficiencies.
Corrosion-Resistant: Stainless steel wear rings & coverplates. Electro-coated paint process applied inside & out & baked on.
Motor: 3500 RPM, Capacitor type, continuous duty with built in overload with automatic reset.
Easy to Service: Can be taken apart for service by removing (4) bolts.

Applications:

Water Circulation
Booster Service
Liquid Transfer
Spraying Systems
General Purpose Pumping

Specifications:

Capacities to 50 GPM
Pressures to 100 PSI
1-1/4" FPT Suction, 1" FPT Discharge Ports
Temperatures to 180° F. Maximum

Note: GLHSC30 has an Open Drip-Proof Motor (ODP)

Manufacturer:

	Part No.	Catalog	Pump Type	Body Material	Impeller Material	Shaft Material	Inlet Size	Outlet Size	Inlet Connection	Outlet Connection	Max GPM	Flow Rate	Max PSI	Max Temp (Deg. F)	Motor Max RPM	Pump Mfg	Drive	Motor HP	Phase	Motor Enclosure	Voltage	Price
	SKU: GLHSC30B	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 30 GPM @ 75 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 3	Phase: 3	Motor Enclosure: TEFC	Voltage: 230/460	Price: $2,552.00 / EA	i h
	SKU: GLHSC10C15	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 20 GPM @ 53 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 1.5	Phase: 1	Motor Enclosure: TEFC	Voltage: 115/230	Price: $2,195.00 / EA	i h
	SKU: GLHSC10D15	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 20 GPM @ 53 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 1.5	Phase: 3	Motor Enclosure: TEFC	Voltage: 230/460	Price: CALL FOR PRICE
	SKU: GLHSC15C20	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 25 GPM @ 57 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 2	Phase: 1	Motor Enclosure: TEFC	Voltage: 115/230	Price: $2,531.00 / EA	i h
	SKU: GLHSC20D	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 25 GPM @ 73 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 2	Phase: 3	Motor Enclosure: TEFC	Voltage: 230/460	Price: CALL FOR PRICE
	SKU: GLHSC30	Catalog: E0238	Pump Type: Centrifugal	Body Material: Cast Iron	Impeller Material: Thermoplastic	Shaft Material: Stainless Steel	Inlet Size: 1-1/4"	Outlet Size: 1"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 50	Flow Rate: 30 GPM @ 75 PSI	Max PSI: 100	Max Temp (Deg. F): 180	Motor Max RPM: 3500	Pump Mfg: Goulds Pumps	Drive: Electric Motor	Motor HP: 3	Phase: 1	Motor Enclosure: TEFC	Voltage: 230	Price: $2,896.00 / EA	i h
