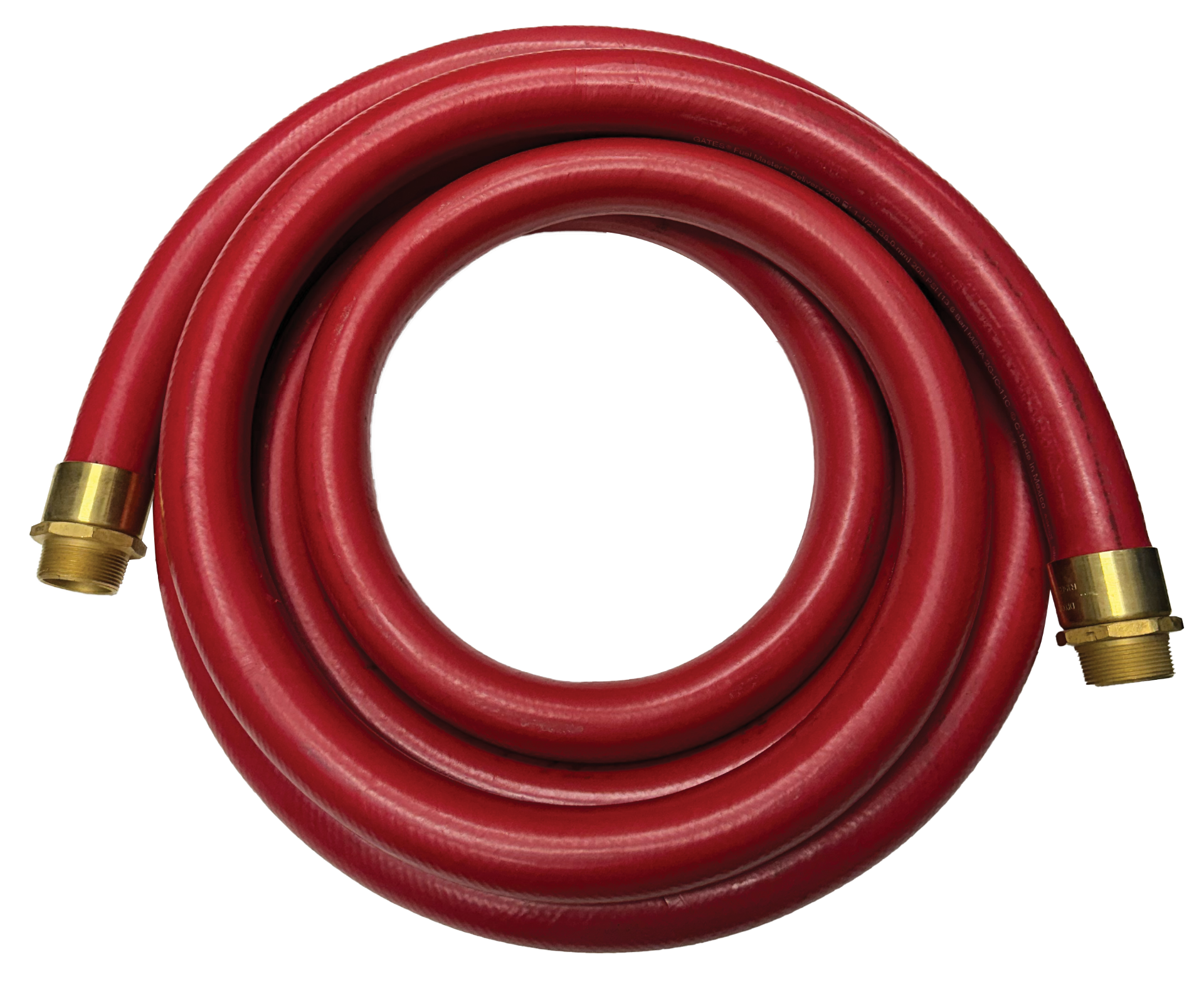

    1.5" Hose I.D", 2.08" Hose O.D, 12.0" Min. Bend Radius, 0.95 lbs./ft, 35' Length

    For Fuel Oil, Diesel, Commercial Gasolines
    Bio-Diesel to B20 & Ethanol to E15

    Excellent for transferring diesel fuel, biodiesel (to B20), commercial gasolines and fuel oils. Hose remains flexible to -20° F. Abrasion-resistant and non-marking cover. All assemblies are fitted with crimped on brass ends (MPT standard, FPT and FPT swivels also available); no hose clamps. Intended primarily as discharge hose assemblies; rated to 200 PSI working pressure. Limited suction side use; vacuum rating to 10" Hg (1/3 of full vacuum).

    These hose assemblies can be made in any length up to 150' long. Simply specify diameter, overall length of hose assembly and MPT or FPT ends when ordering (Allow 1 to 2 weeks to ship on custom lengths).

    Call Us with Your Specifications.
    SKU: GA3221WM-1-1/2X35
    $653.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Tube Material Nitrile
    Length 35'
    Hose I.D. 1.5"
    Hose O.D. 2.08"
    Bend Radius 12"
    Max PSI 200
    Min Temp (Deg. F) -40
    Max Temp (Deg. F) 180
    Color Red
    Application Petroleum
