    4.8 - 8 HP Engine Driven Hypro Diaphragm Pumps

    Diaphragm Pump Units for Fertilizer, Chemicals, and Abrasives.

    AR Diaphragm Pump & Engine Units for general purpose ground or tree spraying. Develops pressures to reach mid to upper spray levels. Handles almost any fluid, including abrasives and suspensions with minimal wear.

    These pumps are equipped with a gear-reduction drive that is close coupled directly to the gas engine. Pump includes gear reduction and runs at 540 RPM. Maximum temperature is 140° F. Pump units include adjustable pressure controls. (Hose, gun, plumbing, battery and cable are not included).

    Part No. Catalog Pump Type Max GPM Max PSI Motor Max RPM Pump Mfg Drive Drive Style Motor Mfg Motor HP Price

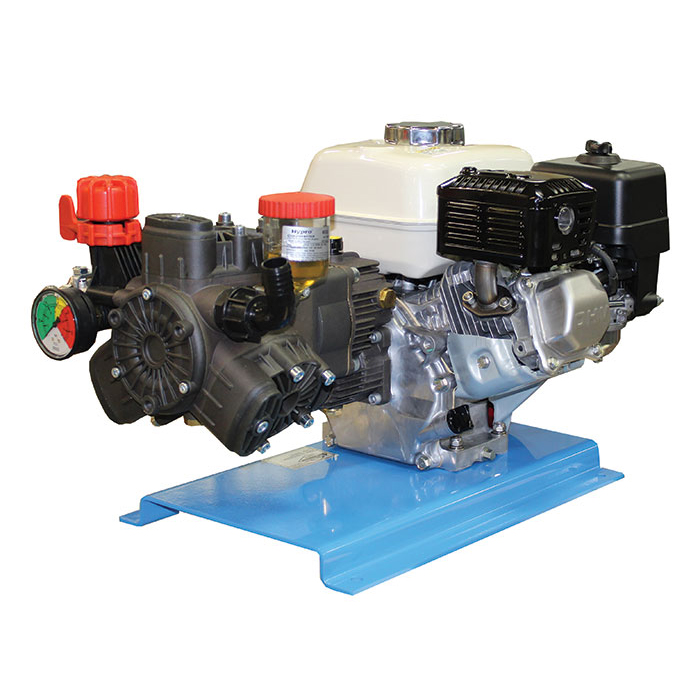

    Picture of AR Diaphragm Pump Unit, 4.8 HP Honda Engine, Recoil Start, 580 PSI, 10 GPM
    SKU: DU5H-AR403GR Catalog: E1327 Pump Type: Diaphragm Max GPM: 10 Max PSI: 580 Motor Max RPM: 540 Pump Mfg: Hypro Pumps Drive: Gas Engine Drive Style: Close Coupled Motor Mfg: Honda Motor HP: 4.8 Price: $1,553.00 / EA
    i h
    Picture of AR Diaphragm Pump Unit, 4.8 HP Honda Engine, 12V Start, 580 PSI, 9 GPM
    SKU: DU5H-AR30GRE Catalog: E1327 Pump Type: Diaphragm Max GPM: 9 Max PSI: 580 Motor Max RPM: 540 Pump Mfg: Hypro Pumps Drive: Gas Engine Drive Style: Close Coupled Motor Mfg: Honda Motor HP: 4.8 Price: $1,746.00 / EA
    i h
    Picture of AR Diaphragm Pump Unit, 4.8 HP Honda Engine, Recoil Start, 580 PSI, 9 GPM
    SKU: DU5H-AR30GR Catalog: E1327 Pump Type: Diaphragm Max GPM: 9 Max PSI: 580 Motor Max RPM: 540 Pump Mfg: Hypro Pumps Drive: Gas Engine Drive Style: Close Coupled Motor Mfg: Honda Motor HP: 4.8 Price: $1,484.00 / EA
    i h
    Picture of AR Diaphragm Pump Unit, 4.8 HP Honda Engine, 12V Start, 580 PSI, 10 GPM
    SKU: DU5H-AR403GRE Catalog: E1327 Pump Type: Diaphragm Max GPM: 10 Max PSI: 580 Motor Max RPM: 540 Pump Mfg: Hypro Pumps Drive: Gas Engine Drive Style: Close Coupled Motor Mfg: Honda Motor HP: 4.8 Price: $1,790.00 / EA
    i h
