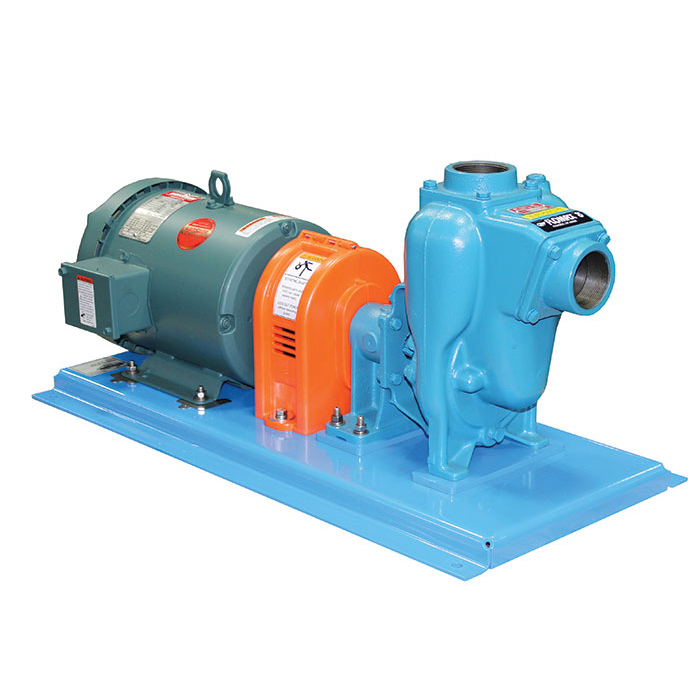

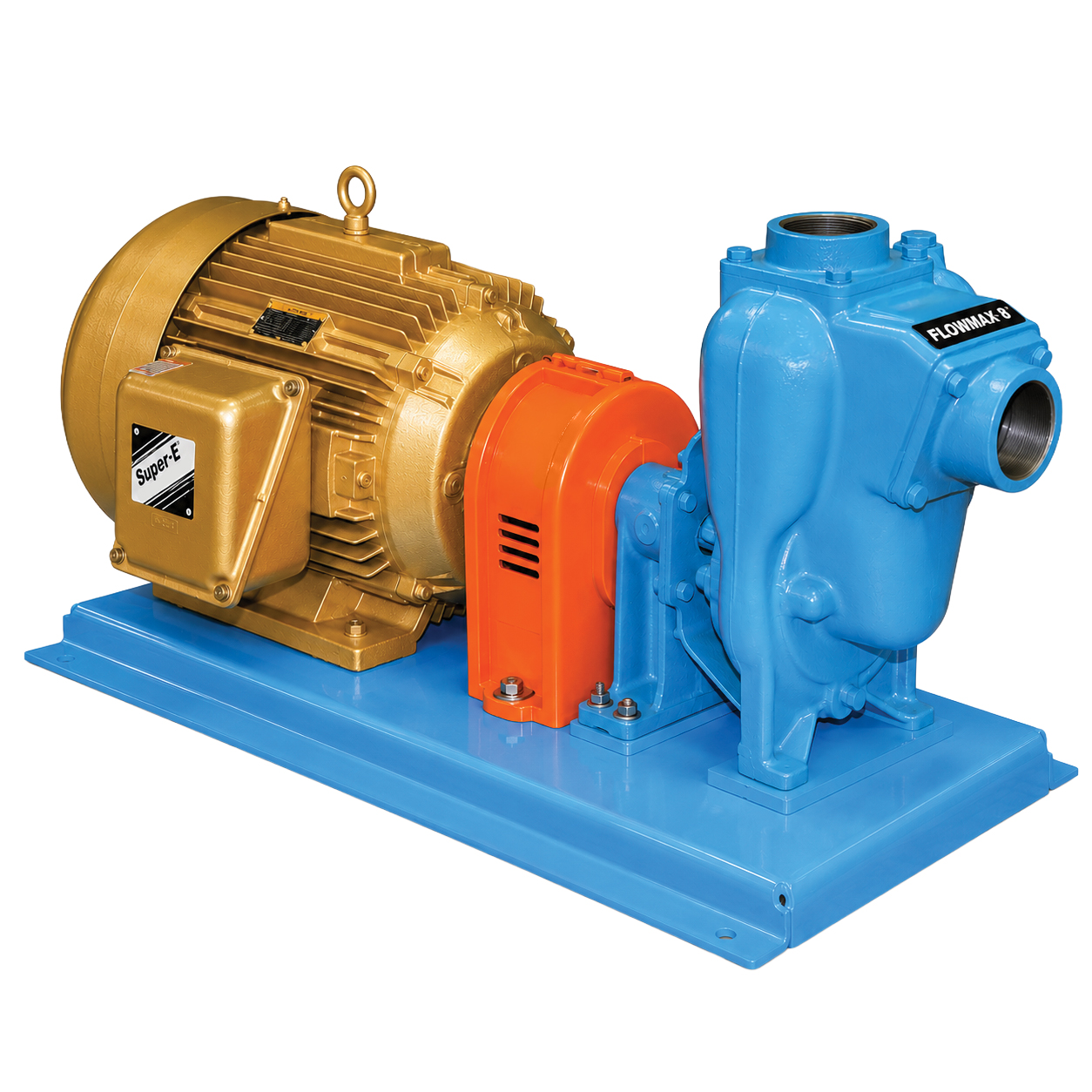

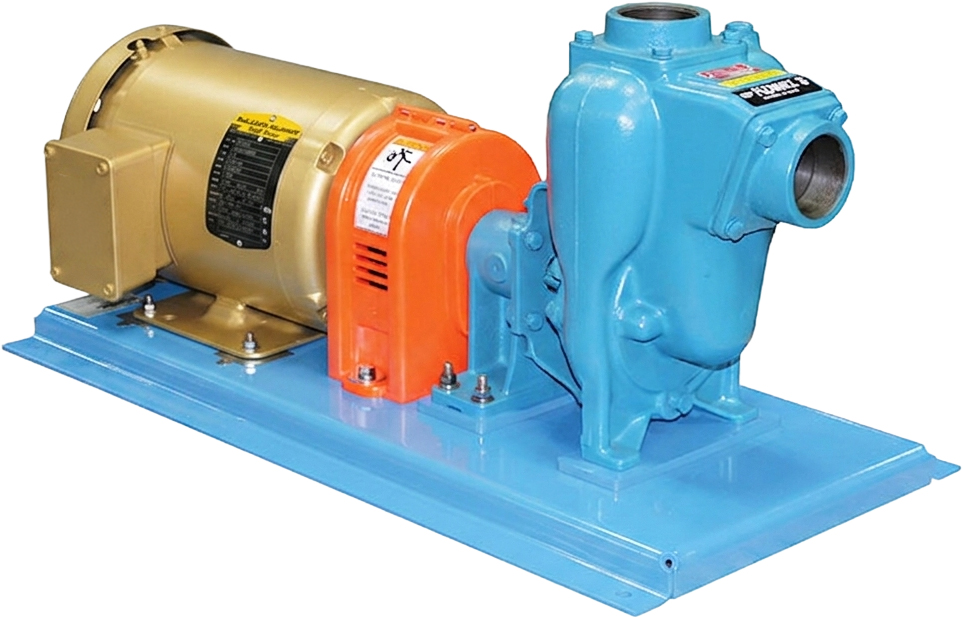

5 - 7.5 HP Flomax 10 Centrifugal Pump / Motor Units, Self Priming, Viton Mechanical Seals

2"

Cast Iron Construction • Cast Iron Impeller
Stainless Steel Shaft Sleeve • Viton Mechanical Seals
Stainless Fasteners • TEFC Motors

These Self-Priming Centrifugal Pumps are mounted on a rigid steel base to permit long coupling to an electric motor. Long Coupling design allows a wider choice of motors in both horsepower and type of enclosure. A LoveJoy jaw type coupling with rubber spider and coupling guard are standard. "S-flex" spacer type couplings are also available.
Water=

8.33 lbs./Gal.=1.0 Specific Gravity
12 lb. Material=1.4 S.G.
14 lb. Material=1.7 S.G.

Manufacturer:

Part No.	Catalog	Pump Type	Body Material	Inlet Size	Outlet Size	Impeller Diameter	Inlet Connection	Outlet Connection	Max GPM	Flow Rate	Self-Priming	Pump Mfg	Max Specific Gravity	Drive	Drive Style	Motor HP	Phase	Voltage	Series	Price
SKU: DUMP5010	Catalog: E0217	Pump Type: Centrifugal	Body Material: Cast Iron	Inlet Size: 2"	Outlet Size: 2"	Impeller Diameter: 5-3/4"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 215	Flow Rate: 210 GPM @ 20 PSI	Self-Priming: Yes	Pump Mfg: MP Pumps	Max Specific Gravity: 1	Drive: Electric Motor	Drive Style: Long Coupled	Motor HP: 5	Phase: 1	Voltage: 230	Series: Flomax 10	Price: $3,522.00 / EA	i h
SKU: DUMP5030	Catalog: E0217	Pump Type: Centrifugal	Body Material: Cast Iron	Inlet Size: 2"	Outlet Size: 2"	Impeller Diameter: 5-3/4"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 215	Flow Rate: 210 GPM @ 20 PSI	Self-Priming: Yes	Pump Mfg: MP Pumps	Max Specific Gravity: 1	Drive: Electric Motor	Drive Style: Long Coupled	Motor HP: 5	Phase: 3	Voltage: 208/230/460	Series: Flomax 10	Price: $2,874.00 / EA	i h
SKU: DUMP7510	Catalog: E0217	Pump Type: Centrifugal	Body Material: Cast Iron	Inlet Size: 2"	Outlet Size: 2"	Impeller Diameter: 5-3/4"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 200	Flow Rate: 200 GPM @ 20 PSI	Self-Priming: Yes	Pump Mfg: MP Pumps	Max Specific Gravity: 1.2	Drive: Electric Motor	Drive Style: Long Coupled	Motor HP: 7.5	Phase: 1	Voltage: 230	Series: Flomax 10	Price: $3,827.00 / EA	i h
SKU: DUMP7530	Catalog: E0217	Pump Type: Centrifugal	Body Material: Cast Iron	Inlet Size: 2"	Outlet Size: 2"	Impeller Diameter: 5-3/4"	Inlet Connection: FPT	Outlet Connection: FPT	Max GPM: 200	Flow Rate: 200 GPM @ 20 PSI	Self-Priming: Yes	Pump Mfg: MP Pumps	Max Specific Gravity: 1.2	Drive: Electric Motor	Drive Style: Long Coupled	Motor HP: 7.5	Phase: 3	Voltage: 208/230/460	Series: Flomax 10	Price: $3,362.00 / EA	i h

Additional Information

Standard Pump units are of cast iron construction. Bronze, Aluminum, and stainless steel pumps are available on special request. All fasteners are stainless steel to reduce corrosion. Impellers are balanced and trimmed to insure non-overloading conditions. The standard mechanical seal is stainless steel, Viton®, carbon and ceramic which is self adjusting and corrosion resistant to handle many different liquids. Pump assemblies are fitted with heavy duty ball bearing pedestals for long life. (Pump, Base and coupling assemblies are available separately to fit existing standard NEMA motors.)

Viton® is a registered trademark of DuPont Performance Elastomers
