    7.5 - 15 HP Flomax 15 Centrifugal Pump / Motor Units, Self Priming

    3"

    Cast Iron Construction • Cast Iron Impeller
    Stainless Steel Shaft Sleeve • Viton Mechanical Seals
    Stainless Fasteners • TEFC Motors

    These Self-Priming Centrifugal Pumps are mounted on a rigid steel base to permit long coupling to an electric motor. Long Coupling design allows a wider choice of motors in both horsepower and type of enclosure. A LoveJoy jaw type coupling with rubber spider and coupling guard are standard. "S-flex" spacer type couplings are also available.
    * High Flow Pump with severe duty double grease lubricated seal & 5 blade DI impeller.

    Water=

    • 8.33 lbs./Gal.=1.0 Specific Gravity
    • 12 lb. Material=1.4 S.G.
    • 14 lb. Material=1.7 S.G.
    Manufacturer: MP Pumps
    Part No. Catalog Pump Type Body Material Inlet Size Outlet Size Impeller Diameter Inlet Connection Outlet Connection Max GPM Flow Rate Self-Priming Pump Mfg Max Specific Gravity Drive Drive Style Motor HP Phase Voltage Series Price

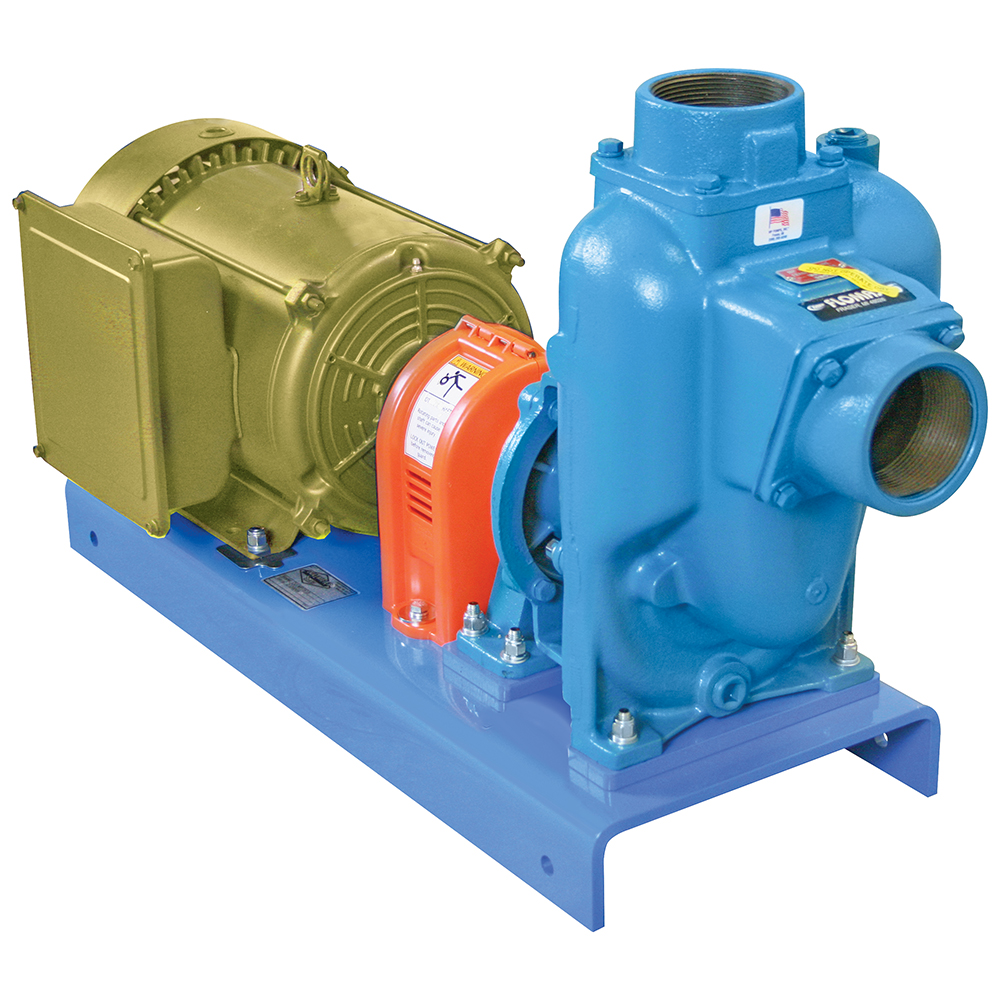

    Picture of Self Priming Flomax 15 Centrifugal Pump / Motor Unit, Cast Iron, 300 Max. GPM, 275 GPM@20 PSI, 1.2 Max Spec. Grav., 3" Ports, 7.5 HP, 230 Volts, 1 PH, 5.75" Impeller Diam.
    		SKU: DUMP7513 Catalog: E0217 Pump Type: Centrifugal Body Material: Cast Iron Inlet Size: 3" Outlet Size: 3" Impeller Diameter: 5-3/4" Inlet Connection: FPT Outlet Connection: FPT Max GPM: 300 Flow Rate: 275 GPM @ 20 PSI Self-Priming: Yes Pump Mfg: MP Pumps Max Specific Gravity: 1.2 Drive: Electric Motor Drive Style: Long Coupled Motor HP: 7.5 Phase: 1 Voltage: 230 Series: Flomax 15 Price: $3,814.00 / EA
    i h
    Picture of Self Priming Flomax 15 Centrifugal Pump / Motor Unit, Cast Iron, 300 Max. GPM, 275 GPM@20 PSI, 1.2 Max Spec. Grav., 3" Ports, 7.5 HP, 208-230/460 Volts, 3 PH, 5.75" Impeller Diam.
    		SKU: DUMP7533 Catalog: E0217 Pump Type: Centrifugal Body Material: Cast Iron Inlet Size: 3" Outlet Size: 3" Impeller Diameter: 5-3/4" Inlet Connection: FPT Outlet Connection: FPT Max GPM: 300 Flow Rate: 275 GPM @ 20 PSI Self-Priming: Yes Pump Mfg: MP Pumps Max Specific Gravity: 1.2 Drive: Electric Motor Drive Style: Long Coupled Motor HP: 7.5 Phase: 3 Voltage: 208/230/460 Series: Flomax 15 Price: $3,231.00 / EA
    i h
    Picture of Self Priming Flomax 15 Centrifugal Pump / Motor Unit, Cast Iron, 300 Max. GPM, 275 GPM@20 PSI, 1.4 Max Spec. Grav., 3" Ports, 10 HP, 230 Volts, 1 PH, 6.0" Impeller Diam.
    		SKU: DUMP1013 Catalog: E0217 Pump Type: Centrifugal Body Material: Cast Iron Inlet Size: 3" Outlet Size: 3" Impeller Diameter: 6" Inlet Connection: FPT Outlet Connection: FPT Max GPM: 300 Flow Rate: 275 GPM @ 20 PSI Self-Priming: Yes Pump Mfg: MP Pumps Max Specific Gravity: 1.4 Drive: Electric Motor Drive Style: Long Coupled Motor HP: 10 Phase: 1 Voltage: 230 Series: Flomax 15 Price: $4,185.00 / EA
    i h
    Picture of Self Priming Flomax 15 Centrifugal Pump / Motor Unit, Cast Iron, 300 Max. GPM, 275 GPM@20 PSI, 1.4 Max Spec. Grav., 3" Ports, 10 HP, 208-230/460 Volts, 3 PH, 6.0" Impeller Diam.
    		SKU: DUMP1033 Catalog: E0217 Pump Type: Centrifugal Body Material: Cast Iron Inlet Size: 3" Outlet Size: 3" Impeller Diameter: 6" Inlet Connection: FPT Outlet Connection: FPT Max GPM: 300 Flow Rate: 275 GPM @ 20 PSI Self-Priming: Yes Pump Mfg: MP Pumps Max Specific Gravity: 1.4 Drive: Electric Motor Drive Style: Long Coupled Motor HP: 10 Phase: 3 Voltage: 208/230/460 Series: Flomax 15 Price: $3,371.00 / EA
    i h
    Picture of Self Priming Flomax 15 Centrifugal Pump / Motor Unit, Cast Iron, 300 GPM, 3" Ports, 15 HP, 3 PH
    		SKU: DUMP1533 Catalog: E0217 Pump Type: Centrifugal Body Material: Cast Iron Inlet Size: 3" Outlet Size: 3" Impeller Diameter: 6" Inlet Connection: FPT Outlet Connection: FPT Max GPM: 300 Flow Rate: 275 GPM @ 20 PSI Self-Priming: Yes Pump Mfg: MP Pumps Max Specific Gravity: 2 Drive: Electric Motor Drive Style: Long Coupled Motor HP: 15 Phase: 3 Voltage: 208/230/460 Series: Flomax 15 Price: $4,092.00 / EA
    i h

    Additional Information

    Standard Pump units are of cast iron construction. Bronze, Aluminum, and stainless steel pumps are available on special request. All fasteners are stainless steel to reduce corrosion. Impellers are balanced and trimmed to insure non-overloading conditions. The standard mechanical seal is stainless steel, Viton®, carbon and ceramic which is self adjusting and corrosion resistant to handle many different liquids. Pump assemblies are fitted with heavy duty ball bearing pedestals for long life. (Pump, Base and coupling assemblies are available separately to fit existing standard NEMA motors.)

    Viton® is a registered trademark of DuPont Performance Elastomers
