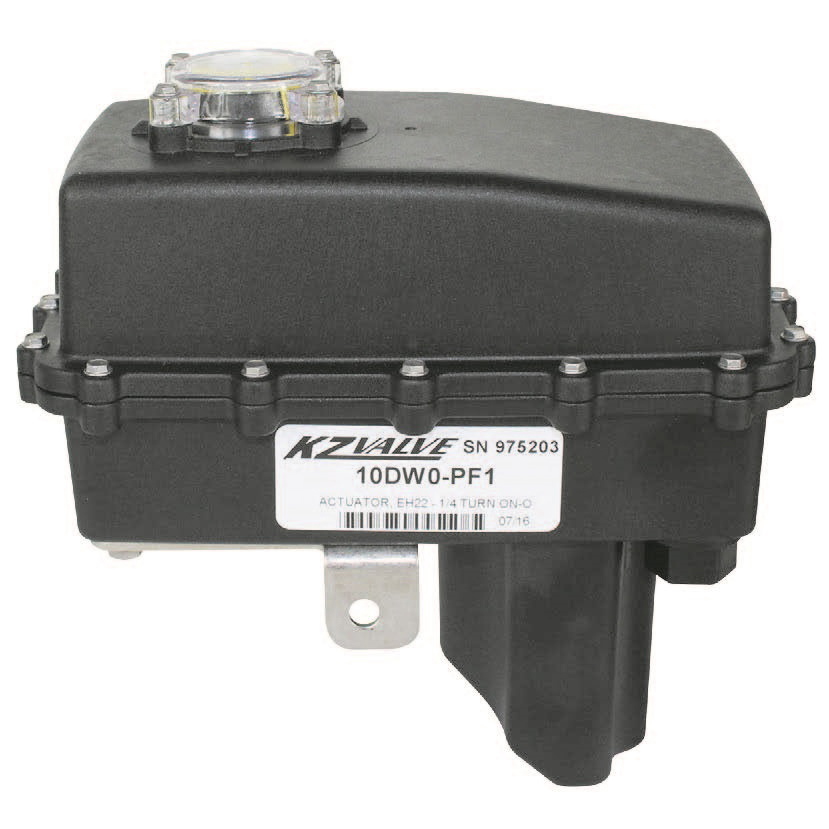

Actuator, EH2, 12/24 Volt, On-Off, 1.5 Second Close @ All Voltages, 3-Wire/3-Pin Weatherpack Connector

EH2 Series actuators ship complete with wiring diagrams and standard pigtail harness (mating connector to bare wire, no dust plug). Weatherpack, Deutsch, and other end connection options available. All EH2 actuators are 12/24VDC capable (1.9-amp draw) with either On/Off or Regulating actuation. Feature waterproof nylon housings rated to NEMA 7D and IP68M for outdoor and washdown applications. Rated torque of 110 in. lbs. (Stall torque of 500-600 in. lbs.) and an operating temperature range of -32° F to 125° F. EH2 actuators are drop-in compatible with 1" – 3" valves.
