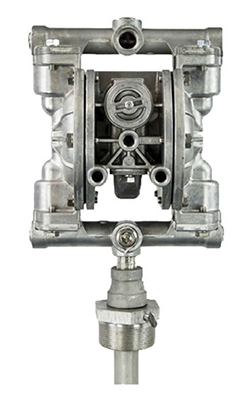

    Air Operated Diaphragm Drum Pump, 1/2" FPT Port, Aluminum Body, Buna Diaphragm, 16 GPM, Max Flow 100 PSI, Aluminum Standpipe and Fittings

    Air-Operated Drum Diaphragm Pumps from Yamada. Designed for versatile and cost effective transfer and dispensing of liquids from 55 gallon drums. Unique, simple, and safe, these pumps have a wide range of chemical compatibility and can handle a wide range of liquid products and viscosities. Abrasive and corrosive fluids can be handled without problem. Multi-purpose pumps are well-suited for almost every type of plant and industry out there.

    Always check chemical compatibility against materials of construction.

    Features:

    • Self-priming
    • On/Off reliability
    • Ability to run dry
    • Ability to dead head
    • Portable
    • Lightweight
    • Aluminum, Polypropylene, Stainless and Kynar Bodies
    • Buna, Santoprene and Teflon Diaphragms shown, (Viton®, EPDM, Hytrel and Neoprene are also available)
    • Rated to 180° F. with Buna and Santoprene and 212° F. with Teflon diaphragms. Standpipes and bung fittings are included.

    Manufacturer: Yamada Pumps
    SKU: YAG15AN-D
    VIEW CATALOG PAGE E1046
    $887.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Diaphragm
    Body Material Aluminum
    Inlet Size 1/2"
    Inlet Connection FPT
    Max GPM 16
    Max PSI 1500
    Self-Priming Yes
    Manufacturer Part Number G15AN-D

    Additional Information

    STANDARD FEATURES:

    Air Driven-Intrinsically Safe. Air drive allows you to be free from electrical hazards or explosion-proof motor requirements.

    Excellent Wear Resistance & Minimum Maintenance. Without moving parts in contact with the liquids or rotating parts to wear, the pump is almost maintenance free.

    Self-Priming, Dry Start. Completely self-priming. Also, if liquid source runs dry, the pump can continue to operate without damage from overheating or friction wear until further liquid is available.

    Flow Control. Infinitely variable flow control can be regulated by simply opening or closing a valve on the discharge, or by increasing or decreasing the air supply.

    High Lift and Distance Transfer. Because pumps are designed at a 1:1 ratio, discharge pressures are equal to the air inlet pressure. Maximum pressure is approximately 70 PSI on the Poly pumps.

    Versatile Material Handling. Product capabilities range from clear water to highly viscous, abrasive or aggressive materials.
