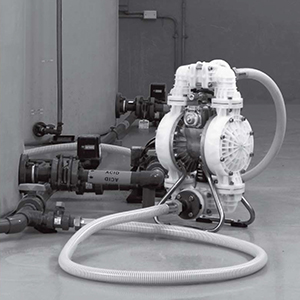

    Air Operated Diaphragm Pump, 1/2" FPT Ports, Polypropylene Body, Teflon Diaphragm, 13.5 GPM @ 12 CFM Air

    Air-Powered, Double-Diaphragm Pumps. Designed for versatile and cost effective transfer and dispensing of liquids. Unique, simple, and safe, these pumps have a wide range of chemical compatibility and can handle a wide range of liquid products and viscosities. Abrasive and corrosive fluids can be handled without problem. Multi-purpose pumps are well-suited for almost every type of plant and industry use.

    Always check chemical compatibility against materials of construction.

    • Rated to 180° F depending on body and diaphragm type.
    • Air supply range from 20 to 100 PSI.

    For higher temperatures or other compatibility requirements, Stainless Steel bodies and sizes up to 3" are also available. Please call 1-888-677-5054 for information & pricing.
    Above pumps should always have a filter / regulator on the air supply line.
    Manufacturer: Yamada Pumps
    SKU: YANDP-15FPT
    VIEW CATALOG PAGE E0260
    $507.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Diaphragm
    Body Material Polypropylene
    Inlet Size 1/2"
    Outlet Size 1/2"
    Inlet Connection FPT
    Outlet Connection FPT
    Max GPM 13
    Self-Priming Yes

    Additional Information

    STANDARD FEATURES:

    Air Driven-Intrinsically Safe. Air drive allows you to be free from electrical hazards or explosion-proof motor requirements.

    Excellent Wear Resistance & Minimum Maintenance. Without moving parts in contact with the liquids or rotating parts to wear, the pump is almost maintenance free.

    Self-Priming, Dry Start. Completely self-priming. Also, if liquid source runs dry, the pump can continue to operate without damage from overheating or friction wear until further liquid is available.

    Flow Control. Infinitely variable flow control can be regulated by simply opening or closing a valve on the discharge, or by increasing or decreasing the air supply.

    High Lift and Distance Transfer. Because pumps are designed at a 1:1 ratio, discharge pressures are equal to the air inlet pressure. Maximum pressure is approximately 70 PSI on the Poly pumps.

    Versatile Material Handling. Product capabilities range from clear water to highly viscous, abrasive or aggressive materials.
