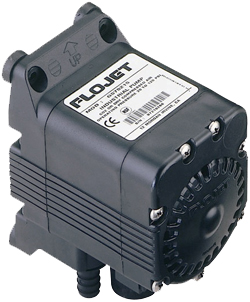

Air Operated Diaphragm Pump, Santoprene® Diaphragm, 3/8" Hose Barb, 5 GPM Max Flow, *100 Max PSI

Flojet Air Operated Diaphragm Pumps are compact pumps designed with high flow and wide pressure range performance capabilities. These Flojet diaphragm pumps are self-priming up to 15' are constructed of corrosion-resistant polypropylene for a wide range of product handling possibilities (up to 1/8" solids). Each diaphragm pump also features a patented shuttle valve that eliminates stalling during operation. Pumps are rated to 120° F and up to 100 PSI. Diaphragms are available in Viton®, Santoprene®, and Kalrez materials, with internal wetted parts being 316 stainless steel. These air operated diaphragm pumps are ideal options for applications such as chemical transfer, automotive cleaning, and water treatment.

Model G575205 Gas inlet/outlet ports are 1/4" FPT. Product inlet/outlet ports are 3/8" hose barb. Air inlet is 1/4" hose barb (brass).

Technical Specs:

Type: Diaphragm
Pump Body Material: Polypropylene
Inlet Size/Type: 3/8" Hose Barb
Outlet Size/Type: 3/8" Hose Barb
Max GPM: 5 GPM
Max PSI: 100 PSI
Seal Material: Santoprene®
Drive Type: Air
Max Fluid Temp: 120° F

G57 Series Standard Features:

Highest flow rate for any air pump of comparable size
Stall-proof design with patented shuttle valve
Easy installation with all quick disconnect ports
Robust design with durable integral mounting
Sanitary design with inset molded diaphragm
Leak resistant radial seals, no critical O-ring seals
Quiet operation with large exhaust muffler

* Maximum air consumption is 2.8 cfm @ 120 PSI. Santoprene is a registered trademark of Monsanto Co.
