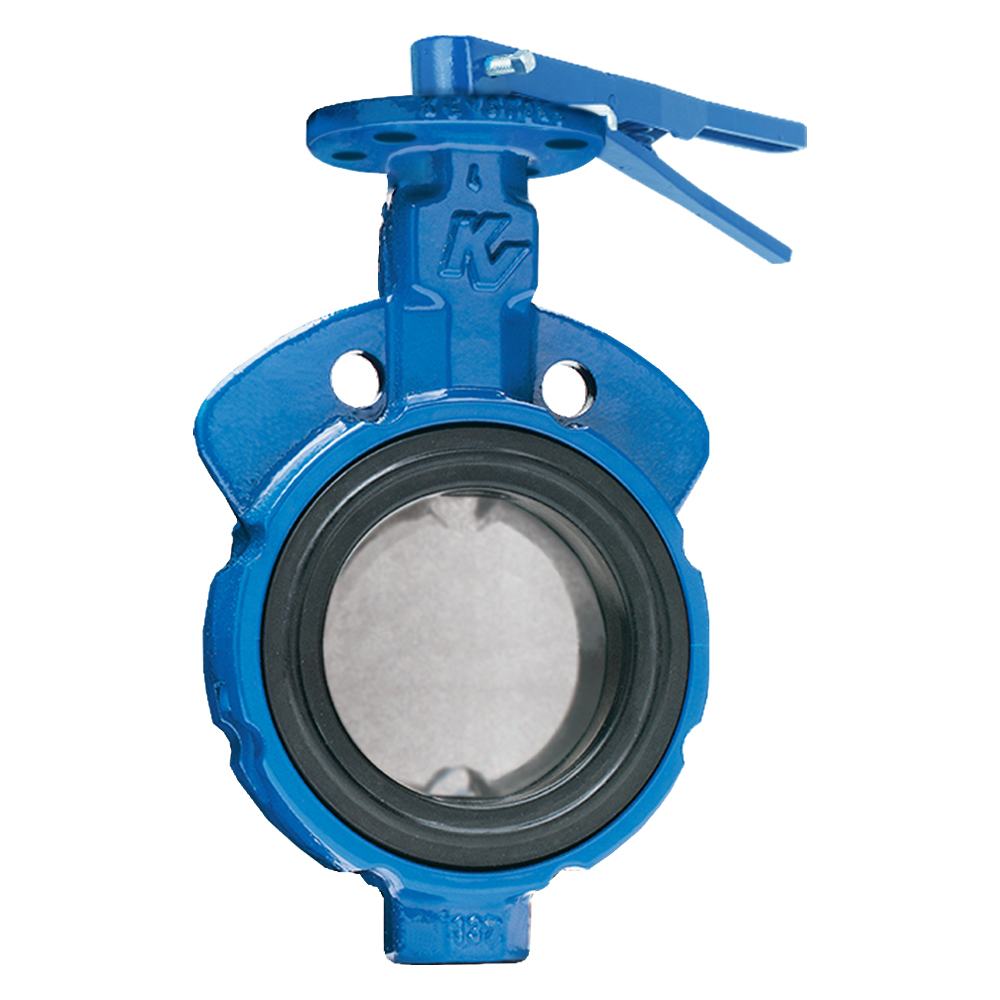

Keystone 990 Series Butterfly Valve, Wafer Style, Split Body

990 Series

Thin disc, resilient seat, split body (two piece) design allows for easy field replacement of seat & disc/stem. One-piece thin profile disc/stem (316SS) results in maximum flow rates, lowest pressure drops (high CV) and best control capabilities. Suitable for installation between ANSI Class 125/150 flanges. Wafer style cast iron bodies (stainless and lug style also available). Replaceable EPDM seats standard (Buna & PTFE lined available). Not for Vacuum.

Manufacturer:

Be the first to review this product

Part No.	Catalog	Style	Body Material	Seal Material	Port Size A	Max PSI	Series	Price
SKU: KE990-40	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 4"	Max PSI: 150	Series: 990	Price: $625.00 / EA	i h
SKU: KE990-60	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 6"	Max PSI: 150	Series: 990	Price: $777.00 / EA	i h
SKU: KE990-20	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 2"	Max PSI: 150	Series: 990	Price: $357.00 / EA	i h
SKU: KE990-25	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 2-1/2"	Max PSI: 150	Series: 990	Price: $391.00 / EA	i h
SKU: KE990-30	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 3"	Max PSI: 150	Series: 990	Price: $453.00 / EA	i h
SKU: KE990-50	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 5"	Max PSI: 150	Series: 990	Price: $695.00 / EA	i h
SKU: KE990-80	Catalog: E0323	Style: Split Body Wafer	Body Material: Cast Iron	Seal Material: EPDM	Port Size A: 8"	Max PSI: 150	Series: 990	Price: $1,262.00 / EA	i h
