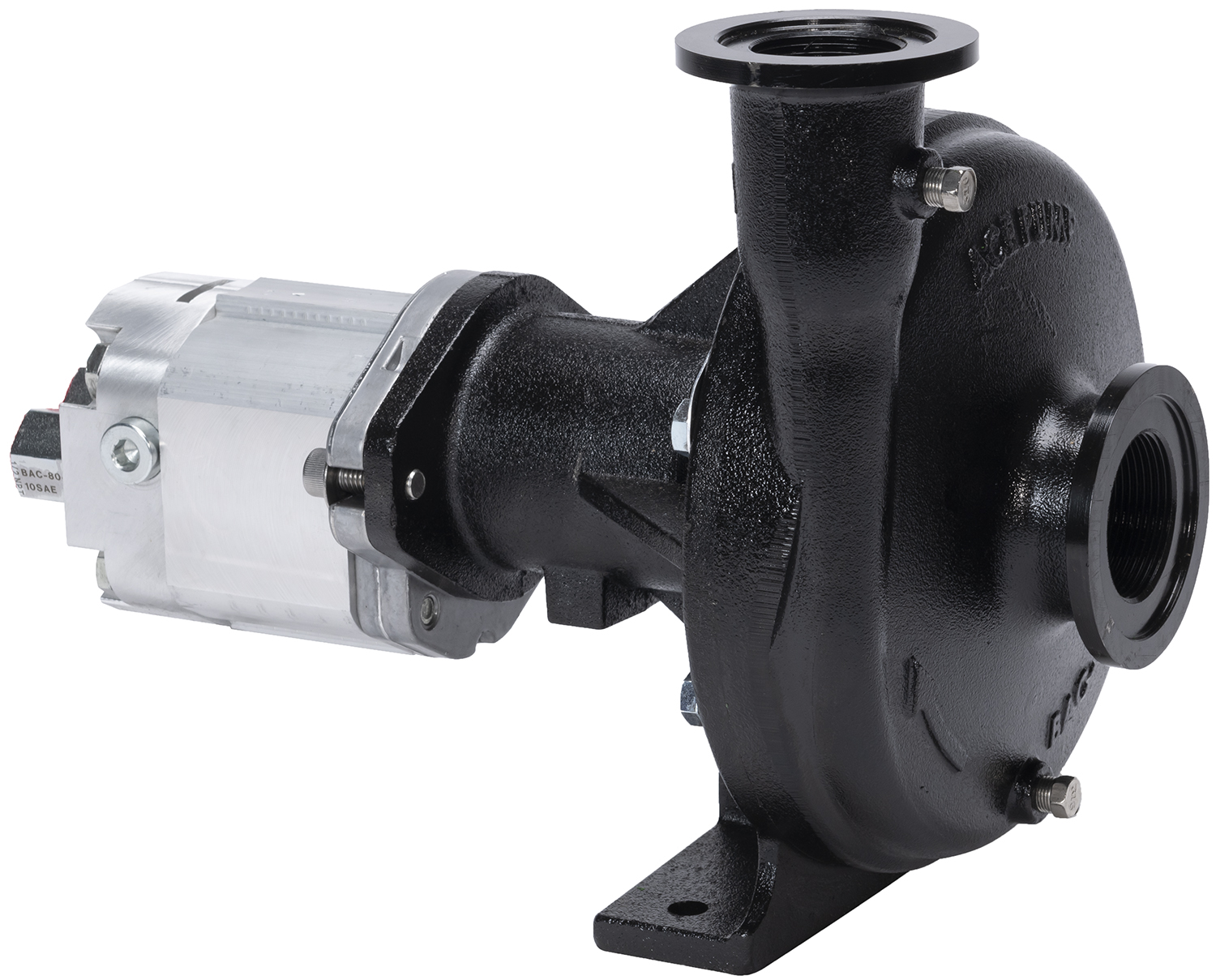

ACE Cast Iron Centrifugal Pumps with Hydraulic Motor (650 Max Series)

Oasis™ Double Wet Mechanical Seal

PWM Valves Available

FMC650HYD Features: Suction is 1-1/2" NPT • Discharge is 1-1/4" NPT • Maximum flow is 140 GPM at up to 120 PSI • Modified Impeller design is higher pressure at lower RPM • Maximum Pressure 160 PSI at 4700 RPM • High efficiency pressure plated gear motor • Durable E-Coating inside and out for excellent corrosion resistance • Stainless Steel shaft with integrated splined motor coupler • Oversized bearings for extended pump life • Standard with Single Mechanical Seal (Severe duty and "wet" run dry seals available.)

FMC650FHYD Features: Suction 220 flange & 1-1/2" NPT • Discharge 200 flange & 1-1/4" NPT • Maximum flow is 170 GPM at up to 120 PSI • Modified Impeller design is higher pressure at lower RPM • Maximum Pressure 160 PSI at 4700 RPM • High efficiency pressure plated gear motor • Durable E-Coating inside and out for excellent corrosion resistance • Stainless Steel shaft with integrated splined motor coupler • Oversized bearings for extended pump life • Single Mechanical Seal.

2-Year Warranty on Pump & Hydraulic Motor
(Severe Duty and Oasis™ Double Wet Seals also available)

Manufacturer:

Part No.	Catalog	Pump Type	Seal Type	Body Material	Max GPM	Max PSI	Pump Mfg	Drive	Series	Inlet Size	Outlet Size	Inlet Connection	Outlet Connection	Price
SKU: ACFMC650FHYDWS	Catalog: E0805	Pump Type: Centrifugal	Seal Type: Mechanical	Body Material: Cast Iron	Max GPM: 140	Max PSI: 160	Pump Mfg: Ace Pumps	Drive: Hydraulic Motor	Series: 650	Inlet Size:	Outlet Size:	Inlet Connection:	Outlet Connection:	Price: $2,024.00 / EA	i h
SKU: ACFMC650FHYD	Catalog: E0805	Pump Type: Centrifugal	Seal Type: Mechanical	Body Material: Cast Iron	Max GPM: 140	Max PSI: 160	Pump Mfg: Ace Pumps	Drive: Hydraulic Motor	Series: 650	Inlet Size:	Outlet Size:	Inlet Connection:	Outlet Connection:	Price: $1,498.00 / EA	i h
SKU: ACFMC650HYD	Catalog: E0805	Pump Type: Centrifugal	Seal Type: Mechanical	Body Material: Cast Iron	Max GPM: 140	Max PSI: 160	Pump Mfg: Ace Pumps	Drive: Hydraulic Motor	Series: 650	Inlet Size: 1-1/2"	Outlet Size: 1-1/4"	Inlet Connection: FPT	Outlet Connection: FPT	Price: $1,342.00 / EA	i h

Additional Information

Pump Reliability:
• Oasis™ Wet Seal operates in Barrier Fluid Eliminating Run Dry & Abrasion Failures. Pressurized Barrier Fluid prevents Chemical Contact with Seal.
• E-Coat Protection on all castings for Excellent Corrosion Protection.
• Suitable for Many Fertilizer & DeIcing Salt Solutions.

Hydraulic Motor:
• 4,000 PSI Maximum Pressure.
• Five Dedicated Motor Bearings.
• Integrated Anti-Cavitation Check.

Performance:
• Flanged Ports for Maximum Flow - 300 Series Suction x 220 Full Port Discharge. (750 & 850 Series)
