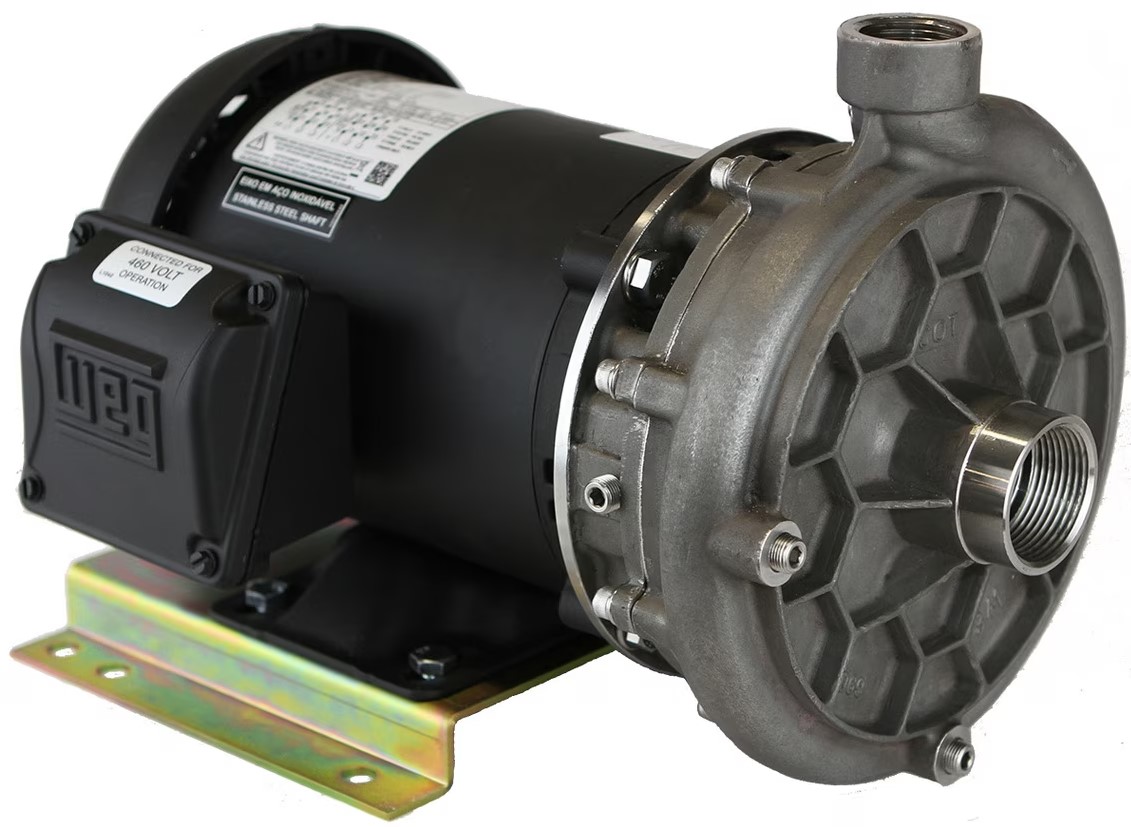

Centrifugal Pump, MotorPump Model 341, 304 Stainless Steel, 1-1/4" x 1", 4.38" Polymer Impeller, Viton Carbon/Silicon-Carbide Seal, 60Hz, 1HP, 3PH, 230/460V 3500RPM, TEFC Weg Premium Efficient Motor, J56 Frame

Scot Pump introduced the 341 Series in late 2023. This series supersedes the 331 Series, which replaced the long-standing 231 Series. A major benefit of advancing to the new 341 Series is the 304SS investment cast housing. The honeycomb design allows for greater design strength. This J56 frame pump housing allows installers to put a pipe wrench onto the housing without crushing it – try that with other stamped stainless-steel pumps and it will collapse the housing. The 341 Series is an exact footprint match of the 331 Series. Note: Repair Parts do NOT interchange between 231/331/341 Series.

Max PSI: 67
Max GPM: 80
Housing: 304SS
Size: 1.25" x 1" FPT Ports
Impeller: Polymer (PPS-GF) Enclosed, Max 6.3"
HP: 1/2HP to 5HP
Hertz: 60Hz
RPM/Enclosure: 3500RPM/ODP, TEFC, Explosion Proof
Motor Voltage: 3PH: 208-230/460V, 200V, 575V
Motor Voltage: 1PH: 115/230V

Manufacturer:

SKU: SC3487K106WPE

VIEW CATALOG PAGE E3652

$1,044.00 / EA

Qty:

i h

Centrifugal Pump, MotorPump Model 341, 304 Stainless Steel, 1-1/4" x 1", 4.38" Polymer Impeller, Viton Carbon/Silicon-Carbide Seal, 60Hz, 1HP, 3PH, 230/460V 3500RPM, TEFC Weg Premium Efficient Motor, J56 Frame

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
