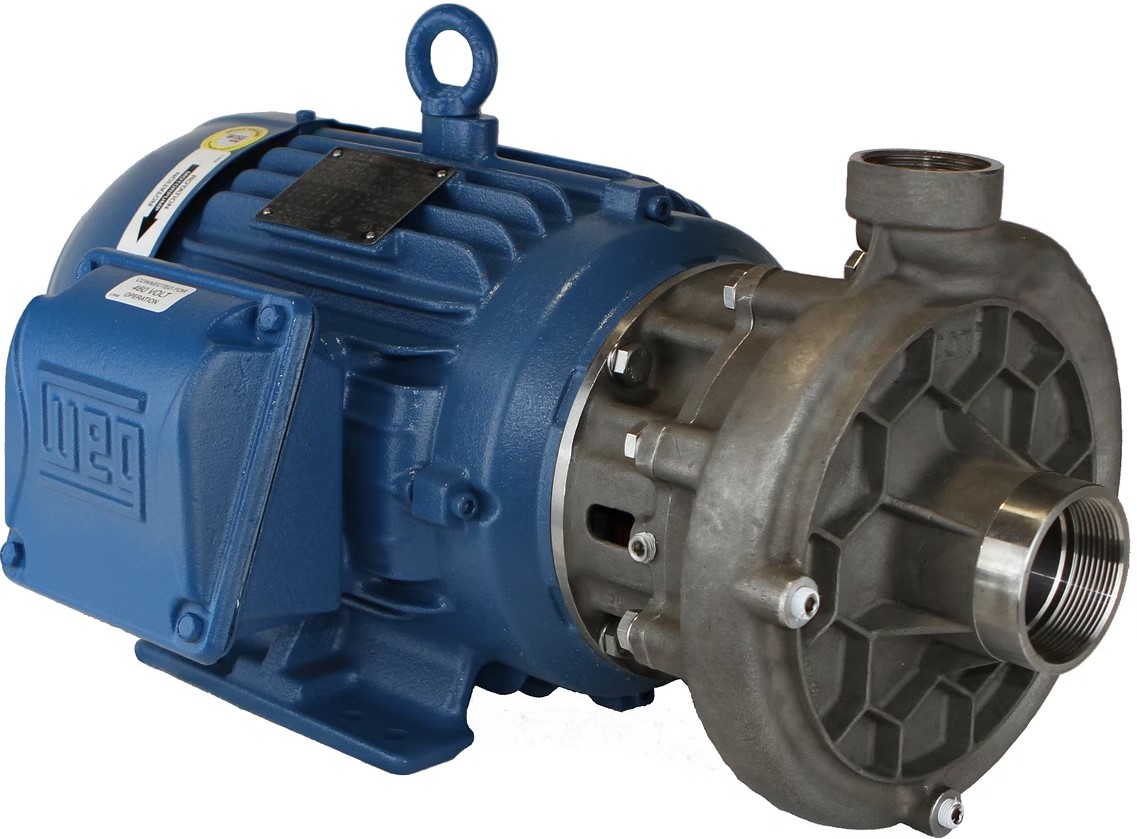

Centrifugal Pump, MotorPump Model 346, 304 Stainless Steel, 2IN x 1-1/2IN, 5.0IN Polymer Impeller, Viton Carbon-Ceramic Seal, 60Hz, 5HP, 3PH, 230/460V 3500RPM, TEFC Weg Premium Efficient Motor, JM Frame

Scot Pump introduced the 346 Series in late 2023. While this new series does not supersede the 236 Series, anyone with a Scot 236 should look to the 346 Series for significant upgrades. A major benefit of advancing to the new 346 Series is the 304SS investment cast housing. The honeycomb design allows for greater design strength. This JM frame pump housing allows installers to put a pipe wrench onto the housing without crushing it – try that with other stamped stainless-steel pumps and it will collapse the housing. The 346 Series is an exact footprint match of the 236 Series. Note: Repair Parts do NOT interchange between 236 & 346 Series.

Max PSI: 67
Max GPM: 180
Housing: 304SS
Size: 2" x 1.5" FPT Ports
Impeller: Polymer (PPS-GF) Enclosed, Max 6.3"
HP: 2HP to 7.5HP
Hertz: 60Hz
RPM/Enclosure: 3500RPM/ODP, TEFC, Explosion Proof
Motor Voltage: 3PH: 208-230/460V, 575V
Motor Voltage: 1PH: 115/230V

Manufacturer:

SKU: SC3490K104WPE

VIEW CATALOG PAGE E3652

$1,916.00 / EA

Qty:

i h

Centrifugal Pump, MotorPump Model 346, 304 Stainless Steel, 2IN x 1-1/2IN, 5.0IN Polymer Impeller, Viton Carbon-Ceramic Seal, 60Hz, 5HP, 3PH, 230/460V 3500RPM, TEFC Weg Premium Efficient Motor, JM Frame
