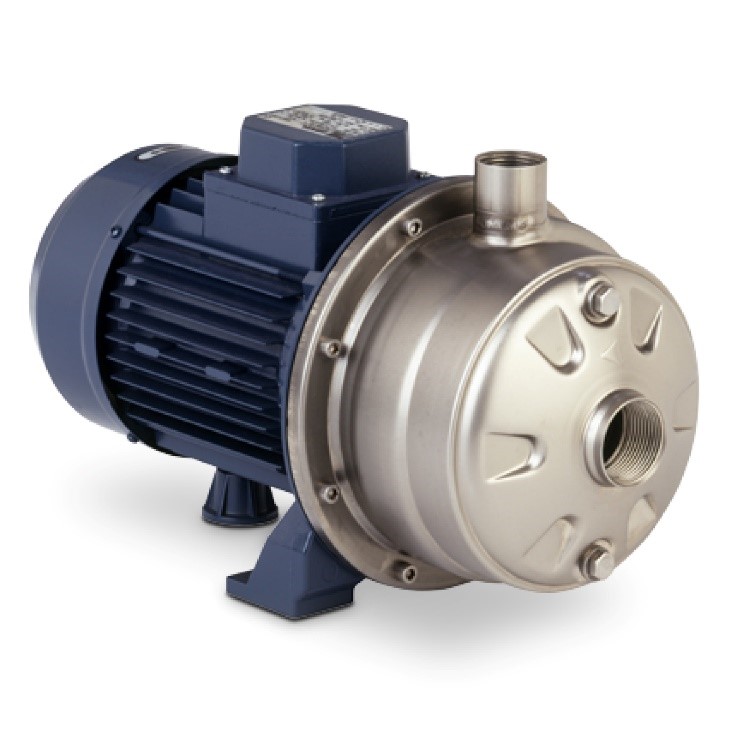

Centrifugal Pump, Transfer, 304 Stainless Steel, 66 GPM Max, 26 GPM @ 60 PSI, 1.5" x 1" FPT Ports, 5HP, 3PH, 230/460V, TEFC, 3500 RPM, Fluorocarbon Carbon Ceramic Seal, 6.20" Impeller

If you're in search of dependable, continuous duty performance, look no further than these end-suction centrifugal pumps from CAT Pumps. Built for the most demanding of liquid transfer applications, these 5 HP centrifugal pumps feature 304 stainless-steel pump bodies. The stainless-steel, liquid-end construction allows for heightened corrosion resistance and longer operating life of your centrifugal pump.

CAT's end suction pumps are "bulge formed" through a state-of-the-art manufacturing technique that eliminates harsh radiuses, increasing pump efficiency, part integrity, reliability, and longevity. The back-pullout design allows for simple maintenance of the impeller and seal, while the specially designed foot mount and centerline discharge reduces misalignment and promotes self-venting. Pumps are engineered to be close coupled horizontally or vertically to save space.

Pump motors are three phase TEFC. With a max flow rate of 66 GPM, these 5 HP direct drive centrifugal pumps are powerful enough to handle a wide range of liquid transfer applications!

Standard Features:

Close-coupled Design
304 Stainless Steel Liquid-end Construction
Bulge-formed components
Excellent wear resistance
Easy, compact installation
Mounting versatility
Low maintenance
Versatile material handling
High abrasion and corrosion resistance

Technical Specs:

Pump Type: Centrifugal
Pump Body Material: 304 Stainless Steel
Inlet Size / Type: 1.5" FPT
Outlet Size / Type: 1" FPT
Max GPM: 66 GPM
Max PSI: 105 PSI
Seal Material: Fluorocarbon/Carbon Ceramic
Impeller Diameter: 6.20"
Shaft Type: 304 Stainless Steel
Drive Type: Direct
Motor RPM Max: 3500
Voltage: 230/460 Volts
Drive Horsepower: 5 HP

Flows are based on liquids with 1.0 specific gravity (water). For liquids other than water contact us at 1-888-677-5054 for HP and chemical compatibility check.

Manufacturer:

SKU: CC3K532CT4

$1,825.00 / EA

Qty:

i h

Centrifugal Pump, Transfer, 304 Stainless Steel, 66 GPM Max, 26 GPM @ 60 PSI, 1.5" x 1" FPT Ports, 5HP, 3PH, 230/460V, TEFC, 3500 RPM, Fluorocarbon Carbon Ceramic Seal, 6.20" Impeller

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
