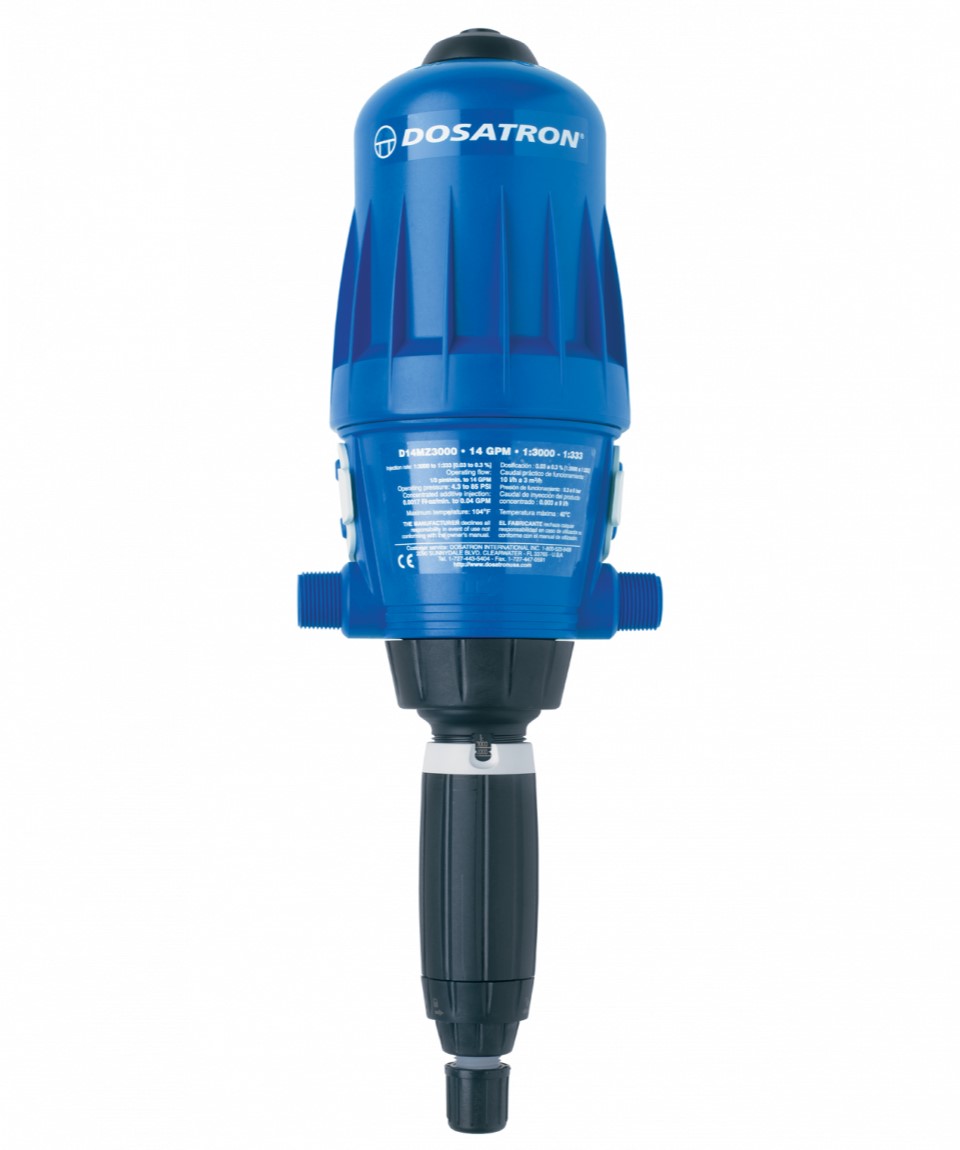

Chemical Injector, Poly Body, MAX 14 GPM, 85 PSI, 333:1 to 3000:1 Injection Ratio, 1/2" MPT, Viton® Seal

For Viscous Chemicals

Flow Rate: 14 GPM
Flow Range: 0.05 to 11 GPM
Pressure Range: 4.3 to 85 PSI
Port Size: 3/4" MPT Port
Injection Ratio: 333:1 to 3000:1
Injection Percent: 0.07 to 0.2%

Non-Electric, Self-Priming, Water Driven Chemical Injectors. Gives an accurate and uniform feeding of soaps, waxes or other chemicals into water lines!! Ideal for a wide variety of Industrial, Turf and Pest Control applications.

Water Driven, Constant Output, Easy to Adjust !
On Chemical use, always check Chemical Compatibility of Components before using. PVDF & Hastelloy construction available for corrosive chemicals. (Bypass models also available).

External Ratio Adjustment: Injection ratios can be easily changed with one external adjustment.
Easy to Use: No assembly required. Simple hookup can be completed without tools.
Minimal Operation Costs: Driven from existing water line pressure.
Low Maintenance: Yearly disassembly & seal replacement can be done in minutes.
Highly Accurate: Set it and forget it!! Injectors compensate automatically for any change in water pressure.
Portability: Units can be permanently mounted or portable and setup in minutes. Ideal for spot feeding or fungicide drenching.
Self-Priming: Up to 13' Lift.
Rated to 104 Deg. F.
Bypass Models also Available.

Manufacturer:

SKU: DOD14MZ3000VFDII

VIEW CATALOG PAGE E0390

$749.00 / EA
