ChemTraveller Portable Pumping System, 12 Volt, EPDM Internals

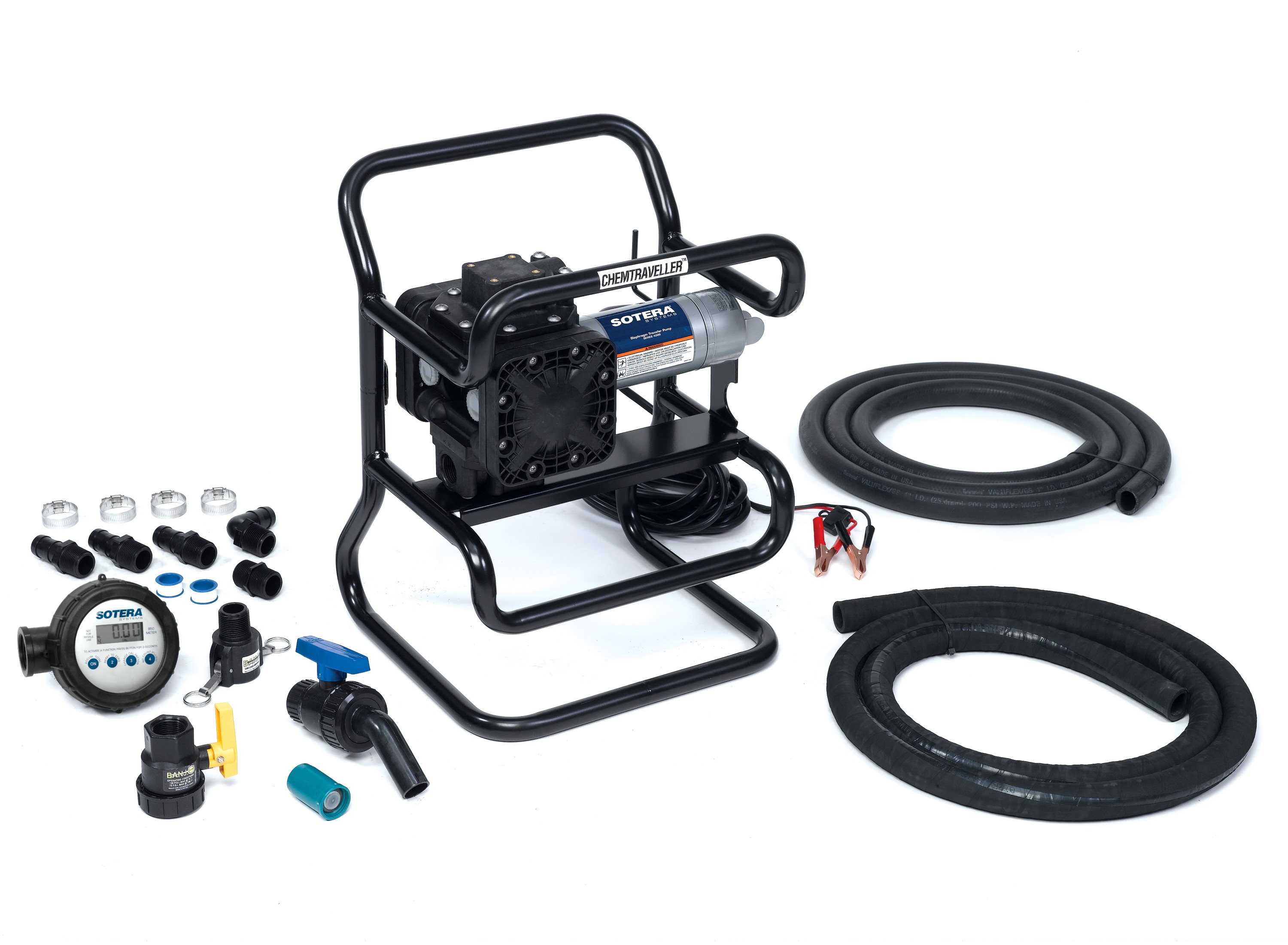

These models are portable self-contained Diaphragm Pump / Motor Units packaged in a rugged steel frame that is easily moved. Both models include a 1" x 14' EPDM discharge hose with camlock, 1" x 9' EPDM suction hose, ball valve nozzle and 825 digital meter.

Model 435 is 12-volt and includes 20 ft. battery cables.

Model 465X713 is 115-volt, LESS meter (FR825) and includes 2 wheels.

Pump Features:

Santoprene™ diaphragm for maximum chemical/corrosion resistance
Due to the unique reciprocating, spring driven, double diaphragm design – the pump is able to maintain constant pressure – regardless of the load. Motor amperage is reduced as back pressure increases because of this design feature
Fluorocarbon wetted seals
No internal bypass – pump automatically goes neutral when end-of-hose valve is shut off
Flow Rate: 15gpm max (water)
Pressure: 15PSI max
Max Lift: 10ft (water)
Temperature range: 130° max
Inlet/Outlet: 1" FPT

Note: Compatible with N-Serve
