    ChemTraveller Portable Pumping System, 12 Volt, Less Meter

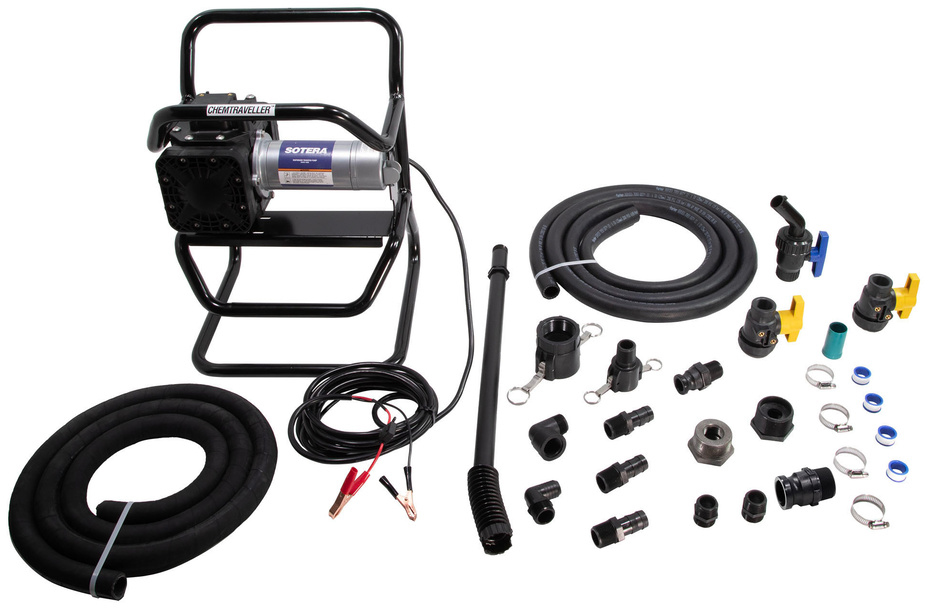

    These models are portable self-contained Diaphragm Pump / Motor Units packaged in a rugged steel frame that is easily moved. Both models include a 1" x 14' EPDM discharge hose with camlock, 1" x 9' EPDM suction hose, ball valve nozzle and 825 digital meter.

    Model 435 is 12-volt and includes 20 ft. battery cables.

    Model 465X713 is 115-volt, LESS meter (FR825) and includes 2 wheels.

    Pump Features:
    • Santoprene™ diaphragm for maximum chemical/corrosion resistance
    • Due to the unique reciprocating, spring driven, double diaphragm design – the pump is able to maintain constant pressure – regardless of the load. Motor amperage is reduced as back pressure increases because of this design feature
    • Fluorocarbon wetted seals
    • No internal bypass – pump automatically goes neutral when end-of-hose valve is shut off
    • Flow Rate: 15gpm max (water)
    • Pressure: 15PSI max
    • Max Lift: 10ft (water)
    • Temperature range: 130° max
    • Inlet/Outlet: 1" FPT

    Note: Compatible with N-Serve
    Manufacturer: Fill-Rite - Sotera
    SKU: FR435X713
    VIEW CATALOG PAGE E0273
    $1,167.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Pump Type Diaphragm
    Drive Electric Motor
    Motor HP 0.25
    Voltage 12

    Additional Information

    The SOTERA 400 Series Diaphragm Pumps have proven to be a winner on all types of hard to handle agricultural chemicals. The double acting diaphragm design will work well with viscous, corrosive, encapsulated, suspension and shear sensitive products. These self priming pumps operate well on cold mornings and can even run dry without damage. These pumps have a 5-year Warranty. Working parts run in oil. Wetted parts are polypropylene, santoprene and stainless steel. The 1/4 HP motor will flow 13 GPM on 12-volt and 16 GPM on 110-volt models. Easily adapted to all mini-bulks with various adapters.
