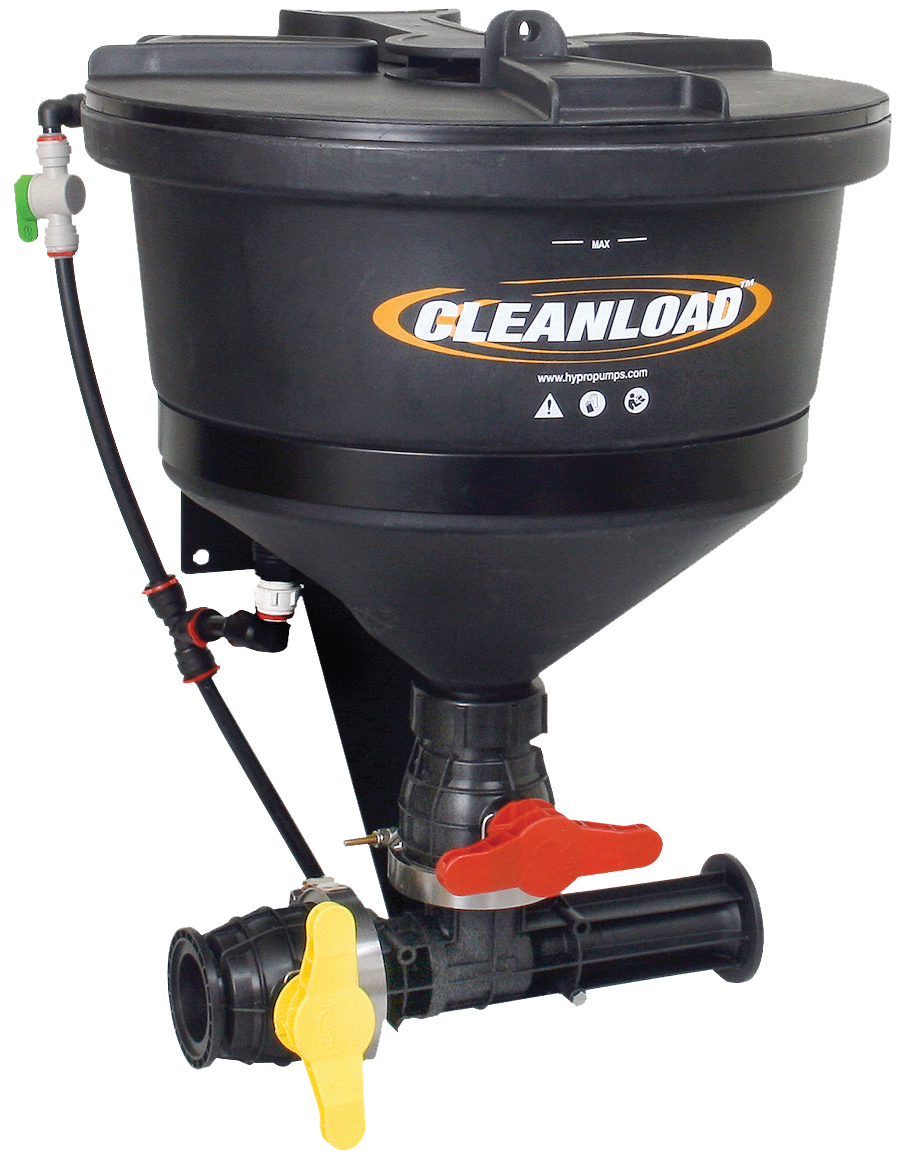

Cleanload™ Chemical Eductor Low Pressure, High Flow, Right Hand

For Safe Loading of Chemicals into Spray Tanks

Features:

Self-Contained Eduction System, which allows the use of one system to mix liquid and dry chemicals.
7.0 Gallon tank features a wide 16" lid, holds a full 51 lb. bag of dry material, and can be used to rinse larger 5.2 gallon jugs.
Educts 7 gallons of liquid in 10 seconds and a 51 lb. bag of AMS in 30 seconds.
CycloRinse™ System provides premium cleaning & meltdown of flowable powders with lid open for continuous fill operation.
Available in (3) Nozzle sizes designed for transfer pump, on-board sprayer and low flow roller/diaphragm applications.
Polypropylene Eductor features 220 universal flange ports and is available in either left-hand or right-hand flow configurations (Right-hand flow is illustrated. Left-hand models available).
Extends the life of transfer pumps by educting abrasive and corrosive chemicals downstream.
Bottle Rinse is included.

Part Number HY3376-0870
Appliction: Low Flow Roller / Diaphragm Pump
High Pressure / Low Flow
08 Nozzle Size

Part Number HY3376-1170
Appliction: On-Board Sprayer Pump
High Pressure / High Flow
11 Nozzle Size

Part Number HY3376-1670
Appliction: Transfer Pump
Low Pressure / High Flow
16 Nozzle Size
