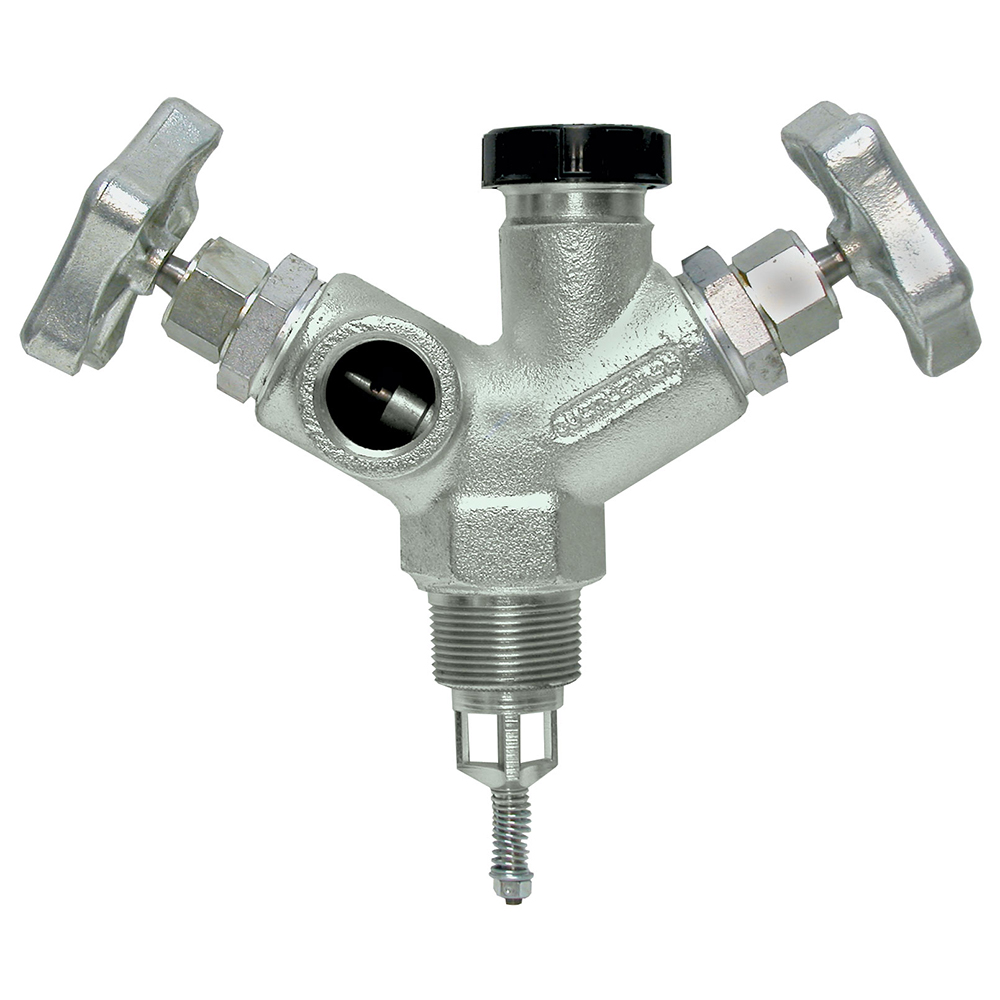

    Combination Filler & Withdrawal Valves for NH3, Continental

    The Continental A1505 and B1205 Combination Filler & Liquid Withdrawal Valve provide  new safety features for  combination valves. The old automatic style back-flow check filler connection is replaced with a positive manual shut-off stem and seat. The 1" female pipe thread liquid withdrawal outlet is equipped with a by-pass stem assembly for the protection of hose or metering device.

    FEATURES:

    • Stainless Steel Stem - precision ground and polished.
    • Field-proven nylon seat in swivel poppet retainer.
    • "Teflon" V-ring stem packing for positive seal.
    • All-steel excess flow check for use with NH3 and additives.
    • Ductile iron body - 400 lb WOG.
    • Component parts interchangeable with all A-1200 Series valves.


    NOTE: The hand wheel area of this valve requires a 5-1/2" swing radius clearance for installation.

    Manufacturer: Continental NH3 Products
    Part No. Catalog Style Body Material Port Size A Port Type A Port Size B Port Type B Price
    Picture of Combination Filler & Withdrawal Valve for NH3, 1-3/4" Acme Filler Connection, 1" FPT  Withdrawal Outlet, 1-1/4" MPT
    SKU: CNB1205 Catalog: E0436 Style: Fill Body Material: Ductile Iron Port Size A: 1-1/4" Port Type A: MPT Port Size B: 1" Port Type B: FPT Price:
    Save!
    • 5% on 10
    $289.00 / EA
    i h
    Picture of Valve, Combination Fill & Withdrawal, 1-1/4 MPT
    SKU: CNA1505 Catalog: E0436 Style: Fill Body Material: Ductile Iron Port Size A: 1-1/2" Port Type A: MPT Port Size B: 1-1/4" Port Type B: FPT Price:
    Save!
    • 5% on 10
    $492.00 / EA
    i h
