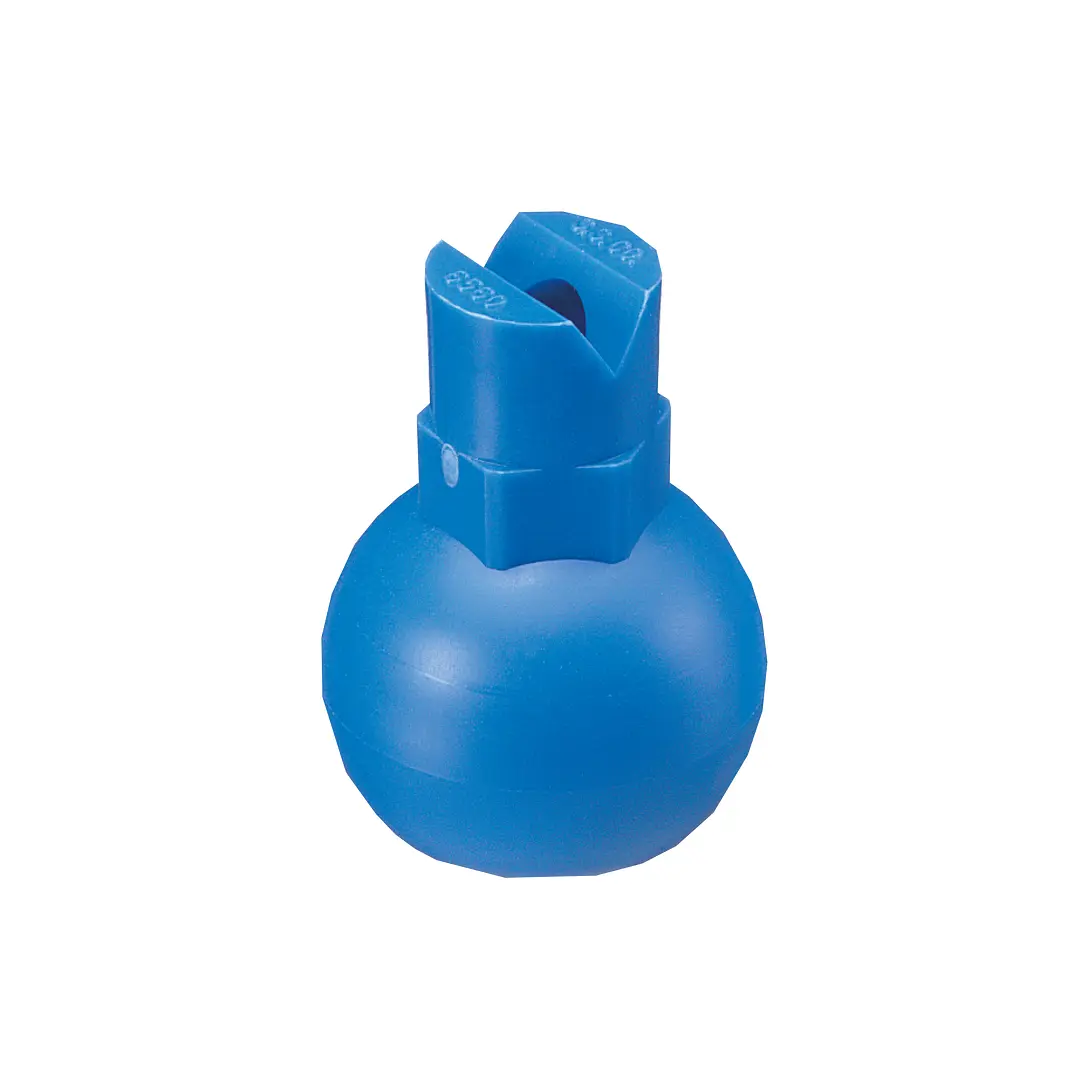

CT Series Flat Fan Nozzles

For Use with Adjustable Ball Nozzle Assemblies

Chemically resistant, for rinse, soap or wax arches, de-icing spray bars or industrial applications. Designed for adjustable direction of nozzles for the most effective coverage. Bodies are available with 1/4", 3/8" or 1/2" MPT threads or with a clip-type clamp for 1" through 2" pipe.

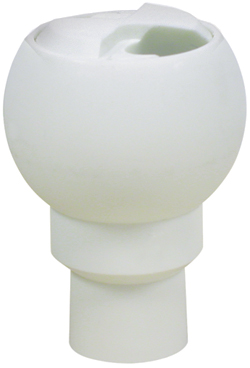

Nozzles are available in two styles: Ball/Nozzle combinations (CA & CT numbers) or ball joints only with a threaded ports for use with existing 1/4" or 3/8" MPT nozzles.

For complete assemblies, order the body of choice (cap included) and the nozzle type and size required or the ball only if using your own tips. Threaded bodies are rated to 125 psi. Clip-eyelet bodies are rated to 60 psi. Both will handle temperatures to 180 Deg. F. Plastic parts are polypropylene for excellent chemical resistance.
† Specify Full Number from charts in link at top of page:

Manufacturer:

Part No.	Catalog	Body Material	Connection	Max PSI	Max Temp (Deg. F)	Color	Spray Pattern	Spray Angle	Series	Price
SKU: SSCT8040PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Green	Spray Pattern: Flat Fan	Spray Angle: 80 Deg	Series: CT	Price: Save! 10% on 50 $4.75 / EA	i h
SKU: SSCT4040PP	Catalog: E1217	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Green	Spray Pattern: Flat Fan	Spray Angle: 40 Deg	Series: CT	Price: Save! 10% on 50 $4.55 / EA	i h
SKU: SSCT5020PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Light Blue	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.55 / EA	i h
SKU: SSCT15100-PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Brown	Spray Pattern: Flat Fan	Spray Angle: 15 Deg	Series: CT	Price: Save! 10% on 50 $5.30 / EA	i h
SKU: SSCT1550-PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Yellow	Spray Pattern: Flat Fan	Spray Angle: 15 Deg	Series: CT	Price: Save! 10% on 50 $4.70 / EA	i h
SKU: SSCT2530PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Orange	Spray Pattern: Flat Fan	Spray Angle: 25 Deg	Series: CT	Price: $4.55 / EA	i h
SKU: SSCT40100PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Brown	Spray Pattern: Flat Fan	Spray Angle: 40 Deg	Series: CT	Price: Save! 10% on 50 $3.90 / EA	i h
SKU: SSCT4020PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Light Blue	Spray Pattern: Flat Fan	Spray Angle: 40 Deg	Series: CT	Price: Save! 10% on 50 $4.70 / EA	i h
SKU: SSCT4030PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Orange	Spray Pattern: Flat Fan	Spray Angle: 40 Deg	Series: CT	Price: Save! 10% on 50 $4.55 / EA	i h
SKU: SSCT50100PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Brown	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.55 / EA	i h
SKU: SSCT5030PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Orange	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.55 / EA	i h
SKU: SSCT5040PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Green	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.65 / EA	i h
SKU: SSCT5050PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Yellow	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.75 / EA	i h
SKU: SSCT5060PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Blue	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: $4.55 / EA	i h
SKU: SSCT5070PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Red	Spray Pattern: Flat Fan	Spray Angle: 50 Deg	Series: CT	Price: Save! 10% on 50 $4.70 / EA	i h
SKU: SSCT6530PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Orange	Spray Pattern: Flat Fan	Spray Angle: 65 Deg	Series: CT	Price: Save! 10% on 50 $3.90 / EA	i h
SKU: SSCT6540PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Green	Spray Pattern: Flat Fan	Spray Angle: 65 Deg	Series: CT	Price: Save! 10% on 50 $4.80 / EA	i h
SKU: SSCT80100PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Brown	Spray Pattern: Flat Fan	Spray Angle: 80 Deg	Series: CT	Price: Save! 10% on 50 $4.45 / EA	i h
SKU: SSCT8010PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Beige	Spray Pattern: Flat Fan	Spray Angle: 80 Deg	Series: CT	Price: Save! 10% on 50 $4.70 / EA	i h
SKU: SSCT8070PP	Catalog:	Body Material: Polypropylene	Connection: MPT	Max PSI: 125	Max Temp (Deg. F): 180	Color: Red	Spray Pattern: Flat Fan	Spray Angle: 80 Deg	Series: CT	Price: CALL FOR PRICE
SKU: SSCTPLUG	Catalog:	Body Material:	Connection:	Max PSI:	Max Temp (Deg. F):	Color:	Spray Pattern:	Spray Angle:	Series:	Price: $5.90 / EA	i h
