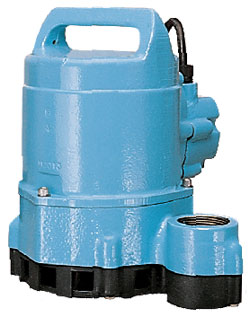

Effluent Sump Pump, 1/2 HP - 115 Volt Motor, Rated to 200F, 73 @ 5' Max Flow, No Auto Switch

Cast Iron • 115 Volt

High Temperature / Chemical Resistant, Rated to 200F. Designed for pumping dirty water with solids handling capabilities up to 3/4" diameter. Completely submersible design.

Model HT10E-CIM:

Manual pump with Viton® Seal.
Rated to flows up to 73 GPM (40 GPM at 20' height).
Shut-off height is 30'.
Handles solids up to 3/4".
Motor is 1/2 HP, 115 volt with 15' power cord.
Discharge port is 1-1/2" FPT.
Dimensions: 11-1/4" H x 9-5/8" L x 6-3/4" W.

Manufacturer:

SKU: GJHT10E-CIM

VIEW CATALOG PAGE E0256

$888.00 / EA

Qty:

i h

Specifications

Products specifications

Body Material	Cast Iron
Seal Material	Viton®
Impeller Material	Nylon
Max Diam. Solids	3/4"
Length	9-5/8"
Width	9-1/8"
Height	10-1/4"
Max GPM	73
Max Temp (Deg. F)	200
Drive	Electric Motor
Motor HP	0.5
Phase	1
Voltage	115

Additional Information

Applications include:
• De-watering
• Construction sites
• Sewer/Septic lines
• Fountains/waterfalls
• Elevator Pits, Car Wash Pits and many more.

Standard Features include:
• Cast iron pump housings with protectiveepoxy coating for corrosion and rust resistance.
• VortexNylon impeller
• Mechanical seals with (stainless steel spring,Nitrile, Buna orViton® parts, carbon and ceramic or Ni-resist faces).
• Oil-filled (mineral oil) motor housings for lifetime lubrication and rapid heat dissipation.
• All motors are single phase (three available on some models).
• Thermal overload protection.
• UL listed, CSA approved.

Check pump components for compatibility if chemical solutions are to be removed.

Viton® is a registered trademark of DuPont Performance Elastomers
