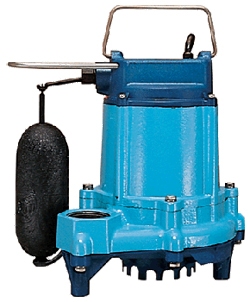

Effluent Sump Pump, 1/3hp - 115v Motor, 53 @ 5' Max Flow, Auto Switch

Cast Iron • 115 Volt

Designed for pumping dirty water with solids handling capabilities up to 3/4" diameter. Completely submersible design.

Model 6E-CIASFS

Rated to 140? F
Flow rates to 50 GPM (50 GPM @ 10' height).
Shut-off height is 28'.
Motor is 1/3 HP, 115 volt with 25' power cord.
Discharge port is 1-1/2" FPT.
Handles solids up to 1/2".
Seal is Buna.
With attached float switch for "on" at 7-10" and off at 2-5" liquid levels.
Dimensions: 11-1/4" H x 8-3/4" L x 8-1/2" W.

Manufacturer:

SKU: GJ6E-CIASFS

VIEW CATALOG PAGE E0256

$348.00 / EA

Qty:

i h

Specifications

Products specifications

Body Material	Cast Iron
Seal Material	Buna
Impeller Material	Nylon
Max Diam. Solids	1/2"
Length	10-1/2"
Width	8-1/2"
Height	10-1/4"
Max GPM	53
Drive	Electric Motor
Motor HP	0.33
Phase	1
Voltage	115
Manufacturer Part Number	506804

Additional Information

Applications include:
• De-watering
• Construction sites
• Sewer/Septic lines
• Fountains/waterfalls
• Elevator Pits, Car Wash Pits and many more.

Standard Features include:
• Cast iron pump housings with protectiveepoxy coating for corrosion and rust resistance.
• VortexNylon impeller
• Mechanical seals with (stainless steel spring,Nitrile, Buna orViton® parts, carbon and ceramic or Ni-resist faces).
• Oil-filled (mineral oil) motor housings for lifetime lubrication and rapid heat dissipation.
• All motors are single phase (three available on some models).
• Thermal overload protection.
• UL listed, CSA approved.

Check pump components for compatibility if chemical solutions are to be removed.

Viton® is a registered trademark of DuPont Performance Elastomers
