Explosion-Proof Motor Pumps for Petroleum

Compatible with Gasoline, Kerosene, Jet Fuel (Please call) & Avgas

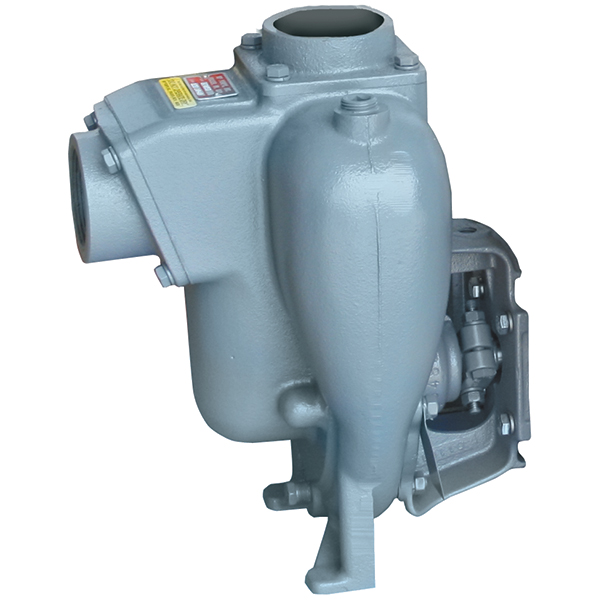

PG Model is available in Pedestal mount or Close Coupled mount to C Face Class I Group D Explosion proof electric motors.

Ductile Iron volute and adapter.
The open impeller is cast iron.
Aluminum wear plate.
Type 2 mechanical seal is carbon, Viton® and silicon carbide.
Self-Priming.

Note: If pumps are needed for kerosene or jet fuel - Call for PGJ pump pricing.
*Use PG30A with 20 HP, 3450 RPM, Explosion-Proof Motor.

**Use Pedestal Pumps with Explosion-Proof Motors

Manufacturer:

Part No.	Catalog	Description	Price
SKU: MX35639	Catalog: E0963	Description: Petroleum Transfer Pump / Motor Unit, PetrolMaxx Series 8, 150 Max. GPM, 100 GPM @ 20 PSI, 1.20 Max. Spec. Gravity, 2" Ports, 3 HP / 3 PH, 230/460 Volts, Close Coupled	Price: $3,522.00 / EA	i h
SKU: MX36048	Catalog: E0963	Description: Petroleum Transfer Pump / Motor Unit, PetrolMaxx Series 15, 320 Max. GPM, 275 GPM @ 20 PSI, 0.95 Max. Spec. Gravity, 3" Ports, 5 HP / 3 PH, 230/460 Volts, Close Coupled	Price: $6,167.00 / EA	i h
SKU: MX36876	Catalog: E0963	Description: Petroleum Transfer Pump / Motor Unit, PetrolMaxx Series 8, 150 Max. GPM, 100 GPM @ 20 PSI, 1.00 Max. Spec. Gravity, 2" Ports, 2 HP / 1 PH, 115/230 Volts, Close Coupled	Price: $3,989.00 / EA	i h
SKU: MX37957	Catalog: E0963	Description: Petroleum Transfer Pump / Motor Unit, PetrolMaxx Series 15, 320 Max. GPM, 275 GPM @ 20 PSI, 0.80 Max. Spec. Gravity, 3" Ports, 5 HP / 1 PH, 115/230 Volts, Close Coupled	Price: $8,020.00 / EA	i h

Additional Information

By classifying various fuels into three distinct segments, MP Pumps can recommend that its design is capable of handling the specific fuel groups without incurring the additional cost associated with "one pump for all fuels".
