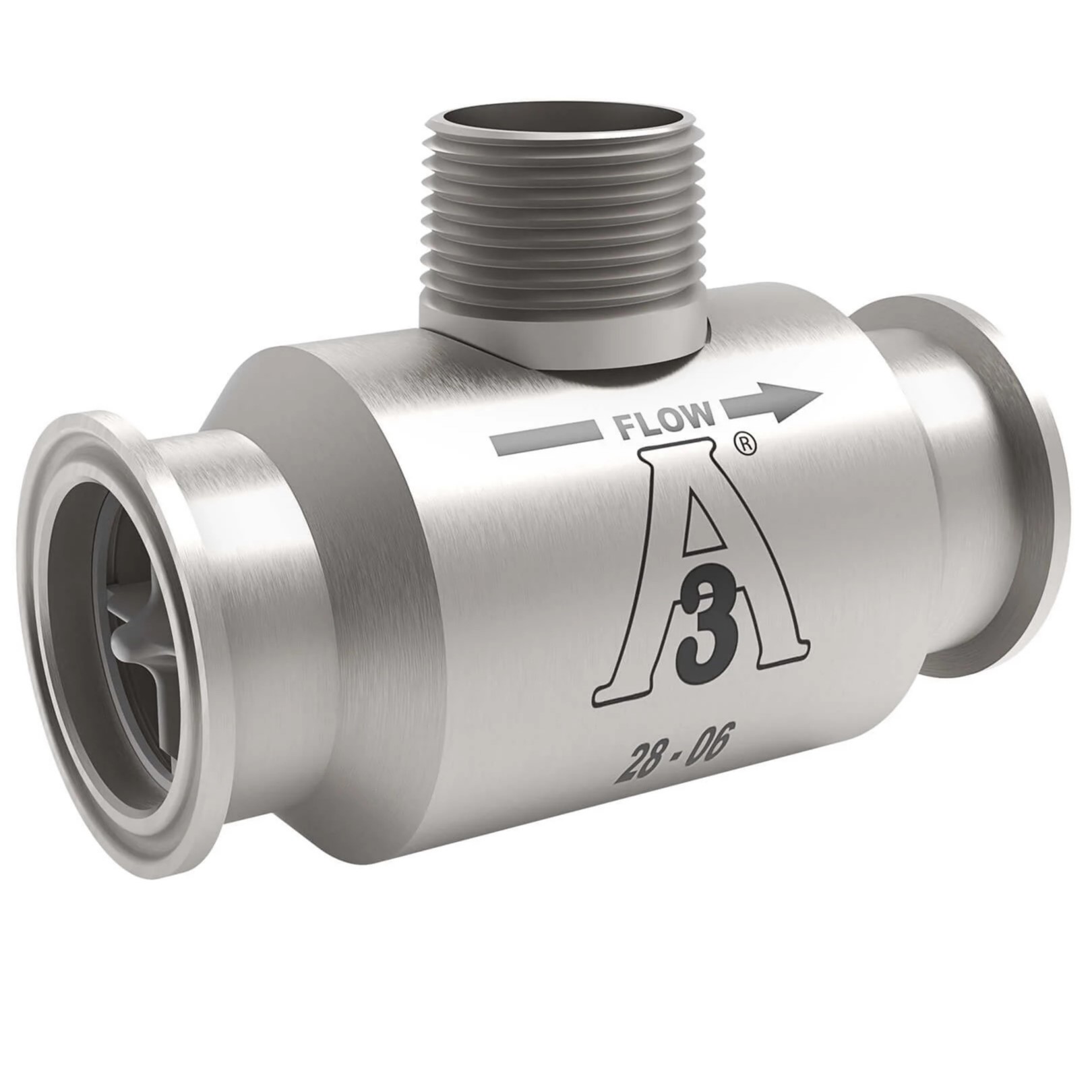

Flowmeter, 1" Meter Size with 1-1/2" Tri-Clamp Sanitary Ends, 316SS Body - Ra32 Finish, CD4MCu Stainless Rotor, PEEK Bushings/Bearings, Max 225F Temp, 3-A Certified, Standard Style Instrument Mount, 6.7 - 67 GPM

The GSCPS FLOMEC® Series is a 3-A Certified Sanitary Flow Meter line. The G Series High Precision Meter is the most accurate of all FLOMEC Turbine Meters. Common
applications include, but not limited to, Fuels, Batching, Food & Beverage, Process Controls, Petro Chemicals, Pharmaceuticals, Irrigation, High Water Volume Mixing, High
Precision/High Pressure, and Chemical Feed Lines. Construction: 316SS Body, CD4MCu Stainless Rotor, PEEK Bushing/Bearings. Accuracy: ±.5% and Repeatability
of ±.1%. Note: Pressure rating is limited by the Tri-Clamps used in the plumbing – consult clamp specifications to determine pressure range for respective meter size.

Meets Clean in Place (CIP), Steam in Place (SIP), Clean Out of Place (COP) Requirements
3-A Certified
Operating Temperature: -100°F to 225°F (SIP up to 1 hour at 285°F)
Ideal for low-viscosity fluids (<100cP)
Available in GSCPS Standard (MPT Module Connection) with 2-wire magnetic pickup (3-wire & local display options also available)
Polished Ra 32 Finish
Output in either Sine Wave or Square Wave (100-1000Hz)
Flow Meters for milk and milk products 3A Number 38-04
Factory Calibration in gallons or liters

SKU: GIGSCPS-100

VIEW CATALOG PAGE E3551

$1,975.00 / EA

Qty:

i h

Flowmeter, 1" Meter Size with 1-1/2" Tri-Clamp Sanitary Ends, 316SS Body - Ra32 Finish, CD4MCu Stainless Rotor, PEEK Bushings/Bearings, Max 225F Temp, 3-A Certified, Standard Style Instrument Mount, 6.7 - 67 GPM

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
