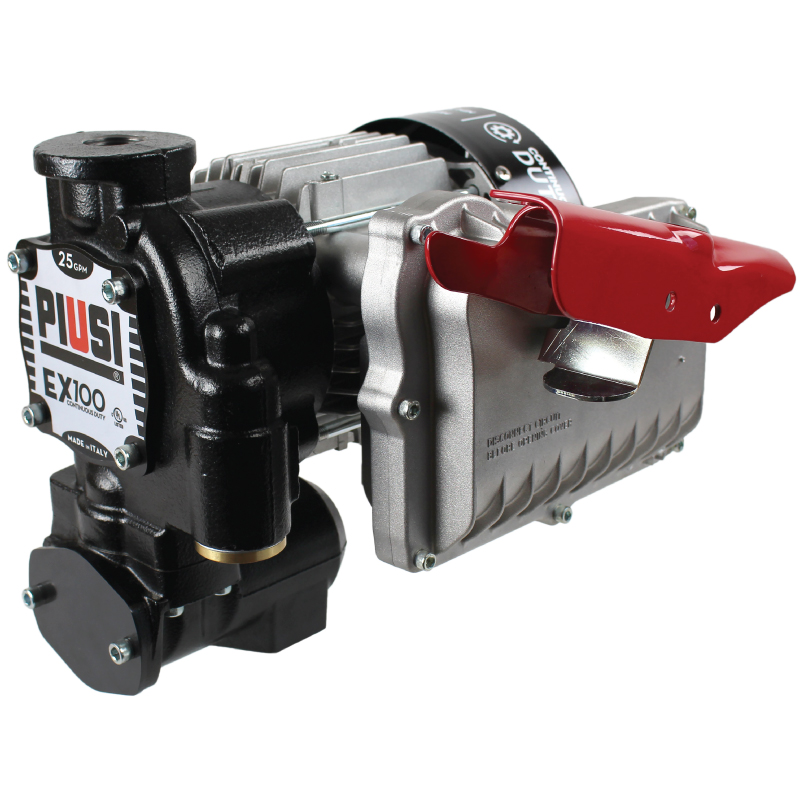

Fuel Transfer Pump Only, EX100 Models, 25 GPM, 7.5 Amps, 120V/60Hz

The Piusi EX100 Fuel Transfer Pump features a UL and cULus certification. This fuel pump unit was designed to last longer and ensure higher flow rates. Higher flows are produced at the nozzle, by using a more efficient motor design that boosts spring-loaded vanes. The EX100 fuel pump is able to produce high flow rates at the nozzle due to the innovative design of the continuous-duty motor. This 25 GPM fuel transfer pump is best suited in the Agricultural, Construction/Contracting, Municipalities and Marine industries. The EX100's continuous duty-cycle makes it an excellent choice for fueling large machinery and fleets of vehicles.

A safe and reliable option for fuel transfer in potentially explosive environments. The Piusi EX100 fuel transfer pump is ideally used to deliver fuel directly to fleet vehicles, generators, heavy machinery and equipment, Over-the-Road (OTR) semi-tractors, fuel tanks, farm equipment and much more!

Features:

Spring Loaded, Reinforced Vanes with Grooved Rotors
Improves Efficiency and Allows for Smaller, more Compact Assembly
Continuous Duty Cycle due to Fan-Cooled Motor
Grooved Rotors Allow more Fuel to be Displaced per Revolution
Flanged Components Eliminate Need for Thread Sealant

Technical Specifications:

1750 RPM Motor
25 GPM Max Flow – At the Nozzle (Thru 1" x 13' Hose & Automatic Nozzle)
Designed to Transfer Flammable Fluids of Any Type
Viton Seals®
120V Continuous-Duty Motor
1" Discharge Plumbing is Recommended on High-Flow EX Series Pumps
Compatible Fluids: Diesel, Kerosene, Petrol, Alcohol Mixed Max 15%, AvGas 100/100LL, Jet A/A1 - Aspen 2/4
Available in only 120V AC Motors
1-1/4" FPT Inlet / 1" FPT Outlet
Max Amp Draw: 7.5 amps

2 Year Limited Warranty

Manufacturer:

SKU: PUEX100-PO

VIEW CATALOG PAGE E1284

$1,035.00 / EA

Qty:

i h

Fuel Transfer Pump Only, EX100 Models, 25 GPM, 7.5 Amps, 120V/60Hz

Shipping costs will be invoiced at time of shipment for all orders shipping to locations outside of the contiguous United States including Hawaii and Alaska. If you require a freight quote, please call us at 1-888-677-5054.
