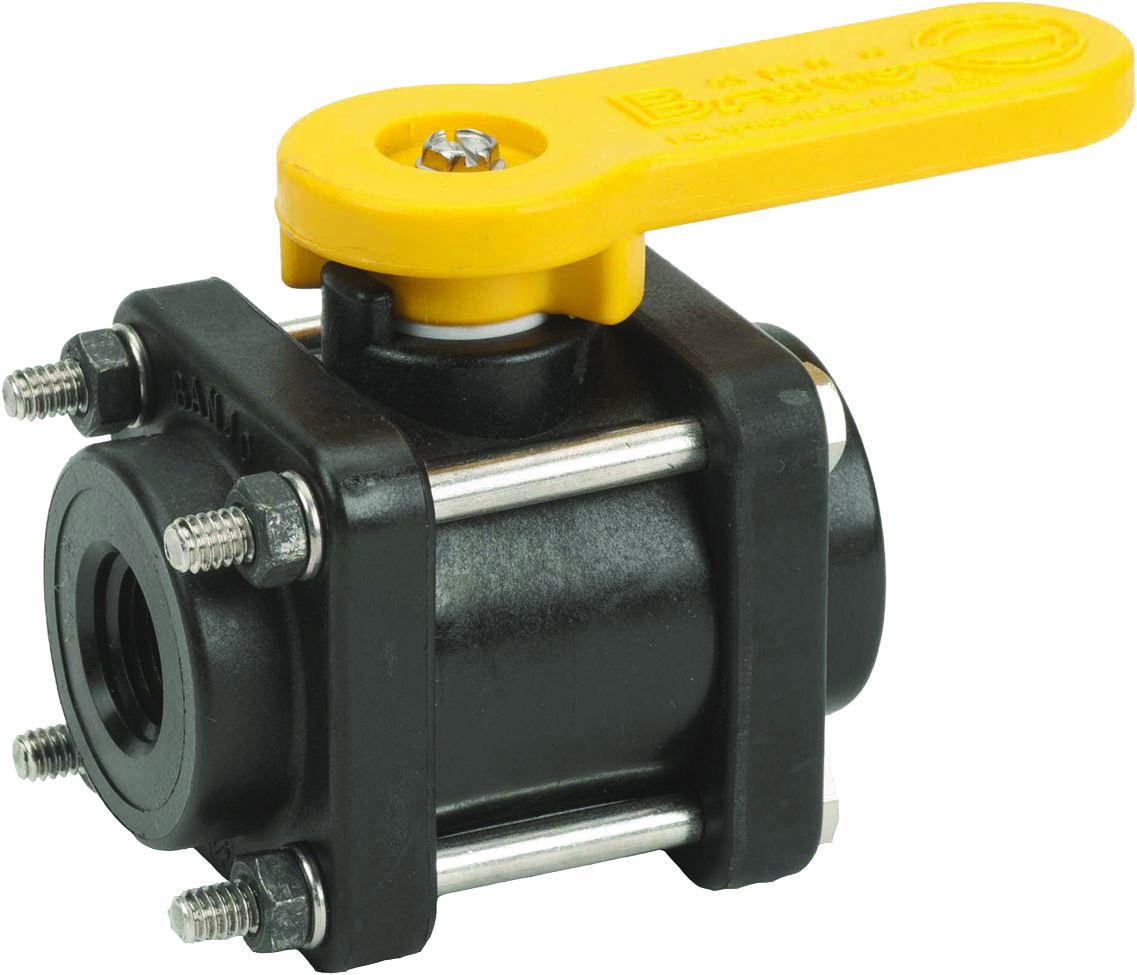

    Banjo 1/2" Polypropylene Ball Valve, 1/2" Port Size, 3/4" Opening Thru Ball



    Banjo 1/2-inch ball valve, 1/2 inch female NPT ports.

    • Stainless Steel Bolts
    • Viton® Seals
    • 100% Teflon Seats





    • 1/2" - 2": 150 PSI, 4": 75 PSI, 3": 100 PSI.
    • Precision molded in polypropylene reinforced with fiberglass for additional strength.
    • Self-aligning ball moves freely against the Teflon® seals for smooth operation. The valve opens and closes with very little pressure on the handle.
    • Ball is diamond turned, after molding, to make it spherically perfect, which provides precise contact between ball and seats.
    • Viton® "O" ring stem seal. S.S. Bolts.
    • Teflon® self-lubricating stem bushings and seats cannot stick or bind.



    Manufacturer: Banjo Valves & Fittings
    Save!
    • 5% on 24
    $35.00 / EA
    i h
    Ship to

    DELAY MY SHIPMENT until all in-stock items AND backordered items are available in one warehouse before shipping. (You will receive only one freight bill if you choose this option).

    *

    Ship my in-stock items now, ship my backordered items when they become available. (You will be billed for each shipment).

    *
    *
    *
    Shipping Method
    Name
    Estimated Delivery
    Price
    No shipping options
    Products specifications
    Operation Type Manual
    Flow Style Full Port
    Body Material Polypropylene
    Port Size A 1/2"
    Port Size B 1/2"
    Opening Thru Ball 3/4"
    Port Type A FPT
    Port Type B FPT
    Max PSI 150
    Manufacturer Part Number V050

    Additional Information

    Viton® is a registered trademark of DuPont Performance Elastomers
