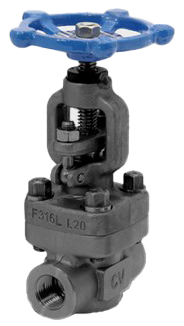

Gate Valve, Steam Rated, 1" FPT Ends, Forged Steel

The 28 Series Gate Valve line from Chicago Valves & Controls is designed for higher temperature/pressure applications like steam. The series is Class 800 rated and is available in either forged steel or 316L stainless-steel. The 28 Series valve line has a rising stem design with a bolted bonnet that houses the graphite valve packing. Valves are standard with threaded NPT ends but available in socket weld or thread x socket weld – call for details.

Technical Data:

Body Material: Forged Steel or 316SS
Stem: 316LSS
Packing: Graphite
Pressure Rating Max: 1975PSI
Temperature Rating Max: 850°F
Inlet/Outlet: NPT or Socket Weld
Standards: Test API 598 / Basic Design API 602

Manufacturer:

SKU: GNTE800-100

VIEW CATALOG PAGE E3619

$72.00 / EA
